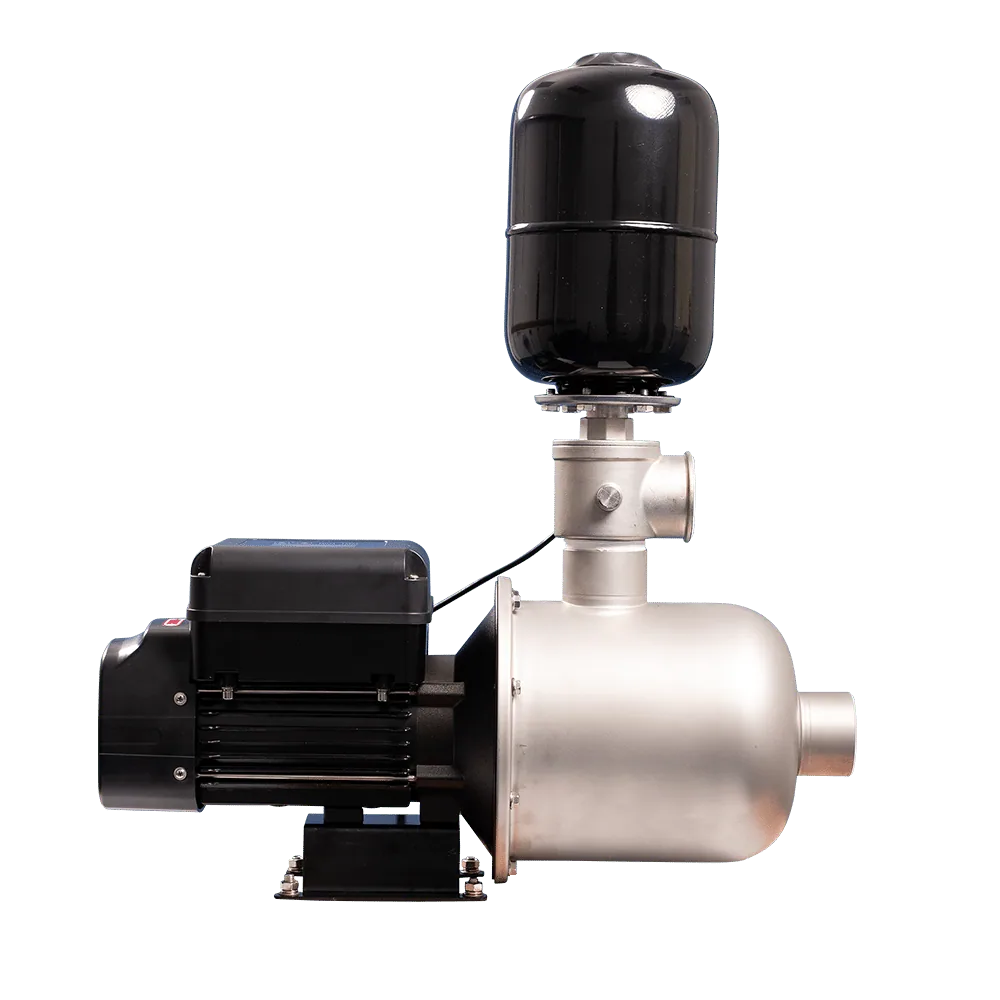

BWD5-40 variable speed booster pump, 1.1 kW, 85 m max head

BWD5-40 booster pump with pressure transducer and 1.25" ports

1.1 kW Variable Speed Booster Pump, 85 m Max Head, BWD5-40

Name: 1.1 kW Variable Speed Booster Pump, 85 m Max Head, BWD5-40
SKU: KMN-WATR-0381
Price: 8792.00 ZAR
Availability: InStock

SKU KMN-WATR-0381

A 1.1 kW variable speed booster pump with built-in drive, holding constant pressure for homes, lodges and irrigation across South Africa.

R8 792,00

Constant pressure from a pressure transducer and built-in drive

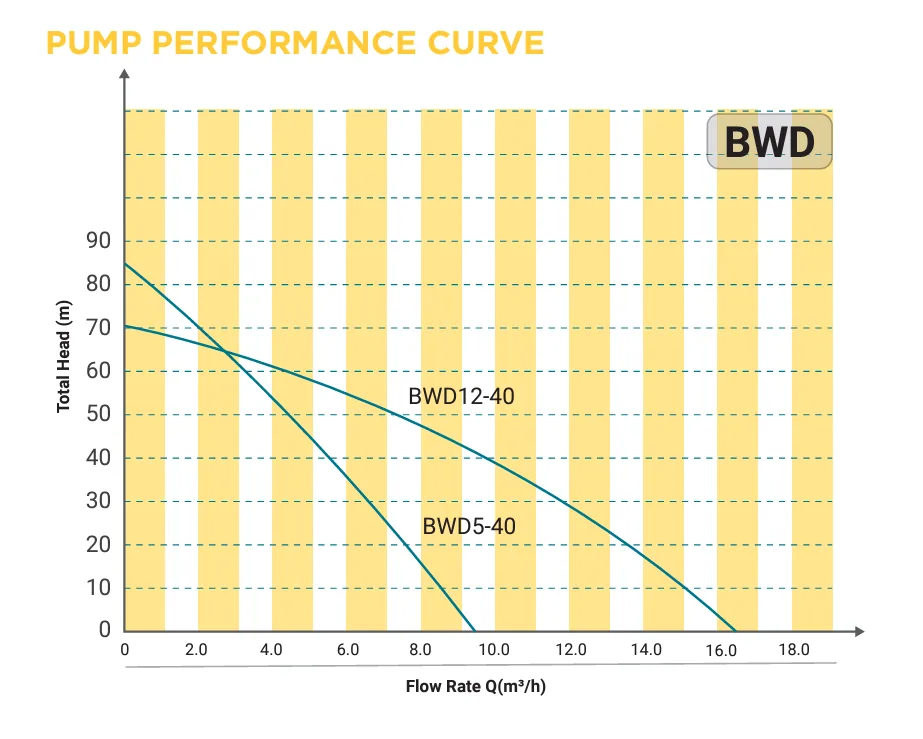

Max head 85 m, max flow 9.5 m³/h, 1.25″ ports
Dry-run, over-current, over/under voltage and overload protection
Pre-wired with a 3-point plug

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Model	BWD5-40 variable speed booster
Flow rate	Max 9.5 m³/h, rated 5 m³/h
Max head / pressure	85 m max, 45 m rated
Voltage / phase	230 V single-phase (drive 200 V ± 20%, 50/60 Hz)
Power	1.1 kW
Max speed	5000 rpm
Inlet / outlet	1.25" x 1.25" (32 mm)
Self-priming	No, prime as per the installation diagrams
Duty cycle	Automatic start/stop, constant pressure
Fluid compatibility	Clean water, 2 to 80 °C
Max ambient temperature	40 °C
Pipework	Rigid, rated to 6 bar
Net weight	14 kg
Shipping weight	16 kg
Dimensions	430 x 240 x 330 mm

Description

Overview

The BWD5-40 is a variable speed booster pump with the drive built in. A pressure transducer watches the line and the pump changes speed to hold constant pressure, so the shower stays steady when the garden tap opens.

Power is 1.1 kW on a 230 V single-phase supply (the drive accepts 200 V ± 20%), with 85 m maximum head and 45 m at the rated 5 m³/h. Maximum flow is 9.5 m³/h and top speed is 5000 rpm. It arrives pre-wired with a 3-point plug, has a 3-second restart delay and an auto-rotation timer that turns the pump over to keep the bearings free. The manufacturer quotes savings of up to 80% in energy against a traditional fixed-speed set-up. Compare it with the 1.1 kW i-Prez booster system or the smart Wi-Fi RUC-1100.

Key features

Constant pressure even with several outlets open
Automatic start and stop, low noise
Protection against dry run, over-current, over/under voltage, overload and abnormal pressure
3-second restart delay and auto-rotation timer
Drain screw in the casing for frost protection

Where it works

It suits clean water duties: houses, guest lodges and offices, drinking water supply and non-potable pipework, and irrigation lines, with water from 2 to 80 °C. Fit it in a ventilated, undercover spot away from sun, rain and irrigation spray. Use rigid suction and discharge pipe rated to 6 bar, keep the suction airtight, and earth the pump. In frosty Highveld, Free State and Eastern Cape winters, drain the casing when temperatures fall below 0 °C. Do not use it on muddy or gritty water. See more in our water booster pumps.

What’s in the box

BWD5-40 variable speed booster pump, 1.1 kW
Pre-wired mains lead with 3-point plug

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, with regular runs to Johannesburg, Pretoria, Gqeberha, East London, Bloemfontein and Cape Town. Delivery is charged by total order weight: up to 30 kg R550, 30 to 60 kg R950, 60 to 100 kg R1,450, and over 100 kg on quotation. At a shipping weight of 16 kg this item falls in the up to 30 kg (R550) band, and orders of R20,000 or more (VAT incl.) ship free.

Ask us for the warranty terms on this model.

Questions about this product

Can it pump dirty borehole water?

No. It is designed for clean water only. Muddy water or water with suspended solids shortens the life of the unit, so filter or settle borehole water first.

Can I use an extension cable?

Avoid it where you can and do not strain the cable. If you must extend, use an approved extending plug adapter, and keep the pump earthed and under cover.

Do you deliver to Gqeberha and East London?

Yes. We run our own trucks from Polokwane to all nine provinces in 1 to 3 days. At about 16 kg it falls in the up to 30 kg band at R550, and orders of R20,000 or more ship free.
