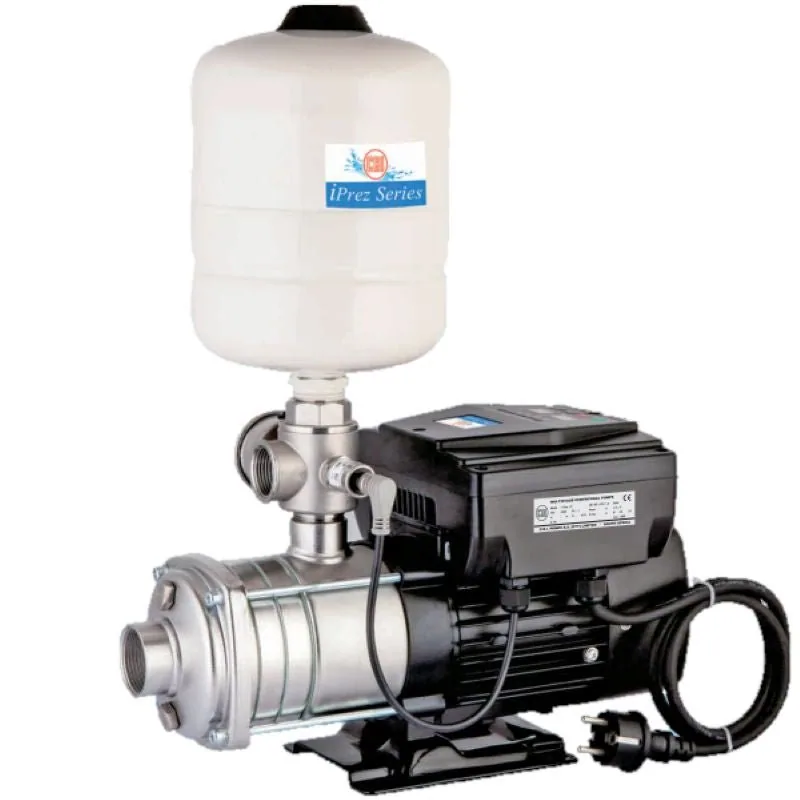

1.1 kW Variable Speed Booster Pump System, i-Prez, 60 m Head
SKU KMN-WATR-0204
A 1.1 kW i-Prez constant-pressure booster system with built-in variable speed drive and pressure tank, for homes and small sites, delivered across South Africa.
R8 823,65
- Holds steady pressure at every tap by changing pump speed to match demand
- Complete set: multistage pump, drive, pressure tank, 5-way connector with non-return valve
- Up to 16 m³/h and 60 m head, 1 to 9 bar adjustable
- Dry-run, overload, unbalanced-voltage and short-circuit protection
Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details
Specifications
| Flow rate | Up to 16 m³/h |
|---|---|
| Max head / pressure | Up to 60 m head, pressure adjustable 1 to 9 bar |
| Voltage / phase | 220 V, single phase, 50/60 Hz |
| Power | 1.1 kW |
| Inlet / outlet | On request (DN25 to DN40 across the series) |
| Self-priming | Not stated, keep the pump flooded |
| Duty cycle | On request |
| Fluid compatibility | Clean water, 0 to 70 °C |
| Drive output | Variable frequency, 20 to 50 Hz or 20 to 60 Hz |
| Pressure transmitter | 24 V, 4 to 20 mA |
| Protection | Dry run, overload, unbalanced voltage, short circuit |
| Ambient temperature | 0 to 40 °C |
| Net weight | 14.5 kg |
| Shipping weight | 15.9 kg |
| Dimensions | On request |
Description
Overview
The 1.1 kW i-Prez booster pump system holds water pressure constant by changing the pump speed to match demand, so a second tap or a hosepipe does not drop the pressure at the shower. A pressure transmitter reads the line, and the built-in variable speed drive speeds the motor up or slows it down to hold your set pressure.
It arrives as a complete set: a horizontal multistage pump with stainless steel wetted parts, the drive, a pressure tank, a 5-way connector with non-return valve, a pressure gauge and the transmitter. Browse more booster pumps, or step up to a 1.5 kW i-Prez booster pump system if your demand is higher.
Key features
- Variable speed drive built in, so the pump only works as hard as the taps demand
- Pressure adjustable from 1 to 9 bar, with a digital display for speed and pressure
- Up to 60 m head and up to 16 m³/h flow on a 220 V single phase supply
- Protection against dry running, overload, unbalanced voltage and short circuit
- Compact horizontal layout that is straightforward to install
- Handles clean water from 0 to 70 °C in ambient temperatures from 0 to 40 °C
Where it works
This 1.1 kW system is built for constant pressure on a household or small property: a farmhouse in Limpopo running off a JoJo tank, a lodge with several bathrooms, a small workshop wash bay or a garden irrigation line. Where the supply is a storage tank or a borehole header tank, the drive keeps pressure steady and cuts the stop-start cycling of a basic pump. If you are sizing between systems, compare it with the 0.75 kW smart VSD booster pump, and keep it under cover or in a pump house away from rain and direct sun.
What’s in the box
- 1.1 kW booster pump system with variable speed drive
- Pressure tank
- 5-way connector with non-return valve
- Pressure gauge and pressure transmitter
Delivery and warranty
Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days. Shipping weight is 15.9 kg, which is up to 30 kg, so delivery is R550. Orders of R20,000 or more (VAT incl.) ship free. Ask us for the warranty terms on this model.
Questions about this product
Will this booster pump give me constant pressure at the shower?
Yes. That is its job. A pressure transmitter feeds the variable speed drive, which changes motor speed to hold the pressure you set between 1 and 9 bar. When one tap is open the pump runs slowly, and when several open it speeds up. You do not get the sudden pressure swings of a fixed-speed pump.
How much does delivery cost for the 1.1 kW i-Prez system?
At 15.9 kg shipping weight it sits in the up to 30 kg band, so delivery is R550, and it is free on orders of R20,000 or more (VAT incl.). We deliver with our own trucks from Polokwane to all nine provinces, normally in 1 to 3 days, including farms and sites outside town.
Can I connect it to a JoJo tank or borehole supply?
Yes, as long as the pump is fed with clean water and stays flooded, because it is not listed as self-priming. A tank or header tank on the inlet works well. The liquid limit is 70 °C. For a borehole, give it a stable supply and keep it undercover, as ambient temperature should stay between 0 and 40 °C.
What protection does it have?
The drive protects the pump against dry running, overload, unbalanced voltage and short circuits. This is useful on farms and in areas with load-shedding and unstable supply, where a plain pump can burn out. It is not a substitute for a surge arrestor, so fit proper protection on your distribution board.
Nationwide delivery from Polokwane
Delivered to all nine provinces in 1 to 3 days
We deliver the 1.1 kW Variable Speed Booster Pump System, i-Prez, 60 m Head with our own trucks to Johannesburg, Pretoria, Cape Town, Durban, Gqeberha, Bloemfontein, Polokwane, Mbombela, Mokopane, Rustenburg, Tzaneen, Pietermaritzburg, Richards Bay and eMalahleni, and to farms, mines and sites in between. This item ships in the R550 delivery band (up to 30 kg). Orders of R20,000 or more deliver free with code KH027.
Pairs well with
-
KMN-WATR-0319
2,500 L Tank Combo, 0.55 kW Monoblock Pump (92 L/min), Filter and UV
- 2,500 L tank
- 0.55 kW pump
- 92 L/min
-
KMN-WATR-0137
1000 L Slim Tank with 1.5 kW VSP Booster Pump System with VSD
- 1000 L tank
- 1.5 kW
- 108 L/min
-
KMN-WATR-0314

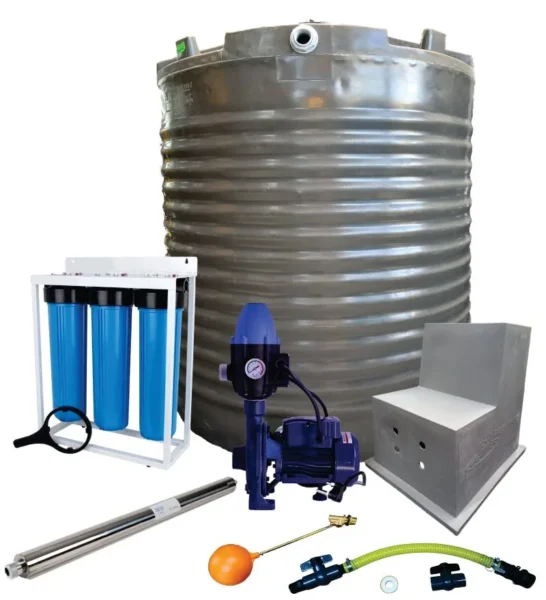

2,200 L Tank Combo, 0.75 kW Monoblock Pump (100 L/min), Filter and UV
