1.5 kW variable speed booster pump system with multistage pump and pressure vessel

1.5 kW Variable Speed Booster Pump System, i-Prez 15N, 60 m Head

Name: 1.5 kW Variable Speed Booster Pump System, i-Prez 15N, 60 m Head
SKU: KMN-WATR-0205
Price: 11065.95 ZAR
Availability: InStock

SKU KMN-WATR-0205

The 1.5 kW i-Prez 15N is a complete variable speed booster system with pressure tank for larger homes, lodges and small farms, delivered across South Africa.

R11 065,95

1.5 kW motor for longer pipe runs and more taps open at once
Variable speed drive holds constant pressure, adjustable from 1 to 9 bar
Set includes multistage pump, pressure tank, 5-way connector and non-return valve
Compact: about 320 × 560 × 410 mm and 23 kg shipped

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Flow rate	Up to 16 m³/h
Max head / pressure	Up to 60 m head, pressure adjustable 1 to 9 bar
Voltage / phase	220 V, single phase, 50/60 Hz
Power	1.5 kW
Inlet / outlet	On request (DN25 to DN40 across the series)
Self-priming	Not stated, keep the pump flooded
Duty cycle	On request
Fluid compatibility	Clean water, 0 to 70 °C
Drive output	Variable frequency, 20 to 50 Hz or 20 to 60 Hz
Protection	Dry run, overload, unbalanced voltage, short circuit
Ambient temperature	0 to 40 °C
Net weight	21 kg
Shipping weight	23 kg
Dimensions	320 × 560 × 410 mm

Description

Overview

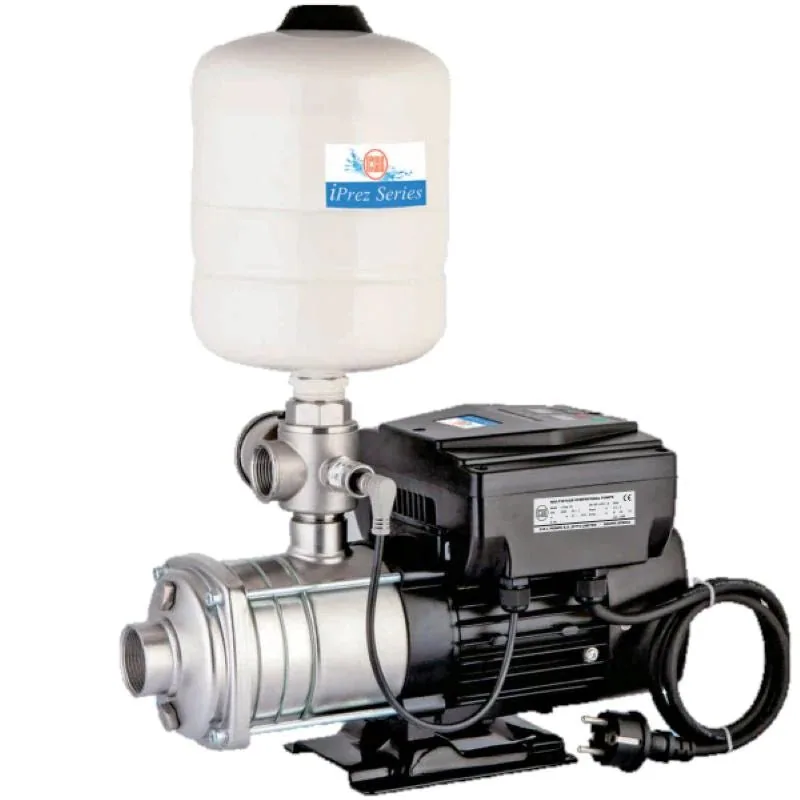

The 1.5 kW i-Prez 15N is a complete booster pump system that holds pressure steady by adjusting pump speed to the water you are using. It is the bigger sibling of the 1.1 kW i-Prez booster pump system, with extra motor power for longer pipe runs, a second storey or several bathrooms running together.

A pressure transmitter watches the line and the built-in variable speed drive does the rest. The set comes with a horizontal multistage pump with stainless steel wetted parts, drive, pressure tank, 5-way connector with non-return valve and pressure gauge. See the full range of booster pumps if you need to compare.

Key features

1.5 kW motor driven by a variable frequency drive for constant line pressure
Pressure settable from 1 to 9 bar, with a digital display of speed and pressure
Up to 60 m head and up to 16 m³/h on a 220 V single phase supply
Protects against dry running, overload, unbalanced voltage and short circuits
Complete stainless steel pump portion for clean water up to 70 °C
Compact footprint with a pressure tank already in the set

Where it works

Use it where one pump has to feed a lot of outlets: a double-storey home in Gauteng, a guest lodge in Mpumalanga, a dairy wash-down line or a packing shed in the Western Cape where hoses and sprayers open and close all day. It also works as a pressure stage between a storage tank and a drip or sprinkler zone. With variable speed it avoids the hammering of a pressure switch cycling on and off, which is kinder to pipes and fittings. For a higher-flow alternative with app control, look at the 1.1 kW smart VSD booster pump.

What’s in the box

1.5 kW booster pump system with variable speed drive
Pressure tank
5-way connector with non-return valve
Pressure gauge and pressure transmitter

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days. Shipping weight is 23 kg, which is up to 30 kg, so delivery is R550. Orders of R20,000 or more (VAT incl.) ship free. Ask us for the warranty terms on this model.

Questions about this product

What is the difference between the 1.1 kW and 1.5 kW i-Prez systems?

The 1.5 kW motor gives more power in reserve for longer pipe runs, more outlets and higher demand, while the control, 1 to 9 bar pressure range and protections are the same. It is heavier at 23 kg shipped, against 15.9 kg for the 1.1 kW. Choose it when several taps or hoses run at once.

How much does delivery cost for the 1.5 kW i-Prez system?

At 23 kg shipping weight it sits in the up to 30 kg band, so delivery is R550, and it is free on orders of R20,000 or more (VAT incl.). We deliver with our own trucks from Polokwane to all nine provinces, normally in 1 to 3 days, including farms and sites outside town.

Do I need a separate pressure tank?

No. A pressure tank is part of the system, together with the 5-way connector and non-return valve. The tank smooths small draws so the pump does not start for every drip. You still need clean water on the inlet and a sensible suction pipe size, and you should keep the pump out of rain and direct sun.

Will it run off an inverter during load-shedding?

It needs a 220 V single phase supply, and the motor load is 1.5 kW plus start-up surge. Only run it on an inverter or generator sized for that load. Ask us if you are unsure, and tell us your inverter rating so we can say whether the 1.5 kW or a smaller system is the better match.
