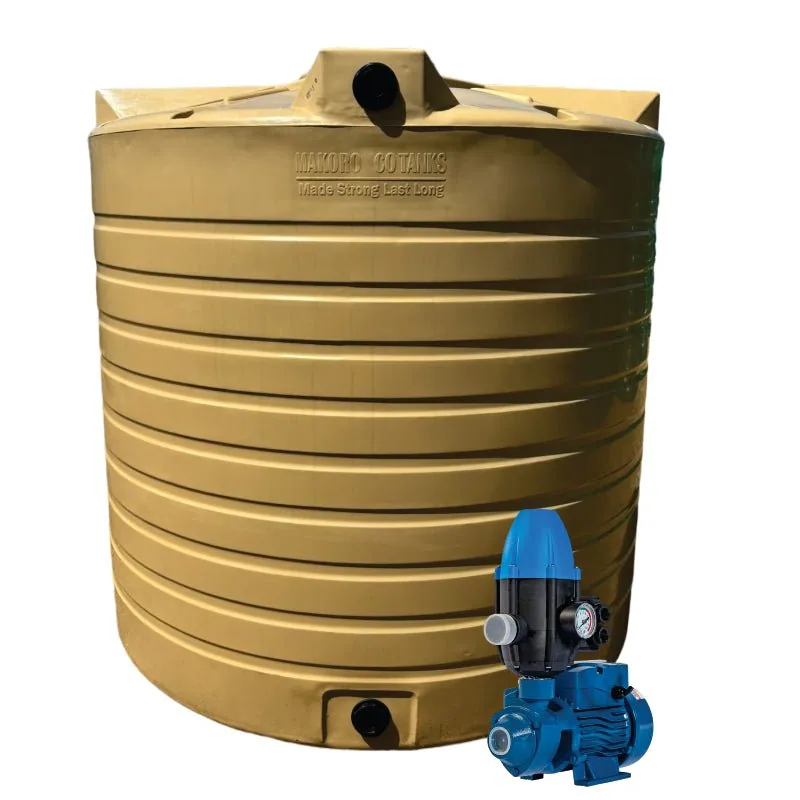

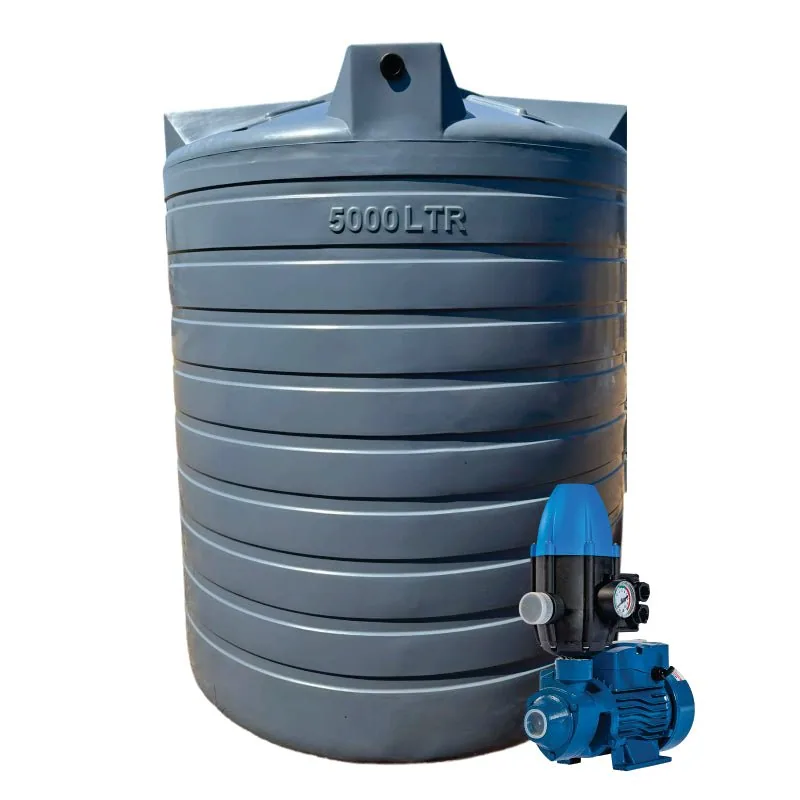

5000 L Water Tank with 0.75 kW Peripheral Pump and Controller
SKU KMN-WATR-0181
A 5000 L water tank with a 0.75 kW peripheral pump that builds up to 60 m head from a flow switch, for gardens, homes and small farms across South Africa.
R5 343,79
- Peripheral impeller delivers up to 60 m head from 0.75 kW
- 60 L/min flow, suited to taps, sprinklers and washing
- Automatic flow switch with IP65 rating, 1.5 bar start
- 5000 L tank, 1800 mm diameter, 2200 mm high
Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details
Specifications
| Capacity | 5000 L (5325 L maximum fill) |
|---|---|
| Tank material / wall | 100% virgin LLDPE, rotomoulded, double layer, black inner liner |
| Tank size | Ø1800 × 2200 mm high, 450 mm manhole |
| Chassis / axle / tyres | N/A (static vertical tank) |
| Bunding | N/A (water tank) |
| Tank empty weight | 80 kg |
| Flow rate | 60 L/min |
| Max head / pressure | 60 m (controller up to 10 bar) |
| Voltage / phase | 230 V, single-phase |
| Power | 0.75 kW |
| Inlet / outlet | 1" ports |
| Self-priming | No (suction lift up to 6 m with a foot valve) |
| Duty cycle | On request, run the pump at least once a week |
| Fluid compatibility | Clean water, max 40 °C (controller rated to 60 °C) |
| Pump body | Cast iron body and motor support |
| Impeller | Brass, radial peripheral vanes |
| Shaft and seal | AISI 304 stainless shaft, NBR/graphite/ceramic mechanical seal |
| Motor protection | Thermal overload protector built into the winding |
| Max suction lift | Up to 6 m with a foot valve, depending on altitude |
| Warranty | Tank: 1 to 2 years, depending on the model |
| Net weight | 87 kg |
| Shipping weight | 87.8 kg |
| Dimensions | Ø1800 × 2200 mm (tank, diameter × height) |
Description
Overview
This 5000 L water tank with 0.75 kW peripheral pump trades flow for pressure: the pump gives only 60 L/min, but it pushes that water up to 60 m head, which is plenty for a garden sprinkler line, a pressure washer feed or a multi-storey house.
A peripheral impeller is a better match than a centrifugal when you want pressure on a modest flow. The flow switch starts the pump below 1.5 bar and stops it when water stops moving. Compare it against the monoblock sets in tank and pump combo kits if you need more litres per minute rather than more pressure.
Key features
- Peripheral brass impeller for high head at low flow
- Flow switch with IP65 protection, start pressure 1.5 bar, up to 10 bar maximum
- Thermal overload protector in the winding, cast-iron body
- Suction lift up to 6 m with a foot valve, depending on altitude
- Run the pump at least once a week so the impeller does not seize
Where it works
Peripheral pumps do well on small irrigation blocks, vegetable tunnels and garden systems in the Western Cape vineyards and Limpopo smallholdings where water is stored and then pushed through drip or micro-sprinkler lines. They also suit house boosting where the roof tank is low. For higher flow from the same 5000 L tank, see 5000 L tank with a 0.75 kW monoblock pump, or buy only the pump with 0.75 kW peripheral pump kit.
What’s in the box
- 5000 L vertical LLDPE tank with screw-on lid
- 0.75 kW 230 V peripheral pump with flow-control switch
- Fittings and pipework not included
Delivery and warranty
Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days. Delivery is free on orders of R20,000 or more (VAT incl.). The set ships at 87.8 kg, which falls in our R1,450 delivery band (60 to 100 kg), and the tank is shipped bare. The tank carries a warranty of 1 to 2 years, depending on the model, confirmed on your quote. Ask us for the pump warranty terms.
Questions about this product
Is a peripheral pump better than a monoblock for a garden?
It is better when you want pressure. This 0.75 kW peripheral pump gives 60 L/min at up to 60 m head, while the monoblock gives more water at lower pressure. For sprinklers, drip lines and a pressure washer, peripheral usually wins. For filling troughs fast, take the monoblock.
What does the controller do?
It is an automatic flow switch. It starts the pump when pressure falls below about 1.5 bar at a tap and shuts it down when flow stops. It is rated IP65 and handles up to 10 bar. Mount it where you can see it and keep it dry.
Why must the pump run once a week?
Peripheral impellers can stick if left standing. Running the pump for a short time every week keeps the impeller free. If the set is going to stand empty for months, flush it with clean water and drain the pump before storing.
What is the delivery cost to the Free State?
The set ships at 87.8 kg, so it sits in the 60 to 100 kg band at R1,450, wherever in the nine provinces you are. Orders of R20,000 or more (VAT incl.) ship free. Delivery usually takes 1 to 3 days from Polokwane.
