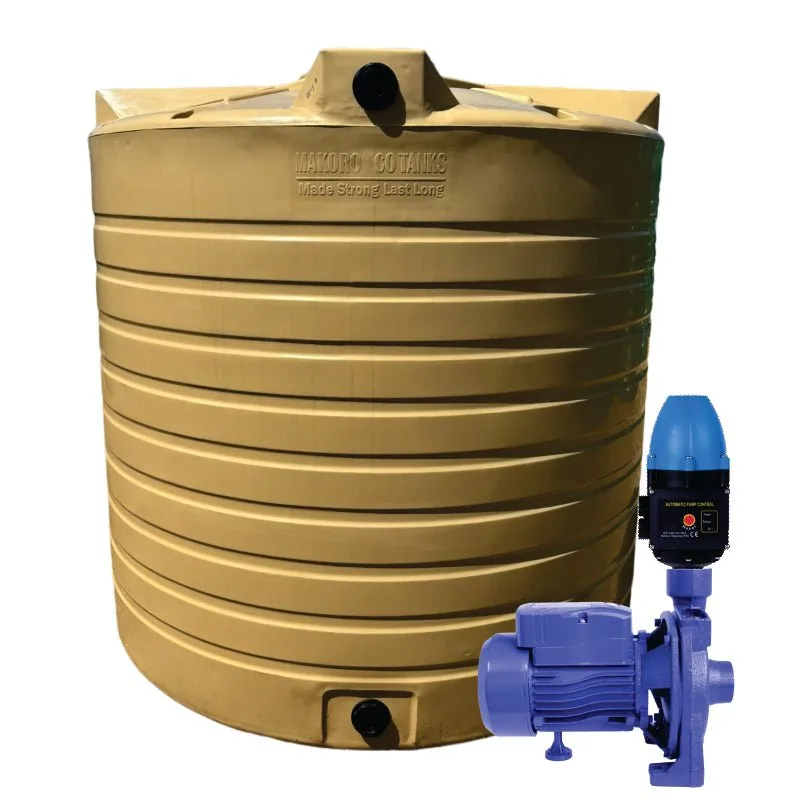

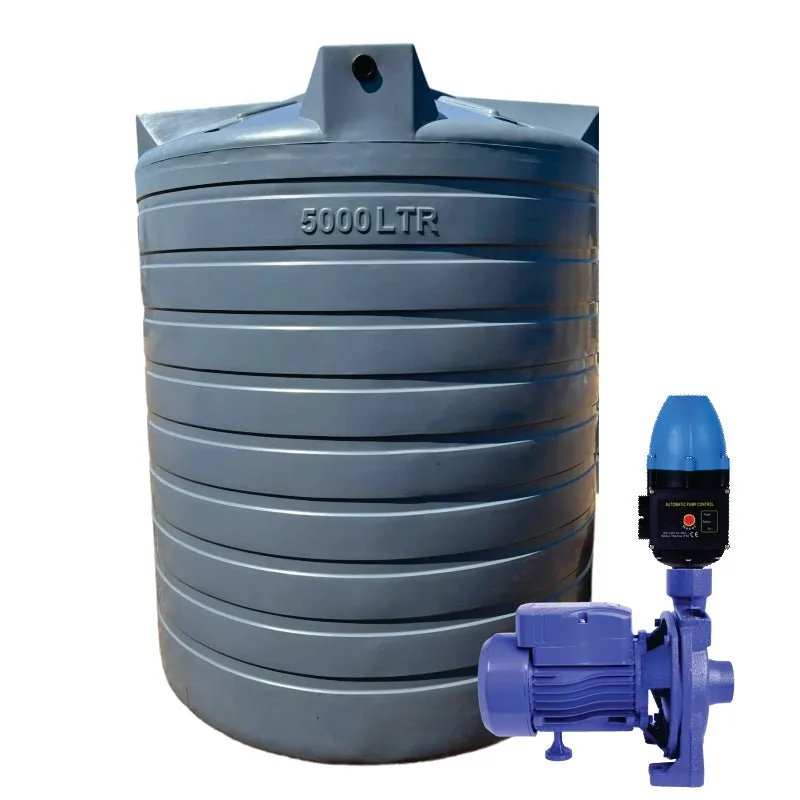

5000 L Water Tank with 0.75 kW Monoblock Pump and Controller
SKU KMN-WATR-0180
A 5000 L vertical water tank with a 0.75 kW monoblock pump and flow controller for home and farm water supply, delivered nationwide from Polokwane.
R5 616,66
- Pump switches on at a tap and off at no flow, via the controller
- 5000 L tank, 1800 mm diameter, 2200 mm high
- 0.75 kW centrifugal pump: 100 L/min, 32 m head, 1″ ports
- Cast-iron body with thermal overload protection
Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details
Specifications
| Capacity | 5000 L (5325 L maximum fill) |
|---|---|
| Tank material / wall | 100% virgin LLDPE, rotomoulded, double layer, black inner liner |
| Tank size | Ø1800 × 2200 mm high, 450 mm manhole |
| Chassis / axle / tyres | N/A (static vertical tank) |
| Bunding | N/A (water tank) |
| Tank empty weight | 80 kg |
| Flow rate | 100 L/min |
| Max head / pressure | 32 m |
| Voltage / phase | 230 V, single-phase |
| Power | 0.75 kW |
| Inlet / outlet | 1" ports |
| Self-priming | No (suction lift up to 6 m with a foot valve) |
| Duty cycle | On request |
| Fluid compatibility | Clean water, max 40 °C |
| Pump body | Cast iron body and motor support |
| Impeller | Brass or stainless steel |
| Shaft and seal | AISI 304 stainless shaft, graphite/ceramic mechanical seal |
| Motor protection | Thermal overload protector built into the winding |
| Max suction lift | Up to 6 m with a foot valve, depending on altitude |
| Warranty | Tank: 1 to 2 years, depending on the model |
| Net weight | 91.1 kg |
| Shipping weight | 92.2 kg |
| Dimensions | Ø1800 × 2200 mm (tank, diameter × height) |
Description
Overview
This 5000 L water tank with 0.75 kW monoblock pump and controller is a straight storage-and-pressure set for a house, smallholding or workshop. The monoblock pump moves 100 L/min at up to 32 m head, and the controller starts it when you open a tap and stops it when the flow stops.
The pump has a cast-iron body, brass or stainless impeller and a graphite/ceramic seal, with a thermal protector in the winding. It is the middle step between the 0.55 kW and 1.1 kW sets in the tank and pump combo kits range. Tank and pump arrive as separate items so you can position each one where it suits the site.
Key features
- Flow and pressure controller gives automatic start and stop, no manual switching
- 1″ ports on the pump for standard pipework
- Thermal overload protector built into the motor winding
- Double-layer LLDPE tank with a black inner liner and a 450 mm manhole
- Primed with water before first start, the tank gravity-feeds the pump
Where it works
This set suits farm houses in the Waterberg and Limpopo, staff housing on Mpumalanga mines, and any site where a municipal supply is intermittent and you want a buffer of 5000 L. Place the tank on a level, compacted base with the pump close to the outlet. If you want more pressure from a modest flow, look at 5000 L tank with a 0.75 kW peripheral pump; for more flow see 5000 L tank with a 1.1 kW monoblock pump.
What’s in the box
- 5000 L vertical LLDPE tank with screw-on lid
- 0.75 kW 230 V monoblock pump with flow and pressure controller
- Fittings and pipework not included
Delivery and warranty
Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days. Delivery is free on orders of R20,000 or more (VAT incl.). The set ships at 92.2 kg, which falls in our R1,450 delivery band (60 to 100 kg), and the tank is shipped bare. The tank carries a warranty of 1 to 2 years, depending on the model, confirmed on your quote. Ask us for the pump warranty terms.
Questions about this product
Do I need a pressure switch as well?
No. The controller supplied with the pump starts it when the pressure drops at a tap and stops it again when flow ends. You still need to connect everything correctly, and the pump must be filled with water before its first start. Ask us if you want a second outlet or a long pipe run checked.
Can this pump lift water from a borehole?
Not from depth. It is a centrifugal monoblock for pushing water from your tank, with suction lift of up to 6 m using a foot valve. For deep boreholes you need a submersible pump. We can help you match the right borehole pump to this tank if you share the depth.
How is the set delivered to a farm?
It travels on our own trucks from Polokwane in 1 to 3 days. At 92.2 kg it falls in the 60 to 100 kg band at R1,450, unless your order reaches R20,000 (VAT incl.) and ships free. The tank is bare and the pump is boxed separately.
Can I run it through load-shedding?
The motor needs 230 V, so it needs mains, a generator or an inverter that can handle the starting current of a 0.75 kW motor. The 5000 L tank means you still have stored water to use by gravity while the power is off.
Nationwide delivery from Polokwane
Delivered to all nine provinces in 1 to 3 days
We deliver the 5000 L Water Tank with 0.75 kW Monoblock Pump and Controller with our own trucks to Johannesburg, Pretoria, Cape Town, Durban, Gqeberha, Bloemfontein, Polokwane, Mbombela, Tzaneen, Richards Bay, Klerksdorp, Mahikeng, Mokopane and Kimberley, and to farms, mines and sites in between. This item ships in the R1,450 delivery band (60 to 100 kg). Orders of R20,000 or more deliver free with code KH027.
