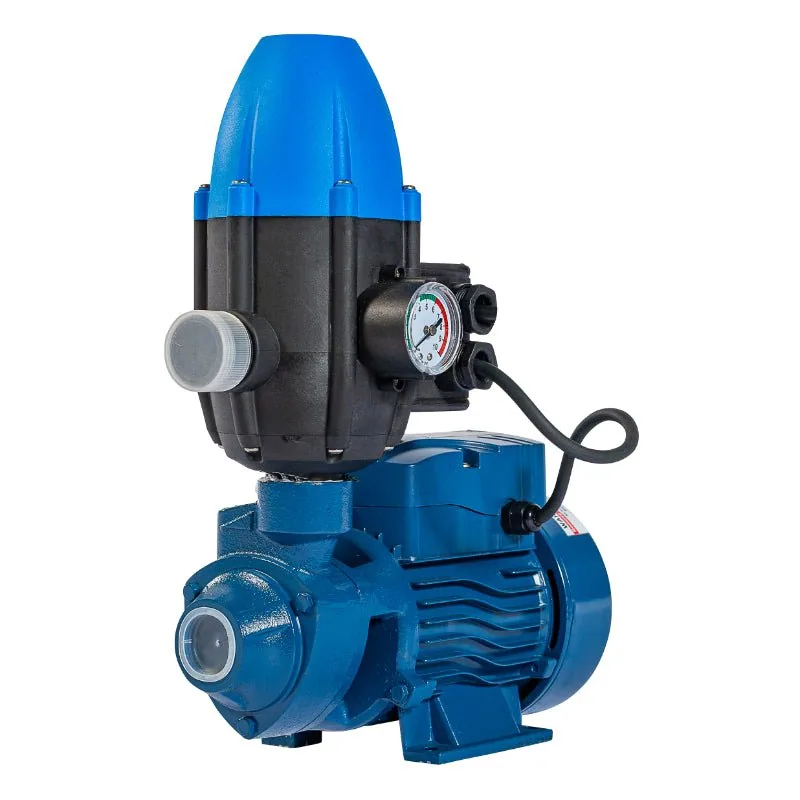

0.75 kW peripheral pump kit with flow switch, 60 L/min, main view

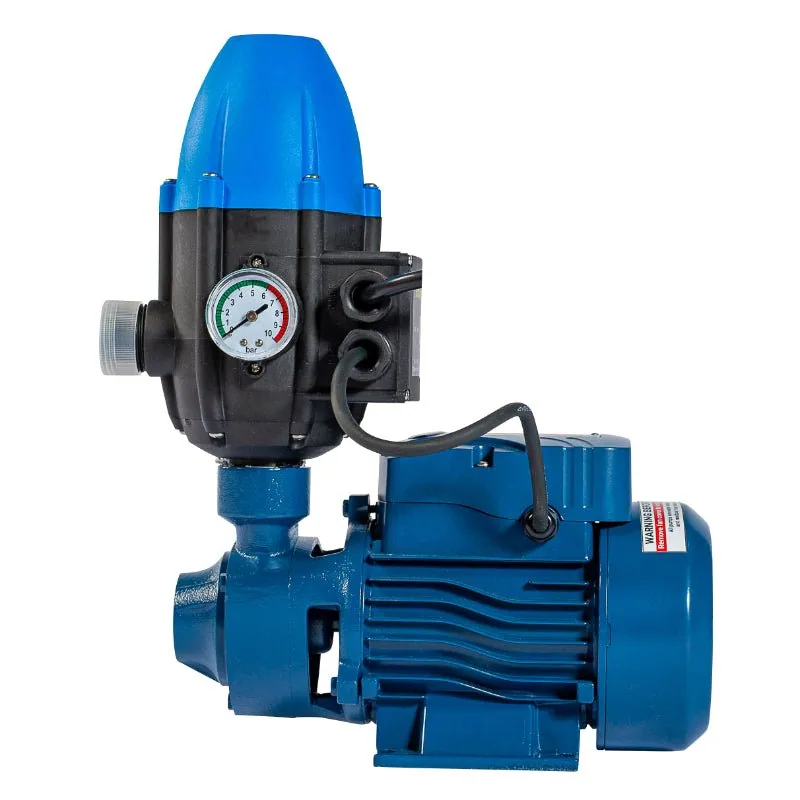

0.75 kW peripheral pump kit with flow switch, 60 L/min, angle view

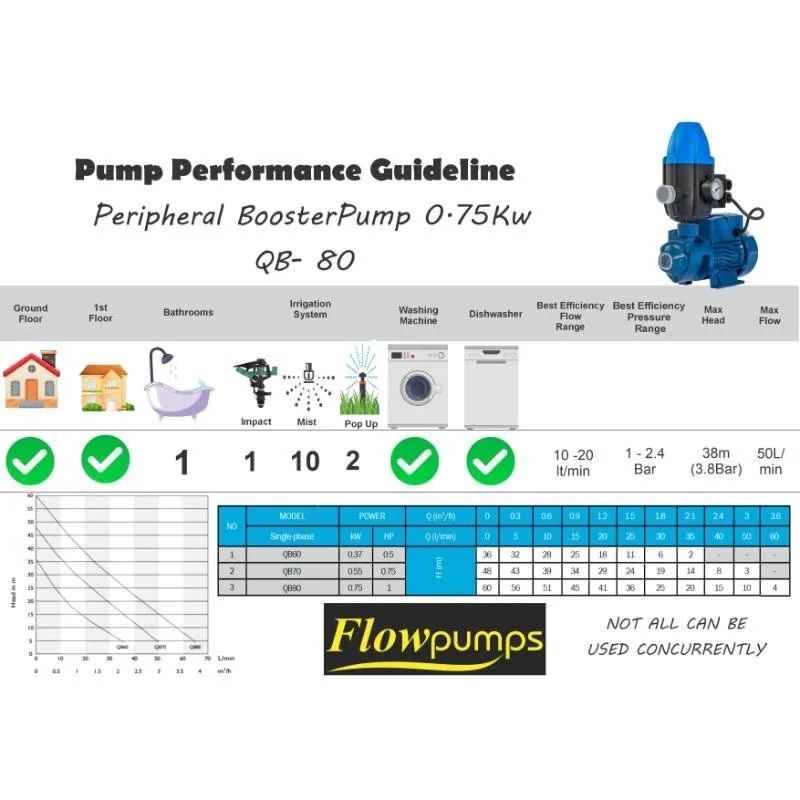

0.75 kW peripheral pump kit with flow switch, 60 L/min, detail view

0.75 kW Peripheral Pump Kit with Flow Switch, 60 L/min, 60 m

Name: 0.75 kW Peripheral Pump Kit with Flow Switch, 60 L/min, 60 m
SKU: KMN-WATR-0198
Price: 1794.56 ZAR
Availability: InStock

SKU KMN-WATR-0198

A 0.75 kW peripheral pump kit with flow switch, 60 L/min at up to 60 m, for high-pressure garden, wash and house boosting jobs in South Africa.

R1 794,56

Up to 60 m head from a 0.75 kW motor
60 L/min flow with automatic flow switch
8 bar maximum operating pressure
Cast-iron body, thermal overload protection

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Flow rate	60 L/min (3.6 m³/h)
Max head / pressure	60 m
Voltage / phase	230 V, single-phase, 2850 rpm
Power	0.75 kW
Inlet / outlet	On request
Self-priming	No (suction lift up to 6 m with a foot valve)
Duty cycle	On request, run the pump at least once a week
Fluid compatibility	Clean water without abrasive particles, max 40 °C
Pump body	Cast iron body and motor support
Impeller	Brass, radial peripheral vanes
Shaft and seal	AISI 304 stainless shaft, NBR/graphite/ceramic mechanical seal
Motor protection	Thermal overload protector built into the winding
Max suction lift	Up to 6 m with a foot valve, depending on altitude
Net weight	11.2 kg
Shipping weight	12 kg
Dimensions	On request

Description

Overview

This 0.75 kW peripheral pump kit has the highest head in the peripheral kits, up to 60 m at 60 L/min, with the flow switch and lead-out cable included.

Peripheral pumps build pressure rather than volume, so this suits long or uphill pipe runs, drip systems and sprinklers. Maximum operating pressure is 8 bar. The 0.75 kW kit is lighter than the same-power monoblock kit. See further models in water pumps and booster pumps.

Key features

Highest head in the peripheral kits
Automatic start and stop through the flow switch
Thermal overload protector in the winding
NBR/graphite/ceramic seal and AISI 304 shaft
Run weekly to keep the impeller free

Where it works

It does well on uphill irrigation blocks and vineyards in the Western Cape, pressure feeds to roof tanks in Gauteng suburbs, and washing systems at depots. For a flow-oriented alternative see 0.75 kW monoblock pump kit, or the lower-power 0.55 kW peripheral pump kit.

Installation notes: mount the pump on rubber feet near the water source, with a short airtight suction line and a foot valve and strainer if it lifts water. This model gives 60 L/min (3.6 m³/h) at 60 m of head, with a maximum working pressure of 8 bar, so do not leave it running against a closed outlet. Run the pump at least once a week, keep sand out of the water, and let a qualified electrician make the electrical connection.

What’s in the box

0.75 kW peripheral pump
Automatic flow-control switch
Lead-out cable
Pipework and fittings not included

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days. Delivery is free on orders of R20,000 or more (VAT incl.). The shipping weight is 12 kg, which falls in our R550 delivery band (up to 30 kg). Ask us for the warranty terms on this model.

Questions about this product

Peripheral or monoblock for a drip system?

Peripheral gives higher pressure on a lower flow, which is what drip and micro-sprinklers like. Monoblock gives more volume for filling and larger sprinklers. Tell us the system and we will recommend one. A small pressure vessel on the outlet cuts the number of starts on a drip layout and is cheap to add.

How strong is the pressure?

Head reaches up to 60 m, with a maximum operating pressure of 8 bar. Always stay below the limit when fitting pressure-reducing or shut-off parts. Do not close a valve on the outlet and leave the pump running, since a peripheral pump will heat up and force the seal.

Does the kit have a cable?

Yes. The kit includes a flow-control switch and a lead-out cable, and you add the pipework. Unions, a foot valve and pipe are bought separately, and we can quote for them if you send your layout. Connect the cable to your supply through a proper breaker.

What is the delivery cost?

This item ships at 12 kg, so it falls in our up to 30 kg delivery band at R550. Our own trucks deliver from Polokwane to all nine provinces in 1 to 3 days. Orders of R20,000 or more (VAT incl.) ship free. Delivery fees are set by total order weight, so adding other items to the order can move it into a heavier band.

Nationwide delivery from Polokwane

Delivered to all nine provinces in 1 to 3 days

We deliver the 0.75 kW Peripheral Pump Kit with Flow Switch, 60 L/min, 60 m with our own trucks to Johannesburg, Pretoria, Cape Town, Durban, Gqeberha, Bloemfontein, Polokwane, Mbombela, Klerksdorp, Tzaneen, Richards Bay, Secunda, George and Mokopane, and to farms, mines and sites in between. This item ships in the R550 delivery band (up to 30 kg). Orders of R20,000 or more deliver free with code KH027.
