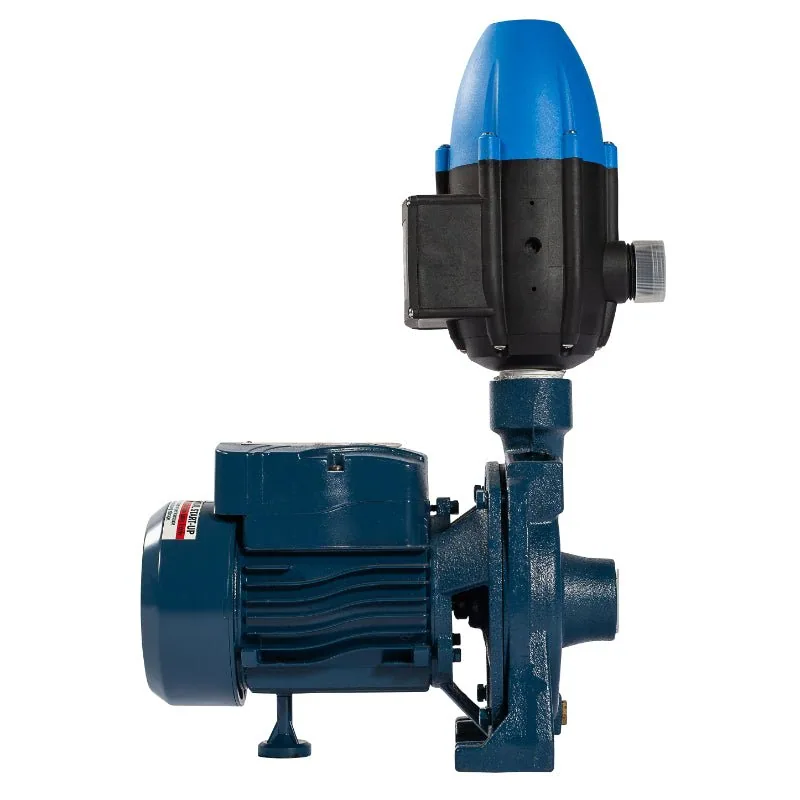

0.55 kW monoblock pump kit with flow switch and cable, main view

0.55 kW monoblock pump kit with flow switch and cable, angle view

0.55 kW Monoblock Pump Kit with Flow Switch, 92 L/min, 26 m

Name: 0.55 kW Monoblock Pump Kit with Flow Switch, 92 L/min, 26 m
SKU: KMN-WATR-0190
Price: 2030.81 ZAR
Availability: InStock

SKU KMN-WATR-0190

A 0.55 kW monoblock pump kit with a flow-control switch and lead-out cable, giving 92 L/min at 26 m for homes and gardens across South Africa.

R2 030,81

Flow switch starts the pump when a tap opens and stops it at no flow
92 L/min, up to 26 m head, 230 V single-phase
Cast-iron body, brass or stainless impeller
Switch and lead-out cable included

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Flow rate	92 L/min (5.5 m³/h)
Max head / pressure	26 m
Voltage / phase	230 V, single-phase, 2850 rpm
Power	0.55 kW
Inlet / outlet	On request
Self-priming	No (suction lift up to 6 m with a foot valve)
Duty cycle	On request
Fluid compatibility	Clean water, max 40 °C
Pump body	Cast iron body and motor support
Impeller	Brass or stainless steel
Shaft and seal	AISI 304 stainless shaft, graphite/ceramic mechanical seal
Motor protection	Thermal overload protector built into the winding
Max suction lift	Up to 6 m with a foot valve, depending on altitude
Net weight	15 kg
Shipping weight	16.1 kg
Dimensions	On request

Description

Overview

This 0.55 kW monoblock pump kit is ready to wire up: the pump comes with an automatic flow-control switch and a lead-out cable, so it starts when the pressure drops and stops when the flow stops.

It is a single-stage centrifugal pump delivering up to 92 L/min (5.5 m³/h) and 26 m head, at 2850 rpm. Fill the tank and prime the pump before the first start. If you want just the pump with no switch, see the pump-only version in water pumps and booster pumps.

Key features

Automatic start and stop via the supplied flow switch
Single-stage centrifugal design for clean water
Thermal overload protector in the copper winding
Suction lift to 6 m with a foot valve, depending on altitude
Compact body

Where it works

It is a common choice for domestic supply from a rainwater tank, for garden sprinkler irrigation, vegetable tunnels and aquaculture supply and drainage. Farmers in Limpopo use it to pressurise taps from a header tank. Heavier demand calls for 0.75 kW monoblock pump kit, or you can compare the peripheral 0.75 kW peripheral pump kit.

Installation notes: mount the pump on a firm, level base close to the water source and keep the suction line short, airtight and rising gently towards the pump so air cannot collect. Fit a foot valve wherever the pump lifts water, and fill the pump body before the first start. Rated flow is 92 L/min (5.5 m³/h), so choose pipe sizes that do not choke it and keep the run as straight as you can. Size the cable and breaker for the motor, and let a qualified electrician make the connection.

What’s in the box

0.55 kW monoblock pump
Automatic flow-control switch
Lead-out cable
Pipework and fittings not included

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days. Delivery is free on orders of R20,000 or more (VAT incl.). The shipping weight is 16.1 kg, which falls in our R550 delivery band (up to 30 kg). Ask us for the warranty terms on this model.

Questions about this product

What comes in the kit?

The 0.55 kW monoblock pump, an automatic flow-control switch and a lead-out cable. You supply the pipework, fittings and foot valve. The switch starts the pump when pressure drops and stops it when the water stops flowing. Fit the foot valve and a short, airtight suction line, and the kit is ready to be wired and primed.

Do I need to prime it?

Yes. Fill the pump body with water before the first start, and make sure the tank is full. Without a foot valve the pump cannot lift water from below reliably, so fit one if the water source is under the pump.

Can it pump from a dam?

It is a clean-water pump with up to 6 m of suction lift using a foot valve. A dam with mud or weed will block it, so use a strainer. For heavy duty take a trash pump. Keep the foot valve a hand's width off the bottom of the dam, with a strainer around it, so mud and weed stay out.

What is the delivery fee?

This item ships at 16.1 kg, so it falls in our up to 30 kg delivery band at R550. Our own trucks deliver from Polokwane to all nine provinces in 1 to 3 days. Orders of R20,000 or more (VAT incl.) ship free. Delivery fees are set by total order weight, so adding other items to the order can move it into a heavier band.
