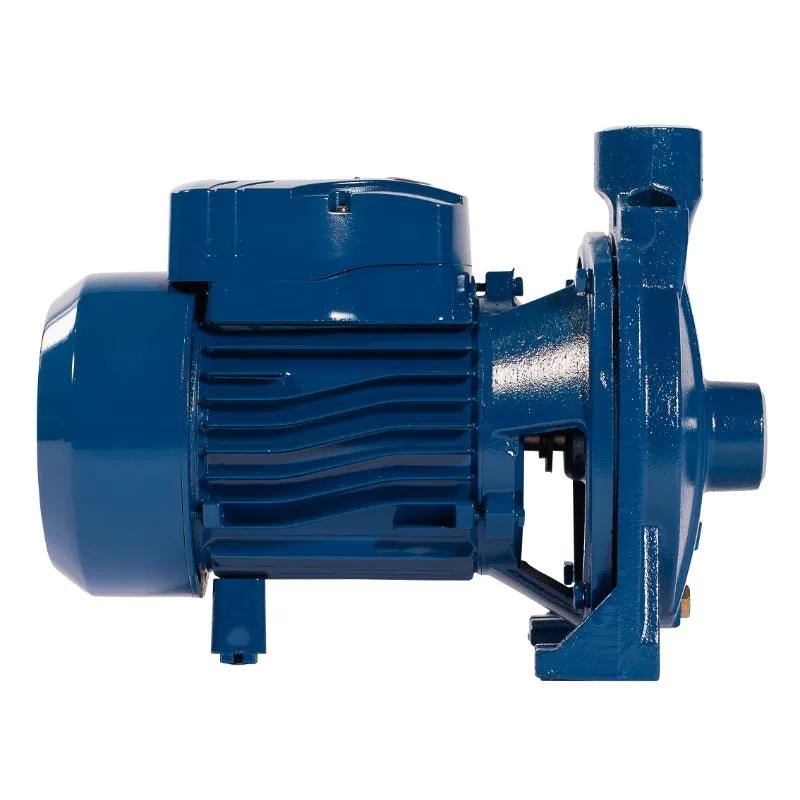

1.1 kW Monoblock Pump Only, 125 L/min, 37 m Head, 220 V
SKU KMN-WATR-0195
A 1.1 kW single-phase monoblock pump, pump only, giving 125 L/min at up to 37 m for high-flow water jobs across South Africa.
R2 143,45
- 125 L/min (6 m³/h) at up to 37 m
- Pump only, add your own switch
- Single-phase 220 V, 2850 rpm
- Cast-iron body, brass or stainless impeller
Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details
Specifications
| Flow rate | 125 L/min (6 m³/h) |
|---|---|
| Max head / pressure | 37 m |
| Voltage / phase | 220 V, single-phase, 2850 rpm |
| Power | 1.1 kW |
| Inlet / outlet | On request |
| Self-priming | Not stated (suction lift up to 6 m needs a foot valve) |
| Duty cycle | On request |
| Fluid compatibility | Clean liquids, max 40 °C |
| Pump body | Cast iron body and motor support |
| Impeller | Brass or stainless steel |
| Shaft and seal | AISI 304 stainless shaft, graphite/ceramic mechanical seal |
| Motor protection | Thermal overload protector built into the winding |
| Max suction lift | Up to 6 m with a foot valve, depending on altitude |
| Net weight | 13.2 kg |
| Shipping weight | 14.1 kg |
| Dimensions | On request |
Description
Overview
This 1.1 kW monoblock pump only delivers 125 L/min (6 m³/h) at up to 37 m head, for tank transfer, irrigation and pressure jobs where you want to supply your own control gear.
It uses a single-phase 220 V motor with permanently engaged capacitor and thermal overload protection, and a cast-iron body with brass or stainless impeller. At 13.2 kg it is almost the same weight as the 0.75 kW model. See the kit with flow switch in water pumps and booster pumps.
Key features
- Highest flow in the pump-only monoblock range
- Single-stage centrifugal for clean liquids
- AISI 304 shaft and graphite/ceramic mechanical seal
- Thermal protection in the copper winding
- Suction lift up to 6 m with a foot valve
Where it works
Use it to move water from dams to header tanks in the Free State, to run sprinkler blocks in the Western Cape, or to feed wash bays at depots. It is also a straight replacement for a worn 1.1 kW unit. For the kit version see 1.1 kW monoblock pump kit with flow switch, and for a smaller pump see 0.75 kW monoblock pump kit.
Installation notes: mount the pump on a firm, level base close to the water source and keep the suction line short, airtight and rising gently towards the pump so air cannot collect. Fit a foot valve wherever the pump lifts water, and fill the pump body before the first start. Rated flow is 125 L/min (6 m³/h), so choose pipe sizes that do not choke it and keep the run as straight as you can. Size the cable and breaker for the motor, and let a qualified electrician make the connection.
What’s in the box
- 1.1 kW monoblock pump (pump only)
- Switch, cable and fittings not included
Delivery and warranty
Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days. Delivery is free on orders of R20,000 or more (VAT incl.). The shipping weight is 14.1 kg, which falls in our R550 delivery band (up to 30 kg). Ask us for the warranty terms on this model.
Questions about this product
Can I run this on a generator?
Yes, if the generator has enough capacity for the motor starting load, which is higher than the running load of 1.1 kW. Tell us your generator size and we will check it. An inverter must also be sized for the surge, not only for the 1.1 kW running figure.
How does the weight compare to the 0.75 kW pump?
It is almost the same: 14.1 kg shipping against 14.3 kg. The supplier data shows a tiny inversion, but both pumps sit in the cheapest delivery band, so the difference does not change what you pay. Choose between them by flow and head, not by weight.
Does the pump have a pressure switch?
No. It is pump only. Add a pressure switch or controller, or choose the kit with the flow switch included. A pressure switch with a small pressure vessel is the usual way to add automatic control, and the vessel cuts the number of starts.
What is the delivery fee for 14.1 kg?
This item ships at 14.1 kg, so it falls in our up to 30 kg delivery band at R550. Our own trucks deliver from Polokwane to all nine provinces in 1 to 3 days. Orders of R20,000 or more (VAT incl.) ship free. Delivery fees are set by total order weight, so adding other items to the order can move it into a heavier band.
