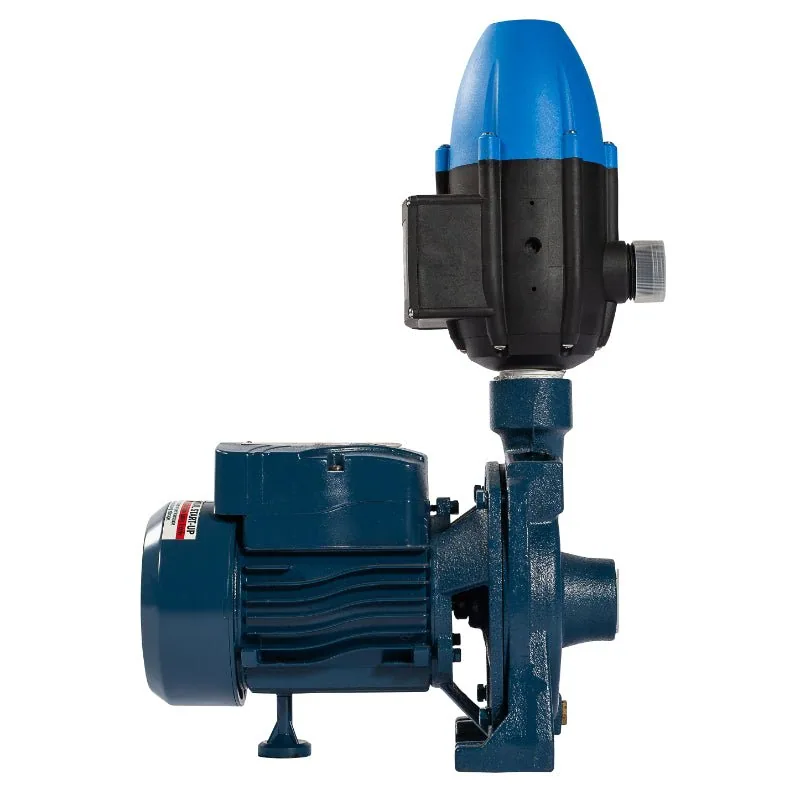

1.1 kW monoblock pump kit with flow switch, 125 L/min, main view

1.1 kW monoblock pump kit with flow switch, 125 L/min, angle view

1.1 kW Monoblock Pump Kit with Flow Switch, 125 L/min, 37 m

Name: 1.1 kW Monoblock Pump Kit with Flow Switch, 125 L/min, 37 m
SKU: KMN-WATR-0194
Price: 3117.56 ZAR
Availability: InStock

SKU KMN-WATR-0194

A 1.1 kW monoblock pump kit with flow switch and lead-out cable, 125 L/min at up to 37 m, for farms and larger homes across South Africa.

R3 117,56

125 L/min at up to 37 m head
Pump, flow switch and lead-out cable in one kit
230 V single-phase supply, 1.1 kW motor
Cast-iron body, brass or stainless impeller

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Flow rate	125 L/min (6 m³/h)
Max head / pressure	37 m
Voltage / phase	230 V, single-phase, 2850 rpm
Power	1.1 kW
Inlet / outlet	On request
Self-priming	Not stated (suction lift up to 6 m needs a foot valve)
Duty cycle	On request
Fluid compatibility	Clean liquids, max 40 °C
Pump body	Cast iron body and motor support
Impeller	Brass or stainless steel
Shaft and seal	AISI 304 stainless shaft, graphite/ceramic mechanical seal
Motor protection	Thermal overload protector built into the winding
Max suction lift	Up to 6 m with a foot valve, depending on altitude
Net weight	15.7 kg
Shipping weight	16.8 kg
Dimensions	On request

Description

Overview

This 1.1 kW monoblock pump kit is the biggest of the monoblock kits, giving 125 L/min (6 m³/h) and up to 37 m head, with the flow switch and cable included.

It handles larger houses, dairy wash-down or several sprinklers at once. The switch starts the pump when pressure falls and shuts it off when flow ends. The 1.1 kW motor draws more current, so check cable and breaker. Other sizes are in water pumps and booster pumps.

Key features

Highest flow of the monoblock kits, 125 L/min
Automatic start and stop
Thermal overload protector in the winding
Brass or stainless impeller, graphite/ceramic seal
Suction lift to 6 m with a foot valve

Where it works

It fits dairy wash-down in the Eastern Cape, citrus farm pump sheds in Limpopo, and school and clinic water systems where a header tank feeds the building. For lower demand take 0.75 kW monoblock pump kit; to include a tank, see 5000 L tank with a 1.1 kW monoblock pump.

Installation notes: mount the pump on a firm, level base close to the water source and keep the suction line short, airtight and rising gently towards the pump so air cannot collect. Fit a foot valve wherever the pump lifts water, and fill the pump body before the first start. Rated flow is 125 L/min (6 m³/h), so choose pipe sizes that do not choke it and keep the run as straight as you can. Size the cable and breaker for the motor, and let a qualified electrician make the connection.

What’s in the box

1.1 kW monoblock pump
Automatic flow-control switch
Lead-out cable
Pipework and fittings not included

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days. Delivery is free on orders of R20,000 or more (VAT incl.). The shipping weight is 16.8 kg, which falls in our R550 delivery band (up to 30 kg). Ask us for the warranty terms on this model.

Questions about this product

What exactly is the flow switch for?

It starts the pump when pressure drops as you open a tap and stops it again when flow ceases. It spares you from manual switching and from running the pump dry for long. Fit it on the discharge pipe, upstream of your taps, and keep the cable joint dry.

Will a normal home plug supply handle 1.1 kW?

Check your circuit rating. A 1.1 kW single-phase pump draws noticeably more than the smaller models and needs the right cable and breaker. Have an electrician confirm. On a long cable run, step up the cable size so voltage drop does not cause hard starts.

Does the kit include the pipes?

No. The kit has the pump, the flow switch and the lead-out cable. Pipework, unions and a foot valve are separate, and we can quote them if you tell us your layout. A foot valve and a strainer are worth adding if the pump lifts from a dam or sump.

How much is the courier fee?

This item ships at 16.8 kg, so it falls in our up to 30 kg delivery band at R550. Our own trucks deliver from Polokwane to all nine provinces in 1 to 3 days. Orders of R20,000 or more (VAT incl.) ship free. Delivery fees are set by total order weight, so adding other items to the order can move it into a heavier band.
