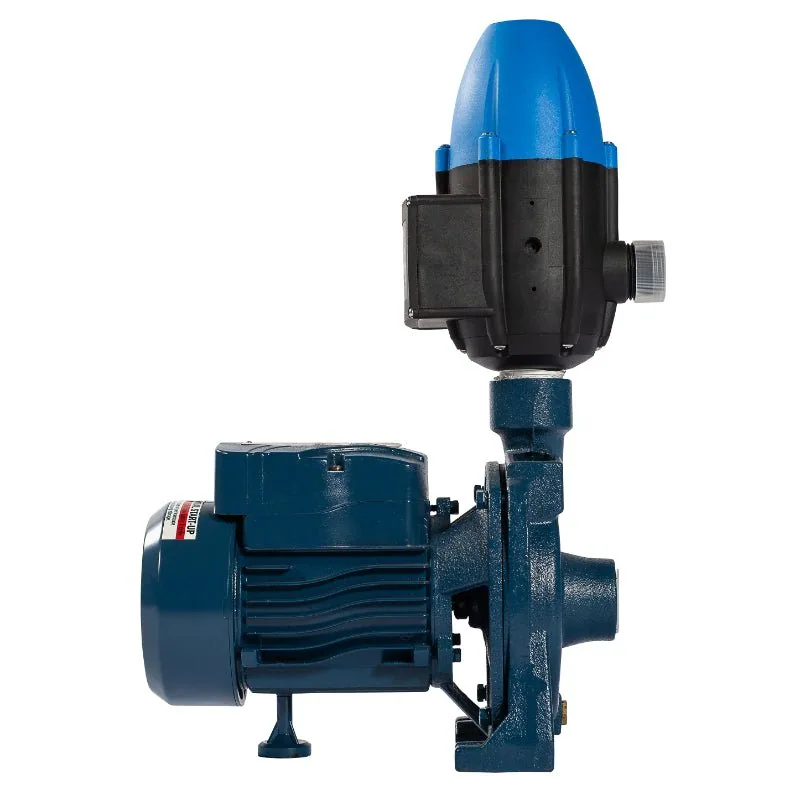

0.75 kW monoblock pump kit with flow switch, 100 L/min, main view

0.75 kW monoblock pump kit with flow switch, 100 L/min, angle view

0.75 kW Monoblock Pump Kit with Flow Switch, 100 L/min, 32 m

Name: 0.75 kW Monoblock Pump Kit with Flow Switch, 100 L/min, 32 m
SKU: KMN-WATR-0192
Price: 2172.56 ZAR
Availability: InStock

SKU KMN-WATR-0192

A 0.75 kW monoblock pump kit with automatic flow-control switch, 100 L/min at up to 32 m, for homes and farms across South Africa.

R2 172,56

100 L/min and up to 32 m head
Automatic flow-control switch included
230 V single-phase, 2850 rpm
Cast-iron body, thermal overload protection

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Flow rate	100 L/min (6 m³/h)
Max head / pressure	32 m
Voltage / phase	230 V, single-phase, 2850 rpm
Power	0.75 kW
Inlet / outlet	On request
Self-priming	No (suction lift up to 6 m with a foot valve)
Duty cycle	On request
Fluid compatibility	Clean water, max 40 °C
Pump body	Cast iron body and motor support
Impeller	Brass or stainless steel
Shaft and seal	AISI 304 stainless shaft, graphite/ceramic mechanical seal
Motor protection	Thermal overload protector built into the winding
Max suction lift	Up to 6 m with a foot valve, depending on altitude
Net weight	16.1 kg
Shipping weight	17.2 kg
Dimensions	On request

Description

Overview

This 0.75 kW monoblock pump kit gives 100 L/min (6 m³/h) at up to 32 m head, with an automatic flow-control switch that starts the pump when pressure drops and stops it when flow ends.

It sits in the middle of the monoblock range: more flow than the 0.55 kW kit, lower cost than the 1.1 kW. A permanently engaged capacitor motor makes it suitable for a house or yard. Other sizes are in our water pumps and booster pumps selection.

Key features

100 L/min output from a 0.75 kW motor
Automatic start and stop
Capacitor permanently engaged, thermal overload protector inside
Brass or stainless steel impeller
Compact and light at 16.1 kg net

Where it works

It suits a farm homestead in the Waterberg or a smallholding in Gauteng that boosts pressure from a rainwater tank. It also feeds sprinkler lines and vegetable tunnels, and works for aquaculture water supply. A bigger flow is available in 1.1 kW monoblock pump, pump only, or add a tank with 5000 L tank with a 0.75 kW monoblock pump.

Installation notes: mount the pump on a firm, level base close to the water source and keep the suction line short, airtight and rising gently towards the pump so air cannot collect. Fit a foot valve wherever the pump lifts water, and fill the pump body before the first start. Rated flow is 100 L/min (6 m³/h), so choose pipe sizes that do not choke it and keep the run as straight as you can. Size the cable and breaker for the motor, and let a qualified electrician make the connection.

What’s in the box

0.75 kW monoblock pump
Automatic flow-control switch
Lead-out cable
Pipework and fittings not included

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days. Delivery is free on orders of R20,000 or more (VAT incl.). The shipping weight is 17.2 kg, which falls in our R550 delivery band (up to 30 kg). Ask us for the warranty terms on this model.

Questions about this product

Is the switch already wired?

The switch is supplied in the kit with the lead-out cable, but you connect it into your supply and pipework. Use a qualified electrician for the wiring and have the pump primed before starting. The switch senses flow, so set it up on the outlet pipe where the pump discharges.

What is the difference between this kit and the pump only?

The kit adds the automatic flow switch and lead-out cable. The pump alone has the same performance, 100 L/min at 32 m, but you need your own control. Choose the kit when you want automatic start and stop out of the box, and the pump only when you already own a controller.

How far can it lift from a tank below?

Suction lift is up to 6 m with a foot valve, depending on altitude. At Highveld altitudes expect less than at the coast. Keep the suction pipe short and airtight. Altitude lowers the practical lift, and a long or leaking suction pipe will cut it further.

What does delivery cost?

This item ships at 17.2 kg, so it falls in our up to 30 kg delivery band at R550. Our own trucks deliver from Polokwane to all nine provinces in 1 to 3 days. Orders of R20,000 or more (VAT incl.) ship free. Delivery fees are set by total order weight, so adding other items to the order can move it into a heavier band.
