1200 L Slim Tank with 0.55 kW Monoblock Pump with Controller
SKU KMN-WATR-0140
A 1200 litre slimline tank paired with a 0.55 kW monoblock water pump with controller, for farms, homesteads and sites across South Africa, delivered from Polokwane.
R3 118,27
- 1200 L tank and 0.55 kW monoblock water pump with controller supplied as one combo
- 92 L/min (5.5 m³/h) at up to 26 m head
- 220 to 240 V, 50 Hz, single-phase
- Ships at 44.1 kg, delivered nationwide from Polokwane, VAT incl.
Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details
Specifications
| Tank capacity | 1200 L |
|---|---|
| Tank material | Rotomoulded polyethylene (LLDPE) |
| Pump type | Monoblock water pump with controller |
| Flow rate | 92 L/min (5.5 m³/h) |
| Max head / pressure | 26 m, 8 bar max operating pressure |
| Voltage / phase | 220 to 240 V, 50 Hz, single-phase |
| Power | 0.55 kW |
| Inlet / outlet | 1" x 1" (25 mm) |
| Self-priming | Foot valve required, suction lift up to 6 m (altitude dependent) |
| Duty cycle | On request |
| Fluid compatibility | Clean water, max 40 °C |
| Control | Automatic pressure control switch, starts at 1.5 bar, max 10 bar, IP65, 10 A |
| Pump materials | Cast-iron body and motor support, brass or stainless impeller, AISI 304 shaft, graphite/ceramic seal |
| Motor protection / installation | Thermal overload protector in winding |
| Warranty | Tank: 1 to 2 years, depending on the model |
| Net weight | 43.0 kg |
| Shipping weight | 44.1 kg |
| Dimensions | Tank Ø 955 × H 1800 mm |
Description
Overview
This 1200 litre tank with a 0.55 kW monoblock water pump with controller is a matched water storage and pressure set, supplied together so you can store water and pump it from one order. The 1200 litre tank and 0.55kw monoblock pump combo gives you 92 L/min (5.5 m³/h) at up to 26 m head. The monoblock is a compact centrifugal pump with low-noise running, and an automatic pressure control switch starts it at 1.5 bar and stops it when taps close.
The 1200 L slimline tank is a vertical rotomoulded polyethylene (LLDPE) tank measuring 955 mm across and 1800 mm tall, a squatter shape that suits spots with limited height. Compare the 1000 L Slim Tank with 0.75 kW Monoblock Pump with Controller and the 1000 L Slim Tank with 0.55 kW Monoblock Pump with Controller, or browse all tank and pump combo kits.
Key features
- 1200 L slimline vertical tank in rotomoulded LLDPE
- 955 mm diameter and 1800 mm height, lower than the 1000 L slim tank
- Compact centrifugal monoblock with low-noise running
- Automatic pressure control switch, starts at 1.5 bar, rated to 10 bar
- Overload protection in the motor winding
Where it works
A 1200 L tank gives a little more reserve than a 1000 L unit and stands about 1.8 m tall. The monoblock’s flow suits homestead pressure, drip lines, stock troughs and wash-down points on a Free State grain farm or a Limpopo citrus block. On the right site it works as rainwater harvesting, a borehole buffer or a back-up supply for load-shedding days and municipal outages. Use clean water only, at no more than 40 °C.
What’s in the box
- 1 x 1200 L slimline vertical water tank
- 1 x 0.55 kW monoblock water pump with controller
- Automatic pressure control switch
- Suction pipe, foot valve and fittings are not listed with this combo, so ask us if you need a fitting kit
Delivery and warranty
Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days. Shipping weight is 44.1 kg, so delivery falls in the 30 to 60 kg, R950 band, and orders of R20,000 or more (VAT incl.) ship free. The tank carries a warranty of 1 to 2 years, depending on the model, confirmed on your quote. Ask us for the pump warranty terms.
Questions about this product
Do you deliver the 1200 L tank and pump combo to Klerksdorp?
Yes, we deliver with our own trucks to all nine provinces in 1 to 3 days, including Klerksdorp. This combo ships at 44.1 kg, which falls in the 30 to 60 kg, R950 delivery band. Orders of R20,000 or more (VAT incl.) get free delivery.
How much water does the 0.55 kW monoblock pump move?
It delivers up to 92 L/min (5.5 m³/h) at up to 26 m head, enough for a homestead, a trough line or small drip blocks. For longer climbs or higher pressure, the peripheral or Intelli pumps give more head. Always prime the pump and fit a foot valve.
Does the 1200 L tank need a base?
Yes. A slim tank must sit on a level, properly prepared base or a tank stand and stay in place once full. A full 1200 L tank holds about 1.2 tonnes of water, so make the slab or stand strong enough. The tank measures 955 mm across.
Can I run this pump off a generator or inverter during load-shedding?
The pump needs single-phase mains power. A generator or inverter can run it if it copes with the motor's starting surge, which is higher than the running load. Tell us the 0.55 kW pump you are looking at and we will help you check the supply is big enough. Never run the pump dry.
Nationwide delivery from Polokwane
Delivered to all nine provinces in 1 to 3 days
We deliver the 1200 L Slim Tank with 0.55 kW Monoblock Pump with Controller with our own trucks to Johannesburg, Pretoria, Cape Town, Durban, Gqeberha, Bloemfontein, Polokwane, Mbombela, Thohoyandou, Mokopane, Mahikeng, Tzaneen, Stellenbosch and Welkom, and to farms, mines and sites in between. This item ships in the R950 delivery band (30 to 60 kg). Orders of R20,000 or more deliver free with code KH027.
Pairs well with
-
KMN-WATR-0194
1.1 kW Monoblock Pump Kit with Flow Switch, 125 L/min, 37 m
- 1.1 kW kit
- 125 L/min
- 37 m head
-
KMN-WATR-0133
1000 L Slim Tank with 0.75 kW Monoblock Pump with Controller
- 1000 L tank
- 0.75 kW
- 100 L/min
-
KMN-WATR-0131
1000 L Slim Tank with 0.55 kW Monoblock Pump with Controller
- 1000 L tank
- 0.55 kW
- 92 L/min
-

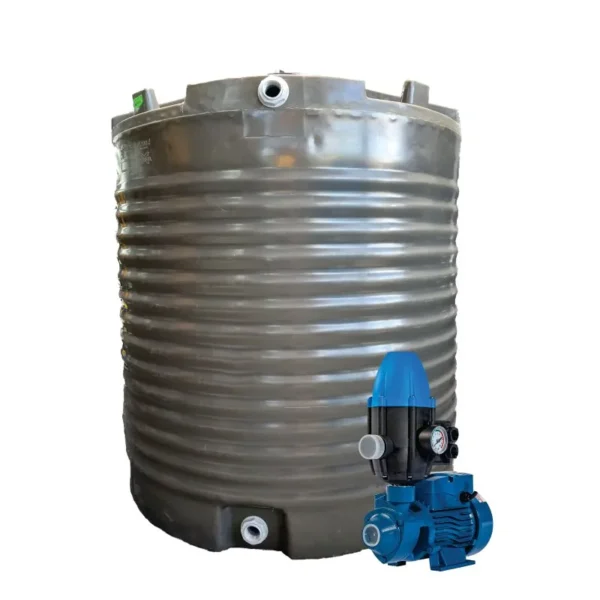

KMN-WATR-0163
