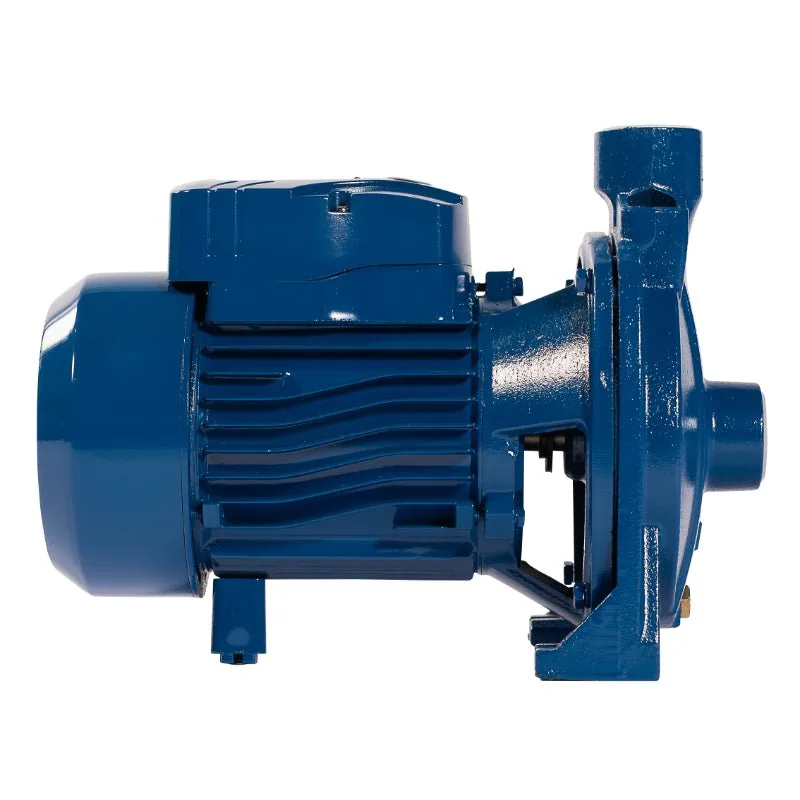

0.75 kW monoblock pump only, 100 L/min, cast iron body, main view

0.75 kW Monoblock Pump Only, 100 L/min, 32 m Head, 220 V

Name: 0.75 kW Monoblock Pump Only, 100 L/min, 32 m Head, 220 V
SKU: KMN-WATR-0193
Price: 1385.65 ZAR
Availability: InStock

SKU KMN-WATR-0193

A 0.75 kW single-phase monoblock pump, supplied as the pump only, giving 100 L/min at up to 32 m, delivered nationwide from Polokwane.

R1 385,65

100 L/min (6 m³/h) at up to 32 m
Pump only, add your own control
220 V single-phase motor, 2850 rpm
Cast-iron body, brass or stainless impeller

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Flow rate	100 L/min (6 m³/h)
Max head / pressure	32 m
Voltage / phase	220 V, single-phase, 2850 rpm
Power	0.75 kW
Inlet / outlet	On request
Self-priming	Not stated (suction lift up to 6 m needs a foot valve)
Duty cycle	On request
Fluid compatibility	Clean liquids, max 40 °C
Pump body	Cast iron body and motor support
Impeller	Brass or stainless steel
Shaft and seal	AISI 304 stainless shaft, graphite/ceramic mechanical seal
Motor protection	Thermal overload protector built into the winding
Max suction lift	Up to 6 m with a foot valve, depending on altitude
Net weight	13.4 kg
Shipping weight	14.3 kg
Dimensions	On request

Description

Overview

This 0.75 kW monoblock pump only is a clean-water centrifugal pump delivering 100 L/min at up to 32 m head, for people who want to fit their own switch, tank or controller.

The motor runs on single-phase 220 V with a permanently engaged capacitor and a thermal protector in the winding. Suction lift reaches 6 m with a foot valve. The kit version in water pumps and booster pumps adds the flow switch and cable.

Key features

Single-stage centrifugal pump for clean liquids
Cast-iron body, AISI 304 shaft, graphite/ceramic seal
Thermal overload protection inside the winding
Easy to install in a compact footprint
Clean liquids up to 40 °C

Where it works

It is used for sprinkler and garden irrigation, vegetable greenhouse supply and tap-water pressurisation. Farmers in KZN and Mpumalanga also fit it as a replacement pump on existing tank lines. See 0.55 kW monoblock pump, pump only for the 0.55 kW option, or 0.55 kW peripheral pump kit for a peripheral pump with higher head.

Installation notes: mount the pump on a firm, level base close to the water source and keep the suction line short, airtight and rising gently towards the pump so air cannot collect. Fit a foot valve wherever the pump lifts water, and fill the pump body before the first start. Rated flow is 100 L/min (6 m³/h), so choose pipe sizes that do not choke it and keep the run as straight as you can. Size the cable and breaker for the motor, and let a qualified electrician make the connection.

What’s in the box

0.75 kW monoblock pump (pump only)
Switch, cable and fittings not included

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days. Delivery is free on orders of R20,000 or more (VAT incl.). The shipping weight is 14.3 kg, which falls in our R550 delivery band (up to 30 kg). Ask us for the warranty terms on this model.

Questions about this product

Is this pump self-priming?

Not as supplied. Suction lift reaches 6 m only with a foot valve, so fill the pump body with water for each fresh start and keep the suction line airtight. Drain-back and air leaks are the usual causes of lost prime, so check the foot valve and unions first.

Can I use it for drinking water supply?

It pumps clean water, but we do not claim drinking-water approval for this model. If potable standards matter on your site, ask us before you buy. Rainwater and borehole water both work, but a filter keeps sand and rust flakes out of the impeller.

Why is the weight different from the kit?

The pump alone is 13.4 kg net, and the kit adds the switch and cable. Both fall in the cheapest delivery band, up to 30 kg at R550, so the difference does not change what you pay for delivery.

Do you deliver to remote farms?

This item ships at 14.3 kg, so it falls in our up to 30 kg delivery band at R550. Our own trucks deliver from Polokwane to all nine provinces in 1 to 3 days. Orders of R20,000 or more (VAT incl.) ship free. Delivery fees are set by total order weight, so adding other items to the order can move it into a heavier band.

Nationwide delivery from Polokwane

Delivered to all nine provinces in 1 to 3 days

We deliver the 0.75 kW Monoblock Pump Only, 100 L/min, 32 m Head, 220 V with our own trucks to Johannesburg, Pretoria, Cape Town, Durban, Gqeberha, Bloemfontein, Polokwane, Mbombela, Welkom, George, Klerksdorp, Pietermaritzburg, East London and Secunda, and to farms, mines and sites in between. This item ships in the R550 delivery band (up to 30 kg). Orders of R20,000 or more deliver free with code KH027.
