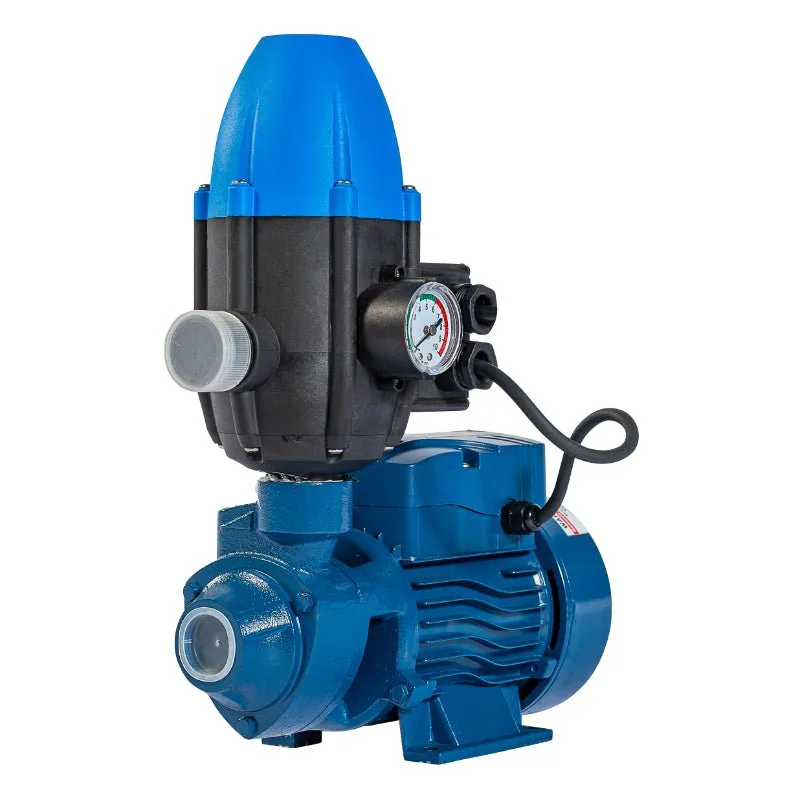

0.37 kW peripheral pump kit with flow switch, 34 L/min, main view

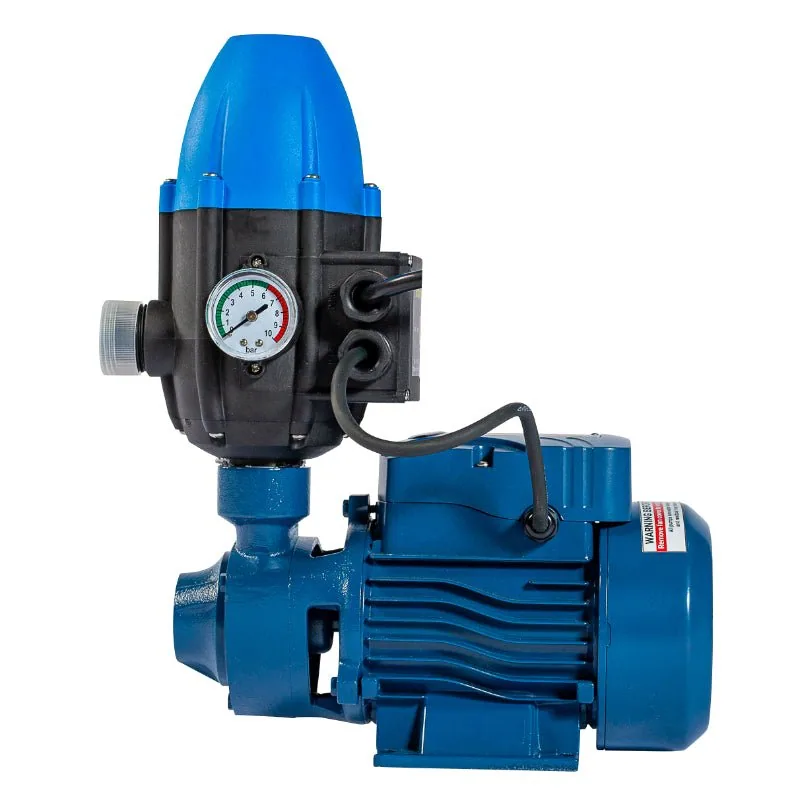

0.37 kW peripheral pump kit with flow switch, 34 L/min, angle view

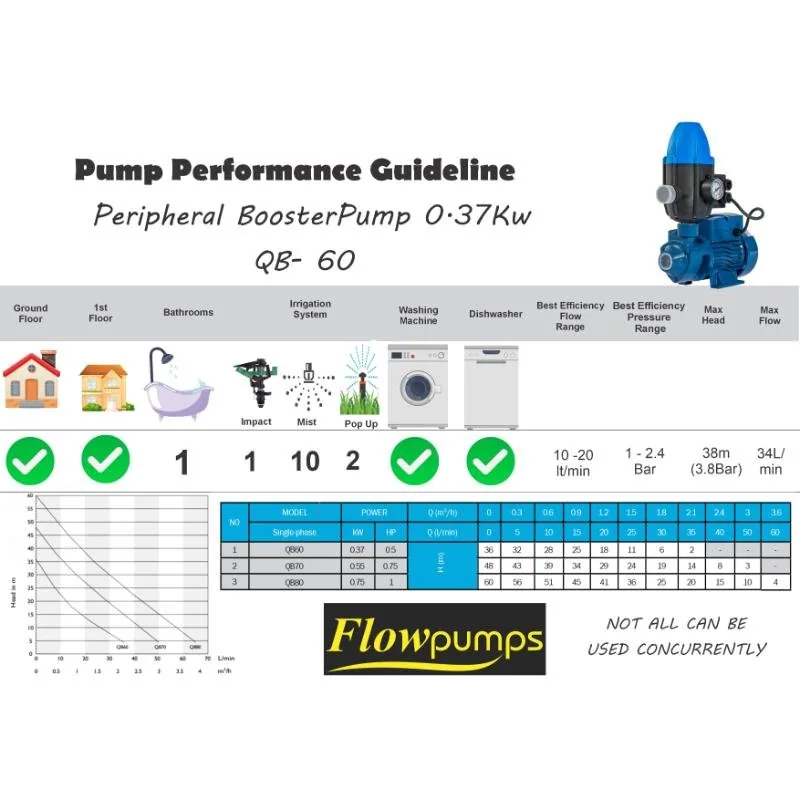

0.37 kW peripheral pump kit with flow switch, 34 L/min, detail view

0.37 kW Peripheral Pump Kit with Flow Switch, 34 L/min, 36 m

Name: 0.37 kW Peripheral Pump Kit with Flow Switch, 34 L/min, 36 m
SKU: KMN-WATR-0196
Price: 1227.56 ZAR
Availability: InStock

SKU KMN-WATR-0196

A compact 0.37 kW peripheral pump kit with flow switch and cable, 34 L/min at up to 36 m, for gardens and small homes across South Africa.

R1 227,56

Smallest peripheral kit: 34 L/min, 36 m head
Flow switch and lead-out cable included
230 V single-phase, thermal overload built in
Light body at 7.1 kg net

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Flow rate	34 L/min (2 m³/h)
Max head / pressure	36 m
Voltage / phase	230 V, single-phase, 2850 rpm
Power	0.37 kW
Inlet / outlet	On request
Self-priming	No (suction lift up to 6 m with a foot valve)
Duty cycle	On request, run the pump at least once a week
Fluid compatibility	Clean water without abrasive particles, max 40 °C
Pump body	Cast iron body and motor support
Impeller	Brass, radial peripheral vanes
Shaft and seal	AISI 304 stainless shaft, NBR/graphite/ceramic mechanical seal
Motor protection	Thermal overload protector built into the winding
Max suction lift	Up to 6 m with a foot valve, depending on altitude
Net weight	7.1 kg
Shipping weight	7.6 kg
Dimensions	On request

Description

Overview

This 0.37 kW peripheral pump kit is the entry-level pressure pump in our range, with 34 L/min and up to 36 m head and a switch that starts it when you open a tap.

A peripheral impeller gives good pressure from a small motor, so a 0.37 kW unit can still feed a garden tap or a washing machine. It has a limited flow and does not suit large irrigation. Larger models are listed in water pumps and booster pumps.

Key features

Brass peripheral impeller with radial vanes
Automatic start and stop through the supplied flow switch
Cast-iron body and motor support
NBR/graphite/ceramic mechanical seal
Thermal overload protector in the winding

Where it works

It suits small gardens in Gauteng, cottage and chalet water supply on the KZN coast, and pressure boosting for a single bathroom in a farm outbuilding. For more flow choose 0.55 kW peripheral pump kit; for the pump without a switch see 0.37 kW peripheral pump, pump only.

Installation notes: mount the pump on rubber feet near the water source, with a short airtight suction line and a foot valve and strainer if it lifts water. This model gives 34 L/min (2 m³/h) at 36 m of head, with a maximum working pressure of 8 bar, so do not leave it running against a closed outlet. Run the pump at least once a week, keep sand out of the water, and let a qualified electrician make the electrical connection.

What’s in the box

0.37 kW peripheral pump
Automatic flow-control switch
Lead-out cable
Pipework and fittings not included

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days. Delivery is free on orders of R20,000 or more (VAT incl.). The shipping weight is 7.6 kg, which falls in our R550 delivery band (up to 30 kg). Ask us for the warranty terms on this model.

Questions about this product

Is 34 L/min enough for a house?

For one bathroom or a garden tap, yes. For a whole house with several taps open, move to a 0.55 kW or 0.75 kW pump. Tell us the number of outlets and we will size it. At 34 L/min it also suits a washing machine or a single outdoor tap.

Why run it once a week?

Peripheral impellers can stick if left idle. A short run each week keeps the impeller free. If it will sit for months, drain and flush it first. Skipping the weekly run is the most common reason a peripheral pump will not start after a long idle spell.

Can it pump hot water?

No. It is for clean water up to 40 °C and for liquids that are not chemically aggressive to the pump materials. Keep abrasives like sand out. Warm water also shortens seal life, so keep the pump cool and out of the sun.

What is the delivery cost?

This item ships at 7.6 kg, so it falls in our up to 30 kg delivery band at R550. Our own trucks deliver from Polokwane to all nine provinces in 1 to 3 days. Orders of R20,000 or more (VAT incl.) ship free. Delivery fees are set by total order weight, so adding other items to the order can move it into a heavier band.
