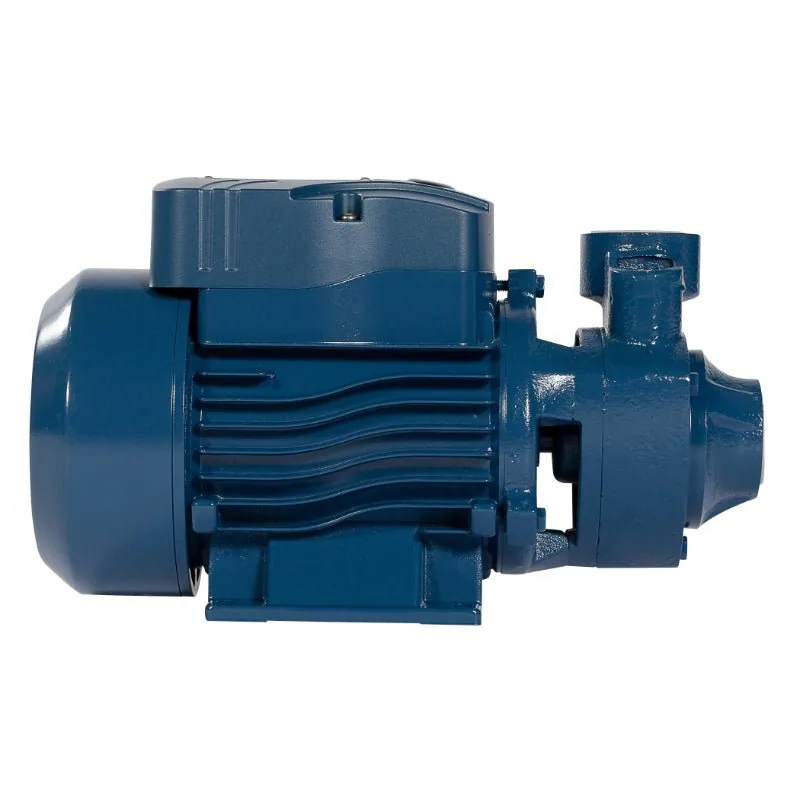

0.75 kW Peripheral Water Pump Only, 60 L/min, 60 m Head
SKU KMN-WATR-0201
A 0.75 kW peripheral water pump, supplied alone, giving 60 L/min at up to 60 m for high-pressure work across South Africa.
R1 112,79
- Up to 60 m head, the highest of the pump-only range
- 60 L/min flow, 8 bar maximum pressure
- 9.4 kg net, single-phase 230 V
- Cast-iron body, thermal overload protection
Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details
Specifications
| Flow rate | 60 L/min (3.6 m³/h) |
|---|---|
| Max head / pressure | 60 m |
| Voltage / phase | 230 V, single-phase, 2850 rpm |
| Power | 0.75 kW |
| Inlet / outlet | On request |
| Self-priming | No (suction lift up to 6 m with a foot valve) |
| Duty cycle | On request, run the pump at least once a week |
| Fluid compatibility | Clean water without abrasive particles, max 40 °C |
| Pump body | Cast iron body and motor support |
| Impeller | Brass, radial peripheral vanes |
| Shaft and seal | AISI 304 stainless shaft, NBR/graphite/ceramic mechanical seal |
| Motor protection | Thermal overload protector built into the winding |
| Max suction lift | Up to 6 m with a foot valve, depending on altitude |
| Net weight | 9.4 kg |
| Shipping weight | 10.1 kg |
| Dimensions | On request |
Description
Overview
This 0.75 kW peripheral water pump only is the highest-pressure pump-only unit here: up to 60 m head at 60 L/min and 9.4 kg net.
It suits drip and micro-sprinkler systems where pressure matters more than volume. It has no switch or controller, so wire it into your own pressure control. Compare the monoblock options in water pumps and booster pumps if you need more litres per minute.
Key features
- Up to 60 m head and 8 bar maximum pressure
- Peripheral impeller with radial vanes
- AISI 304 stainless shaft
- Thermal overload protector in the copper winding
- Designed for clean, non-aggressive liquids
Where it works
Typical jobs are drip and micro irrigation in the Western Cape, feeding roof tanks in Gauteng and pressure boosting at agricultural pack houses in Limpopo. Choose 0.75 kW peripheral pump kit for a kit with the switch, or 0.55 kW peripheral pump, pump only for a lower-power option.
Installation notes: mount the pump on rubber feet near the water source, with a short airtight suction line and a foot valve and strainer if it lifts water. This model gives 60 L/min (3.6 m³/h) at 60 m of head, with a maximum working pressure of 8 bar, so do not leave it running against a closed outlet. Run the pump at least once a week, keep sand out of the water, and let a qualified electrician make the electrical connection.
What’s in the box
- 0.75 kW peripheral pump (pump only)
- Switch, cable and fittings not included
Delivery and warranty
Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days. Delivery is free on orders of R20,000 or more (VAT incl.). The shipping weight is 10.1 kg, which falls in our R550 delivery band (up to 30 kg). Ask us for the warranty terms on this model.
Questions about this product
How much head does it really give?
Up to 60 m at 60 L/min, with a maximum operating pressure of 8 bar. Flow drops as head rises, so use the numbers as the best-case figures. At the lower end of its range it moves more water, so choose the operating point with your fitting sizes in mind.
Do I need a pressure vessel?
A small pressure vessel reduces start-ups on drip systems, but it is optional. Fit a pressure switch to start and stop the pump automatically. Without one, short bursts of use cause frequent start-ups, which wear the pump sooner than steady running.
Is it suitable for borewater with sand?
No. Peripheral pumps need clean water without abrasive particles. Add a filter or use a different pump for sandy water. A basic inlet strainer or filter is cheap protection and worth fitting on any peripheral pump. Sand wears the brass impeller and the seal quickly, so a filter pays for itself.
How much is delivery?
This item ships at 10.1 kg, so it falls in our up to 30 kg delivery band at R550. Our own trucks deliver from Polokwane to all nine provinces in 1 to 3 days. Orders of R20,000 or more (VAT incl.) ship free. Delivery fees are set by total order weight, so adding other items to the order can move it into a heavier band.
