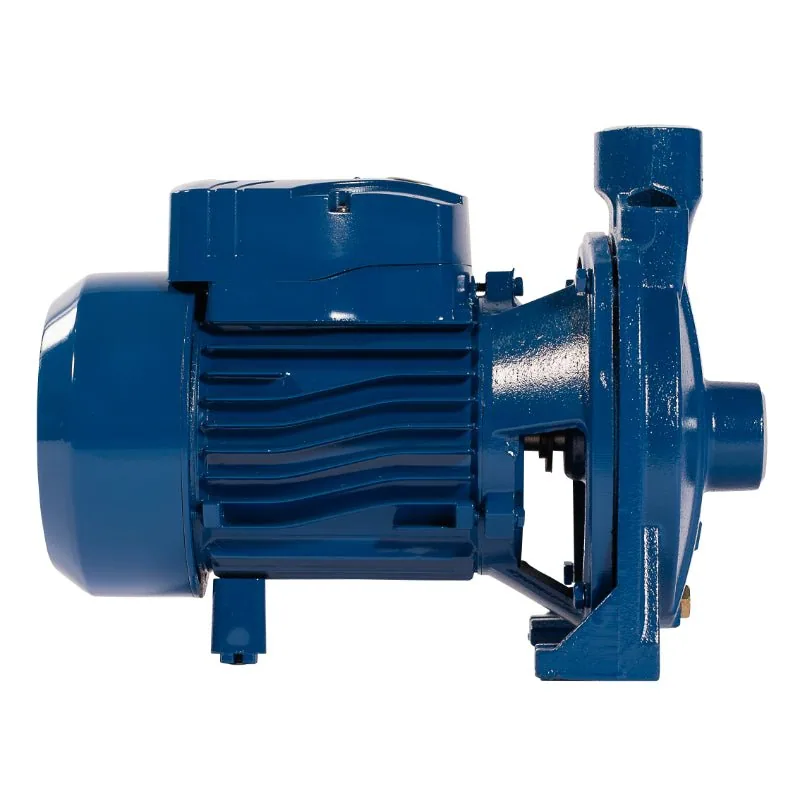

0.55 kW cast-iron monoblock pump only, 92 L/min, main view

0.55 kW Monoblock Pump Only, 92 L/min, 26 m Head, 230 V

Name: 0.55 kW Monoblock Pump Only, 92 L/min, 26 m Head, 230 V
SKU: KMN-WATR-0191
Price: 1231.81 ZAR
Availability: InStock

SKU KMN-WATR-0191

A 0.55 kW cast-iron monoblock pump, supplied as the pump only, giving 92 L/min at 26 m for tank, garden and farm duties across South Africa.

R1 231,81

Pump only, bring your own switch or pressure control
92 L/min at up to 26 m head
230 V single-phase, 2850 rpm
Cast-iron body, graphite/ceramic seal

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Flow rate	92 L/min (5.5 m³/h)
Max head / pressure	26 m
Voltage / phase	230 V, single-phase, 2850 rpm
Power	0.55 kW
Inlet / outlet	On request
Self-priming	No (suction lift up to 6 m with a foot valve)
Duty cycle	On request
Fluid compatibility	Clean water, max 40 °C
Pump body	Cast iron body and motor support
Impeller	Brass or stainless steel
Shaft and seal	AISI 304 stainless shaft, graphite/ceramic mechanical seal
Motor protection	Thermal overload protector built into the winding
Max suction lift	Up to 6 m with a foot valve, depending on altitude
Net weight	13 kg
Shipping weight	13.9 kg
Dimensions	On request

Description

Overview

This 0.55 kW monoblock pump only is for installers and DIY users who already have a pressure switch or controller and need the pump itself. It delivers up to 92 L/min (5.5 m³/h) at 26 m head.

The single-stage centrifugal pump has a cast-iron body and motor support, a brass or stainless impeller and an AISI 304 shaft, with thermal protection in the winding. It is heavier at 13 kg than the lighter-body 0.55 kW model. If you want the switch and cable included, look at the kit in water pumps and booster pumps.

Key features

Single-stage centrifugal design for clean water
Thermal overload protector in the motor winding
Pump body and motor support in cast iron
Good for replacing a failed pump on an existing system
Suction lift to 6 m with a foot valve

Where it works

Typical uses are replacing a worn pump on a farm tank line in the Free State, domestic pressure boosting, garden and sprinkler irrigation, and greenhouse water supply. Pair it with your own pressure switch. The kit version is 0.55 kW monoblock pump kit with flow switch, and a stronger pump is 0.75 kW monoblock pump, pump only.

Installation notes: mount the pump on a firm, level base close to the water source and keep the suction line short, airtight and rising gently towards the pump so air cannot collect. Fit a foot valve wherever the pump lifts water, and fill the pump body before the first start. Rated flow is 92 L/min (5.5 m³/h), so choose pipe sizes that do not choke it and keep the run as straight as you can. Size the cable and breaker for the motor, and let a qualified electrician make the connection.

What’s in the box

0.55 kW monoblock pump (pump only)
Switch, cable and fittings not included

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days. Delivery is free on orders of R20,000 or more (VAT incl.). The shipping weight is 13.9 kg, which falls in our R550 delivery band (up to 30 kg). Ask us for the warranty terms on this model.

Questions about this product

Can I use it without a pressure switch?

Not for automatic supply. As a pump only, it runs when you power it. Add your own pressure switch or controller, or take the kit with the flow switch and cable already supplied. A simple pressure switch with a small pressure vessel will make the pump start and stop on demand without much fuss.

Will it fit where my old pump was?

Port and mounting sizes are listed on request, so send us the old pump details or a photo and we will compare. Power and performance are 0.55 kW, 92 L/min and 26 m head. Mounting-hole centres and port threads can differ between models, so measure the old unit before you order a replacement.

Can it run on a generator?

Yes, if the generator can handle the starting load of a 0.55 kW single-phase motor, typically a few times its running current. An inverter must be sized the same way. Long extension cables cause voltage drop and hard starts, so keep the lead short and use a heavy-gauge cable.

How much is delivery?

This item ships at 13.9 kg, so it falls in our up to 30 kg delivery band at R550. Our own trucks deliver from Polokwane to all nine provinces in 1 to 3 days. Orders of R20,000 or more (VAT incl.) ship free. Delivery fees are set by total order weight, so adding other items to the order can move it into a heavier band.

Nationwide delivery from Polokwane

Delivered to all nine provinces in 1 to 3 days

We deliver the 0.55 kW Monoblock Pump Only, 92 L/min, 26 m Head, 230 V with our own trucks to Johannesburg, Pretoria, Cape Town, Durban, Gqeberha, Bloemfontein, Polokwane, Mbombela, Stellenbosch, Pietermaritzburg, Kimberley, Tzaneen, East London and George, and to farms, mines and sites in between. This item ships in the R550 delivery band (up to 30 kg). Orders of R20,000 or more deliver free with code KH027.
