1000 L Slim Tank with 1.5 kW VSP Booster Pump System with VSD
SKU KMN-WATR-0137
A 1000 litre slimline tank paired with a 1.5 kW VSP constant-pressure booster pump system, for farms, homesteads and sites across South Africa, delivered from Polokwane.
R8 937,81
- 1000 L tank and 1.5 kW VSP constant-pressure booster pump system supplied as one combo
- 108 L/min (6.5 m³/h) at up to 60 m head
- 220 V, single-phase
- Ships at 47.4 kg, delivered nationwide from Polokwane, VAT incl.
Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details
Specifications
| Tank capacity | 1000 L |
|---|---|
| Tank material | Rotomoulded polyethylene (LLDPE) |
| Pump type | VSP constant-pressure booster pump system |
| Flow rate | 108 L/min (6.5 m³/h) |
| Max head / pressure | 60 m |
| Voltage / phase | 220 V, single-phase |
| Power | 1.5 kW |
| Inlet / outlet | On request |
| Self-priming | On request |
| Duty cycle | On request |
| Fluid compatibility | Clean water, max 40 °C |
| Control | VSD with pressure transducer, constant pressure across multiple outlets |
| Pump materials | On request |
| Motor protection / installation | On request |
| Warranty | Tank: 1 to 2 years, depending on the model |
| Net weight | 45.9 kg |
| Shipping weight | 47.4 kg |
| Dimensions | Tank Ø approx. 800-840 × H 2000-2060 mm (equivalent tanks) |
Description
Overview
This 1000 litre tank with a 1.5 kW VSP constant-pressure booster pump system is a matched water storage and pressure set, supplied together so you can store water and pump it from one order. The 1000 litre tank and 1.5kw vsp booster pump system combo gives you 108 L/min (6.5 m³/h) at up to 60 m head. The VSP is a constant-pressure system: a variable-speed drive reads a pressure transducer and holds steady pressure across several outlets at once.
The 1000 L slimline tank is a vertical rotomoulded polyethylene (LLDPE) tank with a narrow footprint of about 800 to 840 mm across and roughly 2 m tall, so it fits along a wall or between buildings. Compare the 1000 L Slim Tank with 0.75 kW Intelli VSD Booster Pump and the 1200 L Slim Tank with 1.5 kW VSP Booster Pump System with VSD, or browse all tank and pump combo kits.
Key features
- 1000 L slimline vertical tank in rotomoulded LLDPE
- Narrow footprint, about 800 to 840 mm in diameter
- Variable-speed drive with pressure transducer
- Constant pressure across multiple outlets
- 60 m head for long runs or elevated delivery
Where it works
A 1000 L tank is a practical reserve for a household or a few troughs. Its steady pressure suits a farm homestead with several taps, a lodge, or a packhouse wash line in Limpopo or the Western Cape. It also works as a rainwater harvesting tank or a borehole buffer, giving a household a reserve when municipal supply fails. Use clean water only, at no more than 40 °C.
What’s in the box
- 1 x 1000 L slimline vertical water tank
- 1 x 1.5 kW VSP constant-pressure booster pump system
- Pressure transducer and VSD
- Suction pipe, foot valve and fittings are not listed with this combo, so ask us if you need a fitting kit
Delivery and warranty
Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days. Shipping weight is 47.4 kg, so delivery falls in the 30 to 60 kg, R950 band, and orders of R20,000 or more (VAT incl.) ship free. The tank carries a warranty of 1 to 2 years, depending on the model, confirmed on your quote. Ask us for the pump warranty terms.
Questions about this product
Do you deliver the 1000 L tank and pump combo to Mthatha?
Yes, we deliver with our own trucks to all nine provinces in 1 to 3 days, including Mthatha. This combo ships at 47.4 kg, which falls in the 30 to 60 kg, R950 delivery band. Orders of R20,000 or more (VAT incl.) get free delivery.
Will the VSP system hold steady pressure with several taps open?
Yes, that is what it is built for. A pressure transducer feeds the variable-speed drive, which adjusts pump speed so pressure stays constant as outlets open and close. It delivers up to 108 L/min at 60 m head, so tap capacity is still limited by that flow rate.
Does the 1000 L tank need a base?
Yes. A slim tank is tall and narrow, and it must sit on a level, properly prepared base or a tank stand and stay in place once full. A full 1000 L tank holds about a tonne of water. The dimensions are approximate, so confirm the footprint with us before pouring your slab.
Are the pipes and foot valve included in this combo?
The combo is the 1000 L tank plus the 1.5 kW pump with its control. Suction pipe, foot valve, delivery pipe and tank outlet fittings are not listed with it. Tell us your layout and distance from tank to pump, and we will quote the fittings you need alongside it.
Nationwide delivery from Polokwane
Delivered to all nine provinces in 1 to 3 days
We deliver the 1000 L Slim Tank with 1.5 kW VSP Booster Pump System with VSD with our own trucks to Johannesburg, Pretoria, Cape Town, Durban, Gqeberha, Bloemfontein, Polokwane, Mbombela, Richards Bay, Kimberley, eMalahleni, Thohoyandou, Mokopane and Rustenburg, and to farms, mines and sites in between. This item ships in the R950 delivery band (30 to 60 kg). Orders of R20,000 or more deliver free with code KH027.
Pairs well with
-
KMN-WATR-0204
1.1 kW Variable Speed Booster Pump System, i-Prez, 60 m Head
- 1.1 kW VSD
- 16 m³/h
- 60 m head
-
KMN-WATR-0132
1000 L Slim Tank with 0.75 kW Intelli VSD Booster Pump
- 1000 L tank
- 0.75 kW
- 83.3 L/min
-
KMN-WATR-0319

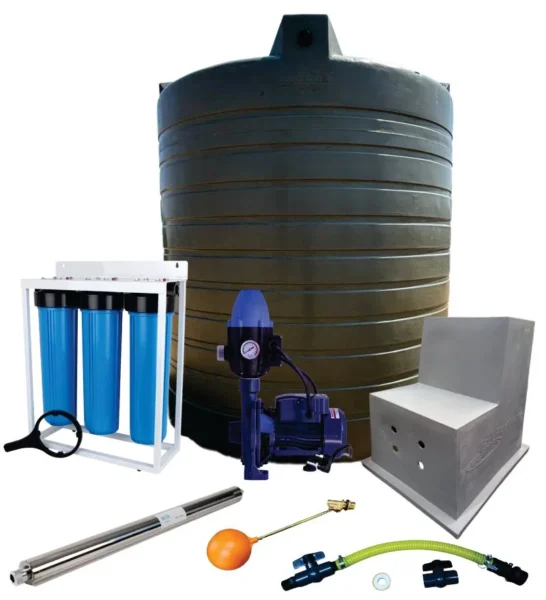

2,500 L Tank Combo, 0.55 kW Monoblock Pump (92 L/min), Filter and UV
