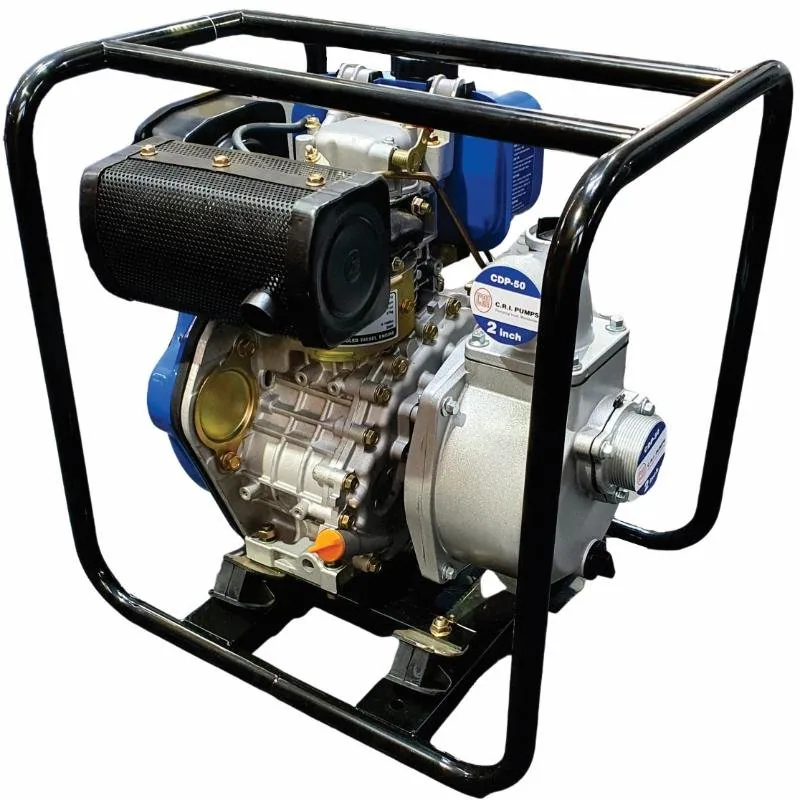

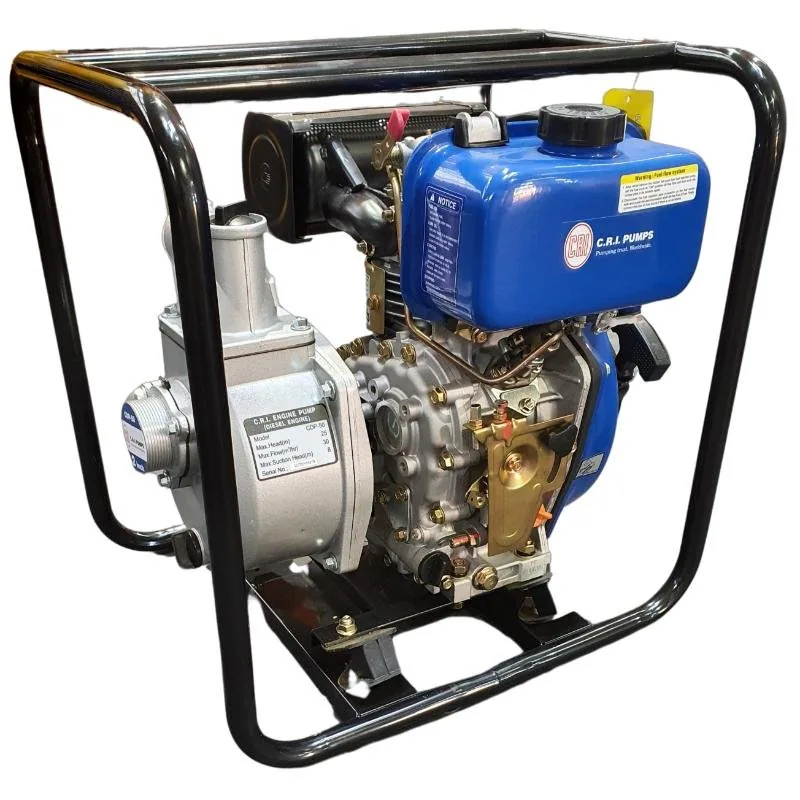

Diesel engine water pump, 2 inch ports, 500 L/min, 25 m head

Diesel water transfer pump with 50 mm ports, side view

Diesel Water Transfer Pump, 2″ Ports, 500 L/min, 25 m Head

Name: Diesel Water Transfer Pump, 2" Ports, 500 L/min, 25 m Head
SKU: KMN-WATR-0156
Price: 9792.09 ZAR
Availability: InStock

SKU KMN-WATR-0156

A recoil-start diesel water pump with 2 inch ports, 500 L/min and 25 m head, for irrigation, tank filling and firefighting, delivered across South Africa.

R9 792,09

Diesel-engine drive: no mains power needed on the lands or at the dam
500 L/min (30 000 L/h) through 50 mm inlet and outlet
6.5 HP (about 4.8 kW), 25 m head (2.5 bar), recoil start
Suits irrigation, spraying, tank filling and fire-water duty

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Flow rate	500 L/min (30 000 L/h)
Max head / pressure	25 m (2.5 bar)
Voltage / phase	N/A (diesel engine)
Power	6.5 HP (about 4.8 kW)
Inlet / outlet	50 mm (2") / 50 mm (2")
Self-priming	On request
Duty cycle	On request
Fluid compatibility	Clean water: firefighting, irrigation, spraying, transfer, tank filling
Engine	Single-cylinder diesel engine, recoil start
Fuel	Diesel
Net weight	36 kg
Shipping weight	38.9 kg
Dimensions	On request

Description

Overview

This is a diesel-engine centrifugal water pump with 50 mm (2 inch) inlet and outlet, moving 500 L/min (30 000 L/h) at up to 25 m of head. It is a clean-water transfer pump, built to be carried to the water rather than wired to a plug point, which is why farmers and contractors keep one on the bakkie. The engine is rated 6.5 HP (about 4.8 kW) and starts on a recoil pull cord, so there is no battery to go flat. The head works out to about 2.5 bar. The pump is not rated for sludge, sand-laden water or chemicals.

Key features

Diesel engine, 6.5 HP (about 4.8 kW), recoil start
500 L/min (30 000 L/h) flow through 50 mm ports
Maximum head 25 m, about 2.5 bar
Self-contained, no electricity needed
Mounted in a protective frame for transport and handling

Where it works

On a Limpopo or Free State farm this pump moves dam water to a tank or a centre-pivot feed line. Spray contractors in the Western Cape use it to fill rigs from a river or reservoir, and mine and municipal crews keep one as fire-water and emergency dewatering backup when the grid is down during load-shedding. It also fills tanks at remote sites with no mains supply. Pair it with a water pump range for fixed duty, or see water tank combo: 5000l water tank and 0.37kW econo peripheral water pump and water tank combo: 1200l slim tank and vsp 1.5kW booster pump system (with vsd) for related equipment.

What’s in the box

Diesel-engine water pump with frame
Recoil starter fitted
Hoses, couplings and fuel not included: ask us for the right 2 inch fittings

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, and delivery is free on orders of R20,000 or more (VAT incl.). This item ships at about 38.9 kg. At that weight delivery is R950 (VAT incl.) if it is the only item on the order. Ask us for the warranty terms on this model.

Questions about this product

What can I use a diesel water pump for?

It handles clean-water jobs: irrigation, spraying, filling tanks, transferring water between dams and tanks, and fire-water duty. At 500 L/min and 25 m head it moves a lot of water quickly, but it is not meant for dirty, sandy or sludgy water, which wears the impeller.

Does it come with hoses and couplings?

Hoses, couplings and fuel are not part of the specification, so budget for them separately. The ports are 50 mm (2 inch). Tell us how far you are pumping and the height you are lifting, and we will recommend suitable suction and delivery hose and the right fittings to go with this pump.

What pressure does this pump actually give at the nozzle?

The specification is 25 m of head, which works out to about 2.5 bar at the pump. Head drops as you add hose length, height and bends, so working pressure at the nozzle will be lower. Tell us the job and we will tell you if this pump is enough.

How much is delivery to my farm?

Delivery is charged by total order weight. This pump ships at about 38.9 kg, which falls in the 30 to 60 kg band, so delivery is R950 (VAT incl.). Orders of R20,000 or more are delivered free. Our own trucks run from Polokwane to all nine provinces in 1 to 3 days.

Nationwide delivery from Polokwane

Delivered to all nine provinces in 1 to 3 days

We deliver the Diesel Water Transfer Pump, 2" Ports, 500 L/min, 25 m Head with our own trucks to Johannesburg, Pretoria, Cape Town, Durban, Gqeberha, Bloemfontein, Polokwane, Mbombela, eMalahleni, East London, Secunda, Mahikeng, Richards Bay and Klerksdorp, and to farms, mines and sites in between. This item ships in the R950 delivery band (30 to 60 kg). Orders of R20,000 or more deliver free with code KH027.
