QB-60 Booster Pump Combo, 0.37 kW, 38 m, Pressure Switch

Description

Overview

This QB-60 combo pairs a 0.37 kW peripheral vane pump with a pressure control switch, so the pump starts and stops on demand instead of running on a manual switch. The pump gives up to 38 m of head and a maximum flow of 25 L/min (1,500 L/h) on clean water.

The cast iron body has brass inserts in the volute to limit mineral build-up, the impeller is brass with radial peripheral vanes, and the motor is a single-phase 220 V, 50 Hz unit with capacitor and thermal overload protector. Ports are 1 inch in and out.

Key features

• Pressure control switch included with the pump

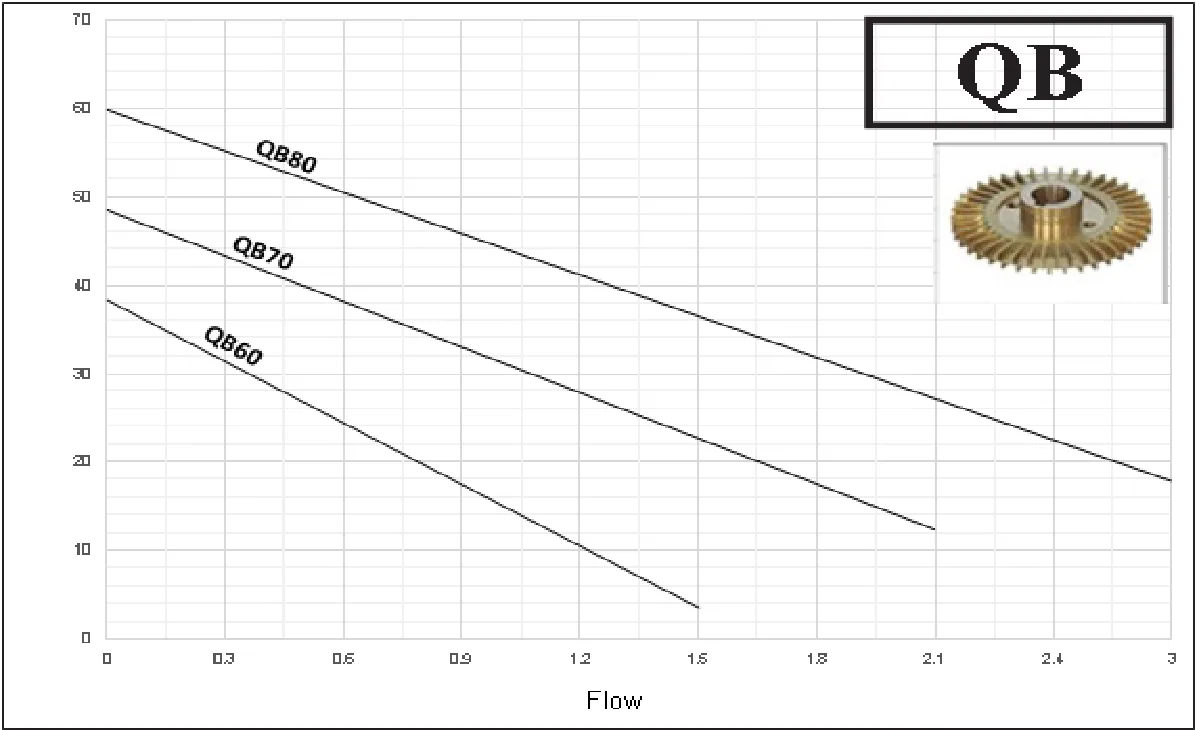

• 38 m maximum head, 22 m at 10 L/min and 11 m at 20 L/min
• Brass impeller, cast iron body with brass volute inserts
• Stainless steel 304 shaft, ceramic-graphite seal
• IP44 motor with thermal overload protector
• The pump alone is also available without the switch

Where it works

Use the combo where a tank sits above or beside a small house and you only need pressure at one or two taps: a farm cottage in the Waterberg, a granny flat in Gauteng, or a guest room on a Limpopo lodge. It is for clean water up to 40 °C with no abrasive particles, and must be installed under a vented cover away from rain and spray. Need only the pump head? The plain version costs less and lets you choose your own controller.

Browse more water booster pumps, or compare with the QB-60 booster pump (pump only) and the QB-70 booster pump combo.

What’s in the box

• 1 x QB-60 peripheral booster pump, 0.37 kW
• Pressure control switch

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, with regular runs to Mbombela, Tzaneen, Polokwane, Pretoria, Richards Bay and Johannesburg. Shipping weight is 7.5 kg, which falls in our up to 30 kg delivery band (R550). Orders of R20,000 or more (VAT incl.) are delivered free. Ask us for the warranty terms on this model.
