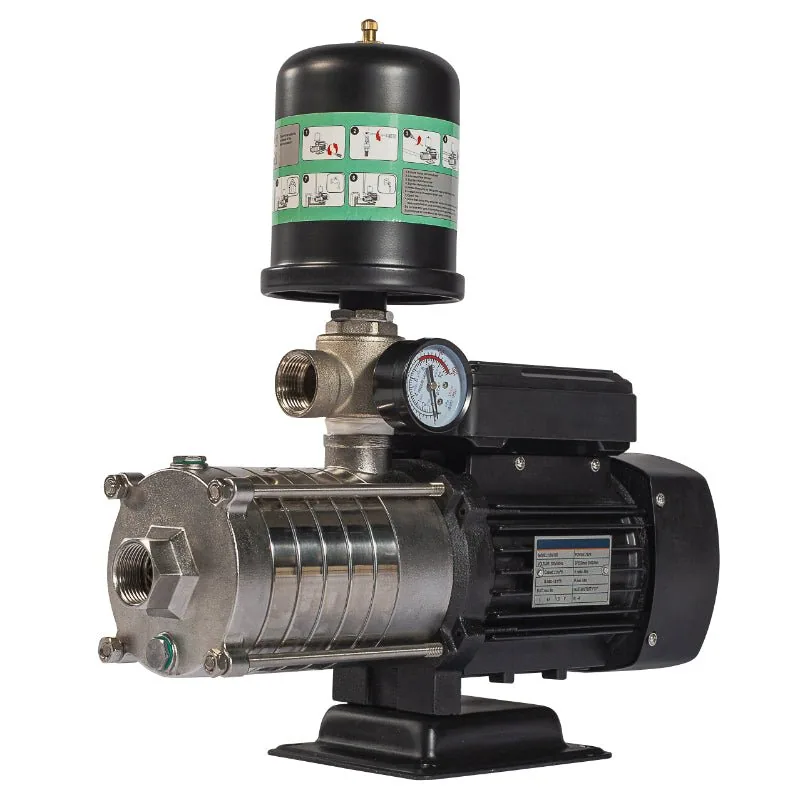

0.75 kW variable-speed VSD booster pump, 83 L/min, main view

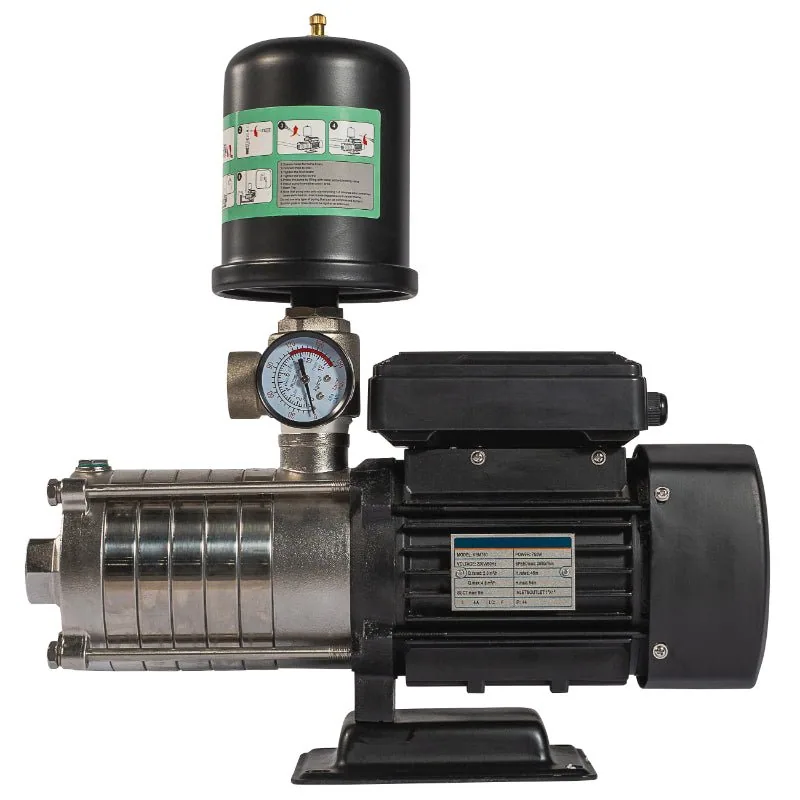

0.75 kW variable-speed VSD booster pump, 83 L/min, angle view

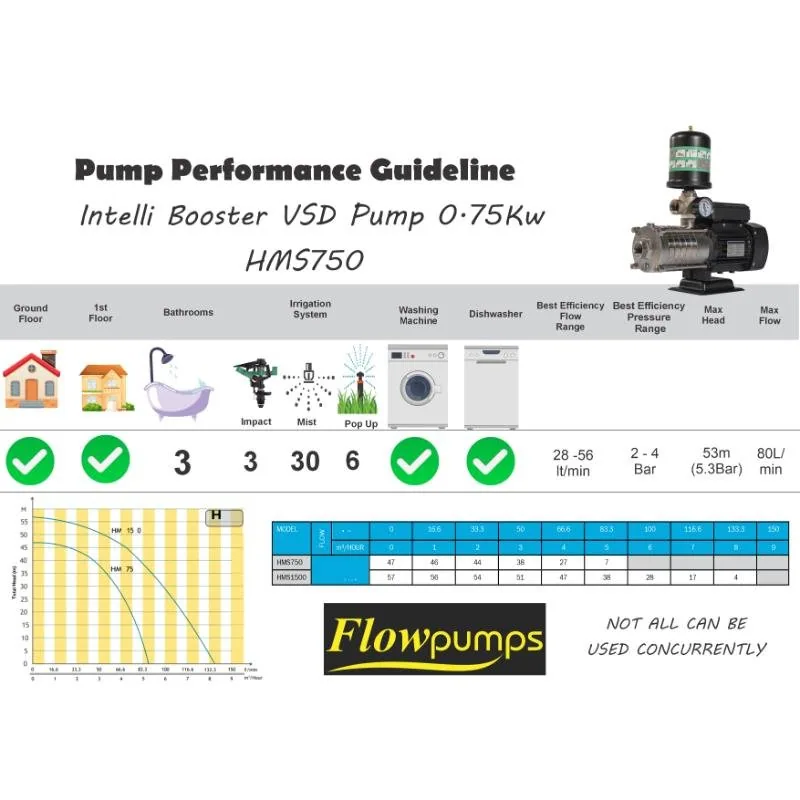

0.75 kW variable-speed VSD booster pump, 83 L/min, detail view

0.75 kW VSD Booster Pump, 83 L/min, 35 m Head, 230 V

Name: 0.75 kW VSD Booster Pump, 83 L/min, 35 m Head, 230 V
SKU: KMN-WATR-0188
Price: 7559.06 ZAR
Availability: InStock

SKU KMN-WATR-0188

A self-priming 0.75 kW variable-speed booster pump for constant household and farm pressure, 83 L/min at up to 35 m, delivered across South Africa.

R7 559,06

Variable-speed drive keeps tap pressure steady
83 L/min flow, up to 35 m head, 230 V single-phase
Self-priming aluminium body, Noryl impeller, 304 stainless shaft
Built-in dry-run, over-current and voltage protection

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Flow rate	83.3 L/min
Max head / pressure	35 m
Voltage / phase	230 V, 50 Hz, single-phase
Power	0.75 kW
Inlet / outlet	On request
Self-priming	Yes
Duty cycle	On request
Fluid compatibility	Clean water, max 40 °C
Pump body	Aluminium
Impeller	Noryl
Shaft and seal	AISI 304 stainless shaft, graphite/ceramic mechanical seal
Protections	Dry-run, over-current, over/under-voltage, overload and abnormal-pressure
Installation	Under a ventilated cover, protected from rain and spray
Max ambient / liquid temperature	40 °C
Net weight	18 kg
Shipping weight	19.3 kg
Dimensions	On request

Description

Overview

This 0.75 kW VSD booster pump replaces a noisy on/off pressure pump with one that adjusts motor speed to the demand, giving a steady 83.3 L/min and up to 35 m head from a normal 230 V supply.

A pressure transducer reads the line pressure and the drive speeds up or slows down to hold it, even with several taps open. A 3-second restart delay and a timed auto-rotation cycle protect the motor and bearings. It can empty wells and feed an irrigation system, within its head limit. See other options in water pumps and booster pumps.

Key features

Automatic start and stop, with energy savings compared to fixed-speed pumps
Constant pressure through a transducer, even with several outlets in use
Protection against dry run, over-current, over/under-voltage, overload and abnormal pressure
Auto-rotation timer keeps the bearings from sticking
Light aluminium body that is simple to carry and install

Where it works

The pump suits houses and guest lodges in Gauteng and KZN that struggle with surging pressure, and farm sheds in Limpopo with a header tank. It must be installed under a ventilated cover, protected from rain and spray. For more flow, step up to 1.5 kW VSD booster pump, or buy the set with a tank, such as 5000 L tank with a 0.75 kW VSD booster pump.

Installation notes: site the unit under a ventilated cover that keeps off rain and spray, close to the tank and with room around it for air to circulate. At 83.3 L/min and 35 m of head, use pipework rated for the pressure you plan to set, and fit a strainer on the inlet if the source carries grit. Size the cable and breaker for the motor, and have a qualified electrician do the wiring.

What’s in the box

0.75 kW VSD booster pump
Installation to be done under a ventilated cover
Pipework and fittings not included

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days. Delivery is free on orders of R20,000 or more (VAT incl.). The shipping weight is 19.3 kg, which falls in our R550 delivery band (up to 30 kg). Ask us for the warranty terms on this model.

Questions about this product

Is this pump quieter than a normal pressure pump?

Generally yes, because the motor does not slam on at full speed every time a tap opens. The variable-speed drive ramps the motor up and down, so you get smoother pressure and lower noise. Real noise depends on how and where you mount it.

Can it sit outside?

Only under a ventilated cover that keeps off rain and water spray. The drive electronics need air to cool but must stay dry. A small pump shed next to the tank is the usual solution. Mount it off the ground on a bracket or plinth, so splashes and ground water cannot reach the electronics.

What liquids can it pump?

Clean water up to 40 °C, without abrasive particles. It is not for chemicals, dirty water or hot water. Use a filter on the inlet if your source carries sand. It also does not suit seawater, fuel or liquids that attack aluminium and Noryl, so ask us if you are unsure about your fluid.

Do you deliver to Rustenburg?

Yes. We deliver to all nine provinces with our own trucks in 1 to 3 days. This pump ships at 19.3 kg, in the up to 30 kg band at R550, or free on orders of R20,000 or more (VAT incl.).
