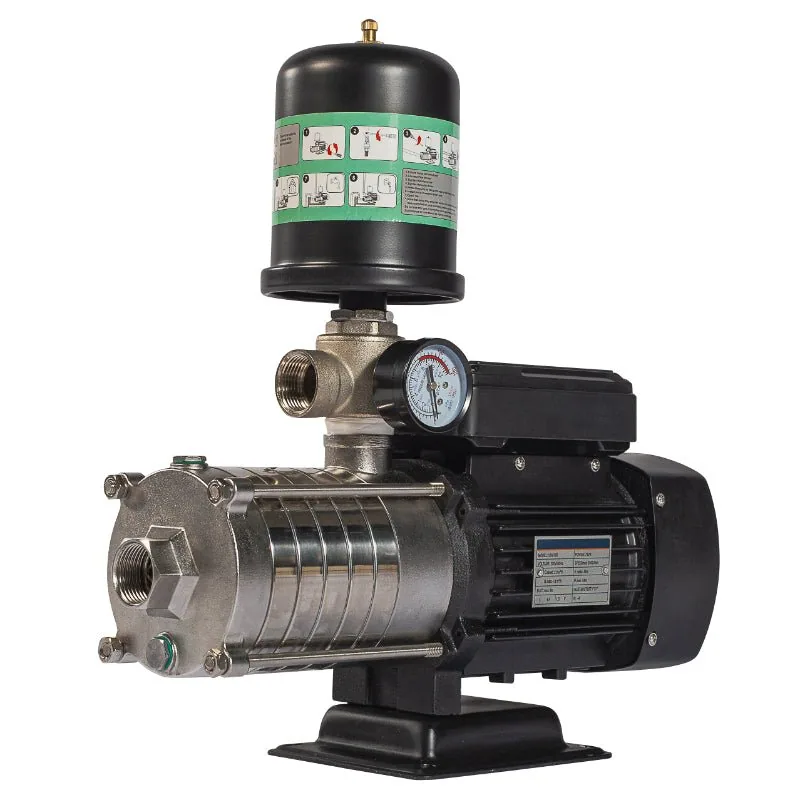

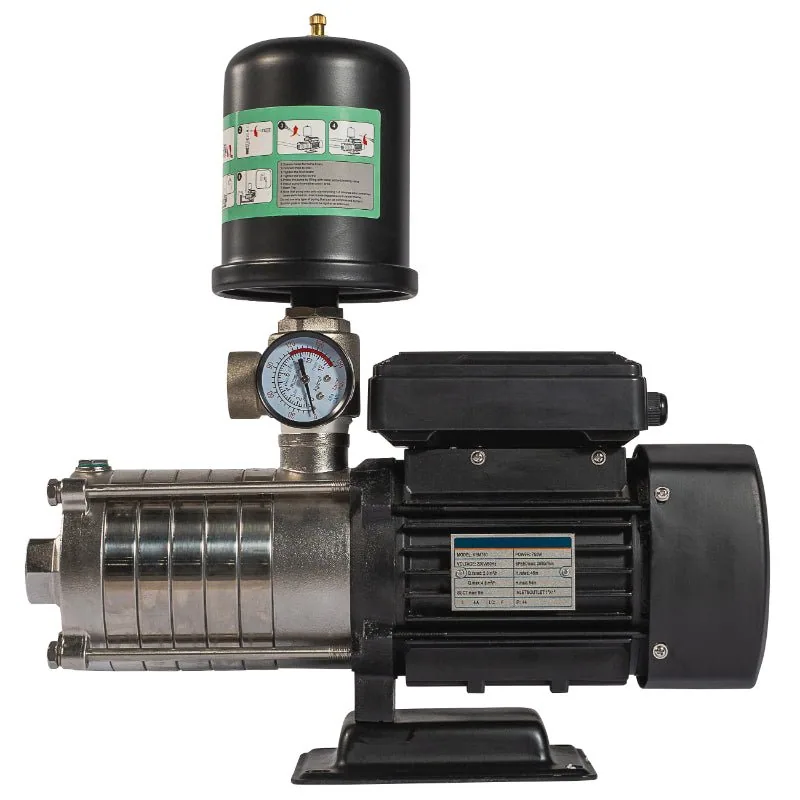

1.5 kW VSD Booster Pump, 133 L/min, 55 m Head, 230 V

Name: 1.5 kW VSD Booster Pump, 133 L/min, 55 m Head, 230 V
SKU: KMN-WATR-0189
Price: 9449.06 ZAR
Availability: InStock

SKU KMN-WATR-0189

A 1.5 kW variable-speed booster pump with 133 L/min flow and 55 m head for larger houses, lodges and farm sheds, delivered across South Africa.

R9 449,06

133 L/min flow and up to 55 m head
Variable-speed drive holds pressure with many outlets open
1.5 kW, 230 V single-phase supply
Aluminium body, Noryl impeller, stainless 304 shaft

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Flow rate	133.3 L/min
Max head / pressure	55 m
Voltage / phase	230 V, 50 Hz, single-phase
Power	1.5 kW
Inlet / outlet	On request
Self-priming	On request
Duty cycle	On request
Fluid compatibility	Clean water, max 40 °C
Pump body	Aluminium
Impeller	Noryl
Shaft and seal	AISI 304 stainless shaft, graphite/ceramic mechanical seal
Protections	Dry-run, over-current, over/under-voltage, overload and abnormal-pressure
Installation	Under a ventilated cover, protected from rain and spray
Max ambient / liquid temperature	40 °C
Net weight	21.4 kg
Shipping weight	22.9 kg
Dimensions	On request

Description

Overview

This 1.5 kW VSD booster pump is the high-output model of the range, moving 133.3 L/min and lifting to 55 m, enough for a large house, a lodge or a packing shed with several outlets running together.

It uses the same protections as the 0.75 kW model, dry-run, over-current, voltage, overload and abnormal-pressure, with a pressure transducer holding the line pressure steady. Because the motor is bigger, the cable and breaker should be sized for it. Compare the smaller pumps in water pumps and booster pumps if your demand is lower.

Key features

133 L/min output, 60% more than the 0.75 kW VSD pump
Head up to 55 m for taller buildings and long pipe runs
Constant-pressure control through a pressure transducer
Restart delay and auto-rotation protect motor and bearings
Graphite/ceramic mechanical seal

Where it works

Use it for guest lodges on the KZN coast, farm houses in the Free State, and packing sheds that wash product under pressure. It also suits mine camp ablutions in Mpumalanga. Mount it under a ventilated cover, out of rain. A smaller option is 0.75 kW VSD booster pump, and a tank set with this pump is 5000 L tank with a 1.5 kW VSD booster pump.

Installation notes: mount the pump on a firm, level base close to the water source and keep the suction line short, airtight and rising gently towards the pump so air cannot collect. Fit a foot valve wherever the pump lifts water, and fill the pump body before the first start. Rated flow is 133.3 L/min, so choose pipe sizes that do not choke it and keep the run as straight as you can. Size the cable and breaker for the motor, and let a qualified electrician make the connection.

What’s in the box

1.5 kW VSD booster pump
Installation to be done under a ventilated cover
Pipework and fittings not included

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days. Delivery is free on orders of R20,000 or more (VAT incl.). The shipping weight is 22.9 kg, which falls in our R550 delivery band (up to 30 kg). Ask us for the warranty terms on this model.

Questions about this product

Will it handle a two-storey house?

Yes. At up to 55 m of head it easily lifts to a first-floor shower and keeps pressure steady when other taps open. A smaller 0.75 kW pump works for modest demand, but this one has headroom. For very long pipe runs or several floors of fixtures open at once, tell us the pipe length and fittings so we can confirm the head.

Is it single-phase?

Yes, it runs on a 230 V, 50 Hz single-phase supply. Size the cable and breaker for a 1.5 kW motor, and have a qualified electrician do the wiring. If your supply is weak or you run on a generator, ask us before you buy so the voltage range and starting load are checked.

Does it protect itself if the tank runs dry?

Yes, it has dry-run protection, plus over-current, over/under-voltage, overload and abnormal-pressure protection. You should still fix the cause quickly, because repeated dry-run stops are hard on any pump. Dry-run protection is a safety net, not a way of working, so check the float, the suction line and any closed valves first.

How much is delivery to KZN?

This item ships at 22.9 kg, so it falls in our up to 30 kg delivery band at R550. Our own trucks deliver from Polokwane to all nine provinces in 1 to 3 days. Orders of R20,000 or more (VAT incl.) ship free. Delivery fees are set by total order weight, so adding other items to the order can move it into a heavier band.
