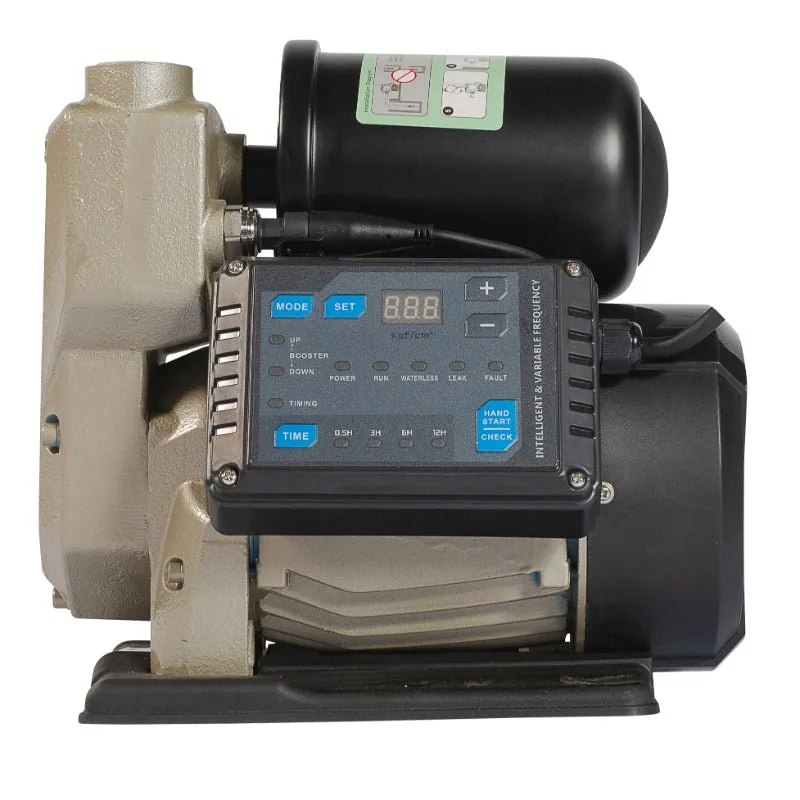

1.5 kW constant-pressure VSD pump system, 108 L/min, main view

1.5 kW constant-pressure VSD pump system, 108 L/min, angle view

1.5 kW Constant-Pressure VSD Pump System, 108 L/min, 60 m, 220 V

Name: 1.5 kW Constant-Pressure VSD Pump System, 108 L/min, 60 m, 220 V
SKU: KMN-WATR-0202
Price: 10028.00 ZAR
Availability: InStock

SKU KMN-WATR-0202

A 1.5 kW constant-pressure VSD pump system, 108 L/min at up to 60 m, 220 V with plug fitted, for homes, lodges and farms across South Africa.

R10 028,00

Constant pressure through a pressure transducer
108 L/min and up to 60 m head, 220 V
Pre-wired with a 3-point plug
Dry-run, over-current and voltage protection

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Flow rate	108 L/min (6.5 m³/h)
Max head / pressure	60 m
Voltage / phase	220 V, single-phase
Power	1.5 kW
Inlet / outlet	On request
Self-priming	On request
Duty cycle	On request
Fluid compatibility	Clean water, max 40 °C
Control	VSD with pressure transducer for constant pressure
Protections	Dry-run, over-current, over/under-voltage, overload and abnormal-pressure
Plug	Pre-wired, 3-point
Max ambient / liquid temperature	40 °C
Net weight	19.5 kg
Shipping weight	20.9 kg
Dimensions	On request

Description

Overview

This 1.5 kW constant-pressure VSD pump system keeps the pressure level at every tap by adjusting motor speed, giving 108 L/min at up to 60 m head from a 220 V supply.

It arrives pre-wired with a 3-point plug and has a 3-second restart delay and timed auto-rotation to protect the motor and bearings. Compared with the 1.5 kW booster pump, it offers higher head and lower flow. See other models in water pumps and booster pumps.

Key features

Pressure transducer holds constant pressure, even with several outlets open
Speed control can save energy compared with a fixed-speed pump
Restart delay of 3 seconds protects the motor
Auto-rotation timer prevents bearings from sticking
Protection against dry run, over-current, voltage faults and overload

Where it works

Lodges and guest houses in KZN, school hostels in Limpopo and large Gauteng homes use this kind of system to avoid pressure swings. It also feeds packing sheds in the Western Cape. Compare with 0.75 kW VSD booster pump for the 0.75 kW option, or see 5000 L tank with this constant-pressure system for a full tank set.

Installation notes: site the unit under a ventilated cover that keeps off rain and spray, close to the tank and with room around it for air to circulate. At 108 L/min (6.5 m³/h) and 60 m of head, use pipework rated for the pressure you plan to set, and fit a strainer on the inlet if the source carries grit. Size the cable and breaker for the motor, and have a qualified electrician do the wiring.

What’s in the box

1.5 kW constant-pressure VSD pump system
Pre-wired 3-point plug
Pipework and fittings not included

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days. Delivery is free on orders of R20,000 or more (VAT incl.). The shipping weight is 20.9 kg, which falls in our R550 delivery band (up to 30 kg). Ask us for the warranty terms on this model.

Questions about this product

How does constant pressure work?

A pressure transducer measures line pressure and the drive adjusts motor speed to hold it. If one tap opens or three do, the pressure stays level instead of swinging up and down. That steady pressure is easier on fittings, showers and appliances than the surges you get with a fixed-speed pump.

Will it work off an inverter?

Only if the inverter can supply the starting load of a 1.5 kW motor. Tell us your inverter size and we will advise. Inverter surge ratings matter more than the running figure, so quote the surge when you ask. Small inverters often struggle with motor starting loads.

Is the plug really fitted?

Yes, the system comes pre-wired with a 3-point plug. A qualified electrician should still verify the supply and protection on your site. Keep the plug indoors or in the pump shed so it stays dry. Check the socket rating too, since a 1.5 kW load is more than many light-duty plugs are rated to carry.

What does delivery cost?

This item ships at 20.9 kg, so it falls in our up to 30 kg delivery band at R550. Our own trucks deliver from Polokwane to all nine provinces in 1 to 3 days. Orders of R20,000 or more (VAT incl.) ship free. Delivery fees are set by total order weight, so adding other items to the order can move it into a heavier band.
