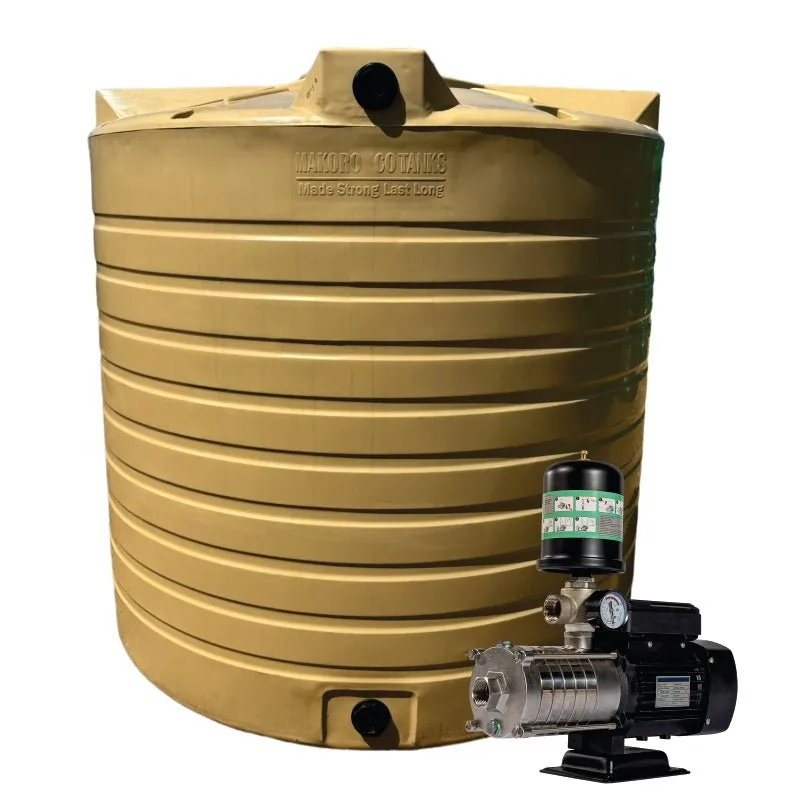

5000 L Water Tank with 0.75 kW VSD Booster Pump
SKU KMN-WATR-0179
A 5000 L vertical water tank paired with a 0.75 kW variable-speed booster pump for steady household and farm pressure, delivered across South Africa.
R11 376,86
- Constant pressure at every tap, the pump speed follows demand
- 5000 L tank with black inner liner to slow algae growth
- 0.75 kW pump: 83 L/min, up to 35 m head, 230 V single-phase
- Tank 1800 mm diameter, 2200 mm high, ships bare on the truck
Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details
Specifications
| Capacity | 5000 L (5325 L maximum fill) |
|---|---|
| Tank material / wall | 100% virgin LLDPE, rotomoulded, double layer, black inner liner |
| Tank size | Ø1800 × 2200 mm high, 450 mm manhole |
| Chassis / axle / tyres | N/A (static vertical tank) |
| Bunding | N/A (water tank) |
| Tank empty weight | 80 kg |
| Flow rate | 83.3 L/min |
| Max head / pressure | 35 m |
| Voltage / phase | 230 V, 50 Hz, single-phase |
| Power | 0.75 kW |
| Inlet / outlet | On request |
| Self-priming | Yes |
| Duty cycle | On request |
| Fluid compatibility | Clean water, max 40 °C |
| Pump body | Aluminium |
| Impeller | Noryl |
| Shaft and seal | AISI 304 stainless shaft, graphite/ceramic mechanical seal |
| Protections | Dry-run, over-current, over/under-voltage, overload and abnormal-pressure |
| Installation | Under a ventilated cover, protected from rain and spray |
| Warranty | Tank: 1 to 2 years, depending on the model |
| Net weight | 93 kg |
| Shipping weight | 94.3 kg |
| Dimensions | Ø1800 × 2200 mm (tank, diameter × height) |
Description
Overview
This 5000 L water tank with 0.75 kW VSD booster pump gives a homestead, small farm or lodge a complete storage-and-pressure set from one order. The tank holds the water, and the variable-speed pump keeps pressure steady at the taps, even with a shower and a hose running together.
The pump is a self-priming aluminium-body unit with a Noryl impeller, rated 83.3 L/min and 35 m head, so it suits low-to-medium pressure jobs rather than long irrigation lines. Tank and pump are sold as a kit but supplied as separate items. Browse more tank and pump combo kits if you need a bigger pump or a different tank size.
Key features
- Variable-speed drive adjusts motor speed to demand, so the pump is not cycling hard on and off
- Dry-run, over-current, over/under-voltage and overload protection built in
- Aluminium pump body, Noryl impeller, stainless shaft, graphite/ceramic seal
- Double-layer rotomoulded tank in virgin LLDPE with a black liner and a 450 mm manhole
- Tank rated to 5325 L at full fill, handy when the borehole recovers slowly
Where it works
A 5000 L tank is a common size for borehole farms in Limpopo and the Bushveld, where a single storage point buffers a slow yield through load-shedding hours. The VSD pump is also a good fit for guest lodges and staff housing, and it reduces the pressure swings you get from a fixed-speed pump. Keep the pump under a ventilated cover, out of rain. For a bigger pump on the same tank, see 5000 L tank with a 1.5 kW constant-pressure VSD system. If you already own a tank, 0.75 kW VSD booster pump on its own is the pump alone.
What’s in the box
- 5000 L vertical LLDPE tank with screw-on lid
- 0.75 kW 230 V VSD booster pump
- Fittings and pipework not included
Delivery and warranty
Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days. Delivery is free on orders of R20,000 or more (VAT incl.). The set ships at 94.3 kg, which falls in our R1,450 delivery band (60 to 100 kg), and the tank is shipped bare. The tank carries a warranty of 1 to 2 years, depending on the model, confirmed on your quote. Ask us for the pump warranty terms.
Questions about this product
Does this set run off one phase?
Yes. The 0.75 kW booster pump is 230 V, 50 Hz single-phase, so it plugs into normal farm or home power. It needs a proper electrical connection by a qualified electrician, and the pump must sit under a ventilated cover, away from rain and spray. It handles clean water up to 40 °C only.
Is the tank delivered with the pump fitted?
No. You get the 5000 L tank and the pump as separate items in one order, and you connect them with pipework and fittings suited to your site. The tank is shipped bare. If you tell us your layout when ordering, we can advise what fittings you will need.
Which delivery fee applies to this set?
The set ships at 94.3 kg, so it falls in the 60 to 100 kg band at R1,450. Orders of R20,000 or more (VAT incl.) ship free. Because the tank is bulky, we confirm the truck arrangement with you before dispatch to your farm or site.
Will it push water up to a roof tank?
It lifts to about 35 m of head at the pump, which covers a standard house with a pressure demand of a couple of bar. For long irrigation runs or high elevation you should step up to the 1.5 kW version. Tell us your rise and pipe length and we will check it.
