SSP-100 self-priming variable speed multistage water pump

SSP-100 multistage pump with G1 inch ports from the side

SSP-100 permanent magnet booster pump front view

0.75 kW Self-Priming VSD Multistage Pump, 5.5 m³/h, SSP-100

Name: 0.75 kW Self-Priming VSD Multistage Pump, 5.5 m³/h, SSP-100
SKU: KMN-WATR-0208
Price: 4432.05 ZAR
Availability: InStock

SKU KMN-WATR-0208

The SSP-100 is a self-priming, variable speed multistage pump up to 0.75 kW with G1 ports, for home water pressure and small irrigation, delivered nationwide.

R4 432,05

Self-priming horizontal multistage pump with permanent magnet motor
Variable speed, 100 W to 750 W, quiet and compact
Rated 3 m³/h at 3 bar, maximum 5.5 m³/h at 4.5 bar
G1″ BSP ports, 230 V single phase

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Flow rate	Rated 3 m³/h, max 5.5 m³/h
Max head / pressure	Rated 3 bar, max 4.5 bar
Voltage / phase	230 V ± 10%, single phase, 50 Hz
Power	100 W to 750 W (variable speed)
Inlet / outlet	G1" BSP threaded
Self-priming	Yes
Duty cycle	On request
Fluid compatibility	Clean water, pH 6.5 to 8.5, solids under 0.1% by volume, particles under 0.2 mm
Liquid temperature	0 to 80 °C
Ambient temperature	-15 to 40 °C
Motor	Permanent magnet, variable speed
Net weight	9 kg
Shipping weight	10 kg
Dimensions	On request

Description

Overview

The SSP-100 is a self-priming horizontal multistage pump with a permanent magnet motor and variable speed control, drawing between 100 W and 750 W depending on demand. It pressurises clean water for homes, small buildings and light irrigation, and it primes itself, so it copes with a suction line that is not flooded.

It rates 3 m³/h at 3 bar, with a maximum of 5.5 m³/h and 4.5 bar. Compare it with the 0.75 kW smart VSD booster pump if you want Wi-Fi control, or browse the full booster pumps range.

Key features

Self-priming, so no need to flood the pump casing on a normal install
Permanent magnet motor with variable speed, 100 W to 750 W
Quiet running and a compact, light body for tight pump rooms
Corrosion-resistant construction for low-viscosity, neutral, non-explosive liquids
G1 BSP threaded inlet and outlet
Clean water from 0 to 80 °C, ambient -15 to 40 °C

Where it works

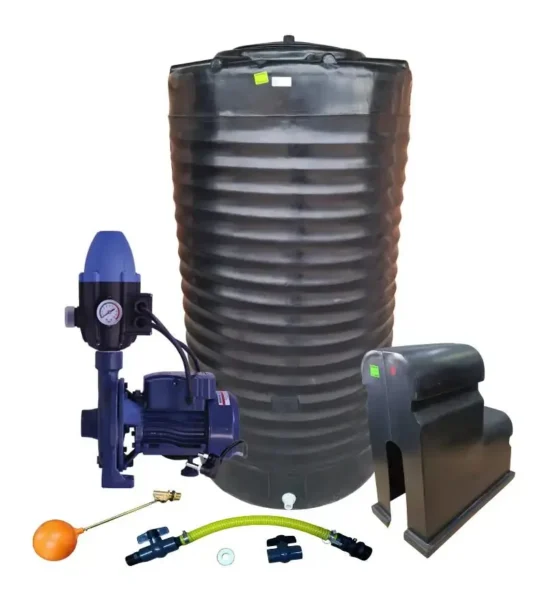

Typical jobs are boosting house pressure from a rainwater tank in KZN, feeding a small drip or micro-sprinkler zone on a Western Cape smallholding, supplying a garden tap line or a water-treatment skid. Keep to clean water: the limits are pH 6.5 to 8.5, solids under 0.1% by volume and particles under 0.2 mm, so it is not a borehole sand pump. Install it with a union on each port so it can be taken off for service, and keep it dry and shaded. For larger storage and a ready-made pump set, look at the 1000 L slim tank combo with 0.75 kW monoblock pump.

What’s in the box

SSP-100 self-priming VSD multistage pump

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days. Shipping weight is 10 kg, which is up to 30 kg, so delivery is R550. Orders of R20,000 or more (VAT incl.) ship free. Ask us for the warranty terms on this model.

Questions about this product

Is the SSP-100 really self-priming?

Yes. It is a self-priming horizontal multistage pump, so it can pull water up from a lower tank or sump without you flooding the casing first. Make sure the suction line is airtight and uses a foot valve or non-return valve, and fill the pump on first start-up so it primes quickly.

How much does delivery cost for the SSP-100?

At 10 kg shipping weight it sits in the up to 30 kg band, so delivery is R550, and it is free on orders of R20,000 or more (VAT incl.). We deliver with our own trucks from Polokwane to all nine provinces, normally in 1 to 3 days, including farms and sites outside town.

Can it pump from a borehole?

Only if the water is clean. The pump handles solids under 0.1% by volume and particles under 0.2 mm, so sandy borehole water will wear it out. It works best from a storage tank or clean sump, with the borehole filling that tank. Tell us your water source and we will advise.

How much pressure does it give?

Rated pressure is 3 bar at 3 m³/h, and maximum pressure is 4.5 bar with a maximum flow of 5.5 m³/h. That is enough for most single-storey houses and small garden or drip systems. For higher pressure or a bigger flow, step up to a 1.1 kW booster.
