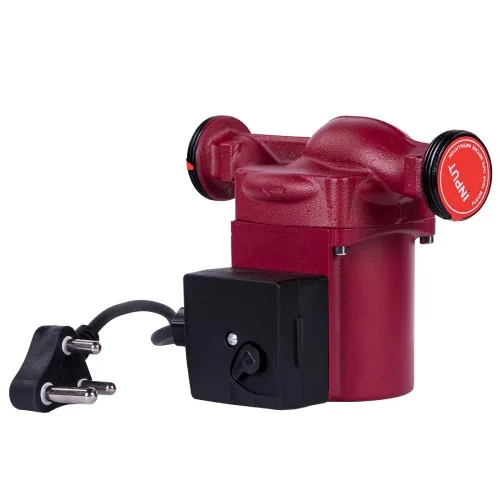

270 W Hot Water Circulator Pump, 8 m Head, 9.6 m³/h, 32 mm Ports

Description

Overview

This 270 W circulator is the largest of our three hot water circulator pumps, with 32 mm ports and a maximum flow of 9.6 m³/h at up to 8 m head. It keeps heated water moving round a closed loop so hot water reaches the taps quickly and heat spreads evenly. It has three speed settings, drawing 150, 210 or 270 W. Choose it when your pipe runs are long or wide, for example a big home, a guest lodge or a small commercial heating circuit. For smaller loops, the 200 W model with 25 mm ports is enough.

It takes liquids from 2 to 110 °C at a maximum system pressure of 10 bar and an ambient temperature of up to 40 °C. Protection is IP44 with Class H insulation, on 220 V, 50 Hz mains.

Key features

• Three-speed motor to match the loop
• Maximum flow 9.6 m³/h, maximum head 8 m
• 32 mm inlet and outlet
• Threaded unions included
• Suitable for clean liquids with a pH of 6.5 to 8.5

Where it works

Typical uses are hot water service systems in a large Johannesburg home, solar hot water loops on a farm in the Free State, underfloor heating, and heating or air-conditioning circuits. It is made for clean, non-toxic, chemically neutral liquids free from solids and mineral oils. Mount it on a vertical pipeline so the motor shaft is horizontal. See the smaller 60 W circulator for light domestic loops, or browse the water booster and circulator pumps.

What’s in the box

• 1 x 270 W hot water circulator pump
• Threaded unions

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, including Johannesburg, Pretoria, Bloemfontein, Welkom, Klerksdorp and Kimberley. Shipping weight is 6.2 kg, which falls in our up to 30 kg delivery band of R550. Orders of R20,000 or more are delivered free. Ask us for the warranty terms on this model.
