200 W Hot Water Circulator Pump, 8 m Head, 7 m³/h, 25 mm Ports

Description

Overview

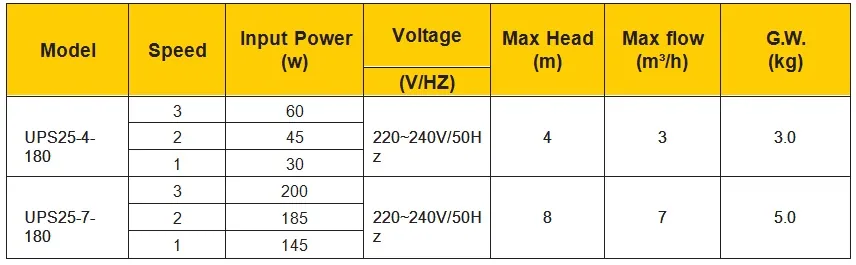

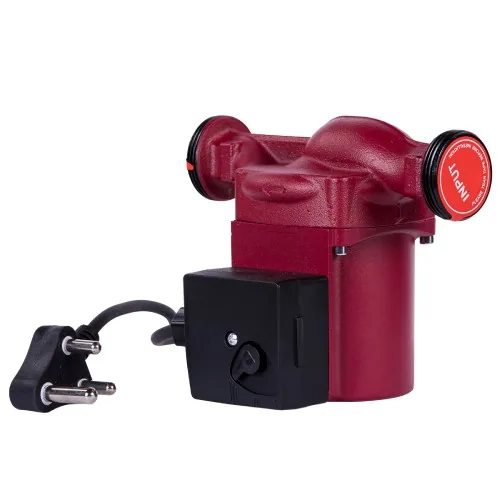

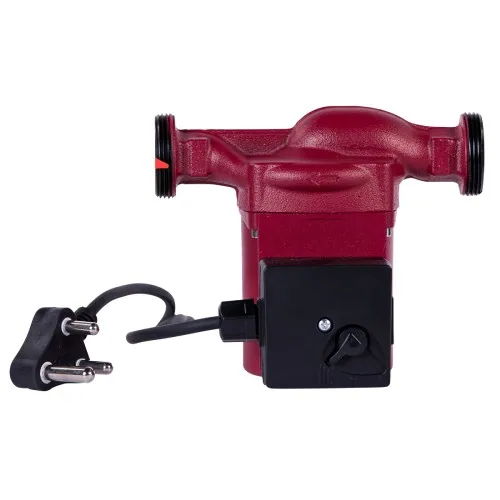

This 200 W hot water circulator pump keeps heated water moving round a closed loop, so hot taps run hot without a long wait. It delivers up to 7 m³/h at a maximum head of 8 m, and has three speed settings with input power of 145, 185 and 200 W. It is designed for hot water service systems, underfloor heating, hot water circulation loops and solar hot water circulation. It sits between the 60 W and the 270 W circulators in our range.

It handles liquids from 2 to 110 °C at a maximum system pressure of 10 bar and an ambient temperature of up to 40 °C. Protection is IP44 with Class H insulation, and it runs on 220 V, 50 Hz mains.

Key features

• Three-speed motor for matching the loop
• Maximum head 8 m, maximum flow 7 m³/h
• Liquid temperature +2 to +110 °C
• 25 mm inlet and outlet, threaded unions included
• IP44, Class H insulation, 10 bar maximum system pressure

Where it works

Typical jobs are a hot water ring main in a big house, a solar geyser loop on a Northern Cape farm, underfloor heating in a Western Cape home, and heating or air-conditioning circuits in small commercial buildings. It is for clean liquids free from solids and mineral oils, chemically neutral and close to water, with a pH of 6.5 to 8.5. Install it on a vertical pipeline so the motor shaft stays horizontal. See all our water booster and circulator pumps.

What’s in the box

• 1 x 200 W hot water circulator pump
• Threaded unions

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, including Cape Town, George, Upington, Johannesburg, Durban and Pietermaritzburg. Shipping weight is 6 kg, which falls in our up to 30 kg delivery band of R550. Orders of R20,000 or more are delivered free. Ask us for the warranty terms on this model.
