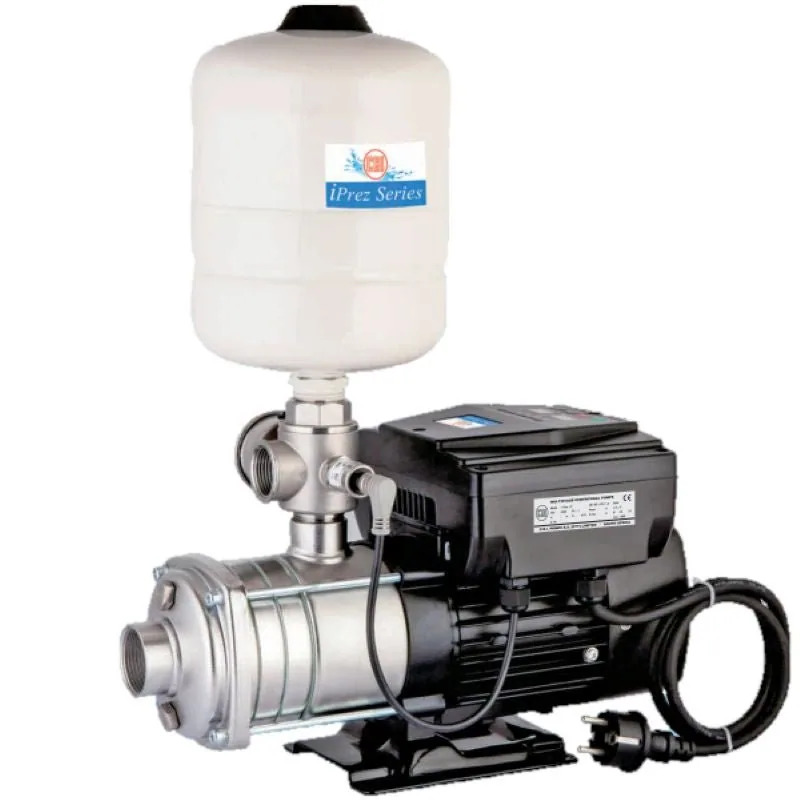

0.75 kW Booster Pump System with VFD, Pressure Tank, 220 V
SKU KMN-WATR-0203
A complete 0.75 kW booster pump system with variable-frequency drive, pressure tank and digital display, holding constant pressure for South African homes and sites.
R8 129,65
- Horizontal multistage pump with stainless steel pump section
- Built-in VFD with digital display of speed and pressure
- Pressure tank, gauge, transmitter and 5-way connector with NRV
- Pressure adjustable from 1 to 9 bar
Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details
Specifications
| Flow rate | Up to 16 m³/h (flow depends on head) |
|---|---|
| Max head / pressure | Up to 60 m, pressure setting 1 to 9 bar |
| Voltage / phase | 220 V, 50/60 Hz, single-phase |
| Power | 0.75 kW |
| Inlet / outlet | DN25 to DN40, exact size on request |
| Self-priming | On request |
| Duty cycle | On request |
| Fluid compatibility | Clean water, 0 to 70 °C |
| Pump | Horizontal multistage, stainless steel pump section |
| Drive | Built-in VFD, 20 to 50 Hz or 20 to 60 Hz output |
| Pressure transmitter | 24 V, 4-20 mA |
| Ambient temperature | 0 to 40 °C |
| Net weight | 14.5 kg |
| Shipping weight | 15.9 kg |
| Dimensions | On request |
Description
Overview
This 0.75 kW booster pump system with VFD is a complete constant-pressure package: a horizontal multistage pump, a variable-frequency drive, a five-way connector with non-return valve, a pressure tank, a gauge and a pressure transmitter.
The transmitter watches demand and the drive adjusts motor speed to hold the pressure you set, anywhere from 1 to 9 bar. It protects against dry run, overload, unbalanced voltage and short circuits. Flow reaches up to 16 m³/h at lower heads and head reaches 60 m. More choices in water pumps and booster pumps.
Key features
- Constant pressure with adjustable settings from 1 to 9 bar
- Digital display shows pump speed and pressure
- Protection from dry run, overload, unbalanced voltage and short circuits
- Complete stainless steel pump section
- Compact design that is easy to install
Where it works
It suits houses, clinics and lodges in Gauteng and the Western Cape that want a neat, pre-assembled set with a pressure tank. Liquid temperature can run from 0 to 70 °C, and ambient from 0 to 40 °C. A simpler booster is 0.75 kW VSD booster pump, and a different constant-pressure unit is 1.5 kW constant-pressure VSD pump system.
Installation notes: site the unit under a ventilated cover that keeps off rain and spray, close to the tank and with room around it for air to circulate. Flow reaches up to 16 m³/h and head up to 60 m, so use pipework rated for the pressure you plan to set, and fit a strainer on the inlet if the source carries grit. Size the cable and breaker for the motor, and have a qualified electrician do the wiring.
What’s in the box
- 0.75 kW horizontal multistage pump with VFD
- 5-way connector with non-return valve
- Pressure tank, pressure gauge and pressure transmitter
Delivery and warranty
Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days. Delivery is free on orders of R20,000 or more (VAT incl.). The shipping weight is 15.9 kg, which falls in our R550 delivery band (up to 30 kg). Ask us for the warranty terms on this model.
Questions about this product
What is the pressure tank for?
It smooths pressure changes and reduces start-ups when demand is very small. Together with the VFD and transmitter, it helps hold the pressure you set. A tank precharge that is too high or too low will make the pump short-cycle, so set the precharge to suit your pressure.
Can I set the pressure myself?
Yes, output pressure is adjustable between 1 and 9 bar, and the digital display shows pump speed and pressure. Set it to suit your fittings and pipe class. Higher settings need pipework rated for it, so check the class of your pipes before you raise the setting.
Does it protect itself against dry running?
Yes. It protects against dry run, overload, unbalanced voltage and short circuits. You should still fix any supply problem quickly. Repeated dry-run stops usually point to an empty tank, an air leak or a blocked suction line, so check those before restarting the system.
What is delivery?
This item ships at 15.9 kg, so it falls in our up to 30 kg delivery band at R550. Our own trucks deliver from Polokwane to all nine provinces in 1 to 3 days. Orders of R20,000 or more (VAT incl.) ship free. Delivery fees are set by total order weight, so adding other items to the order can move it into a heavier band.
