CPM158 Booster Combo 0.75 kW, 220 V, with Flow Controller, 30 m Head

Description

Overview

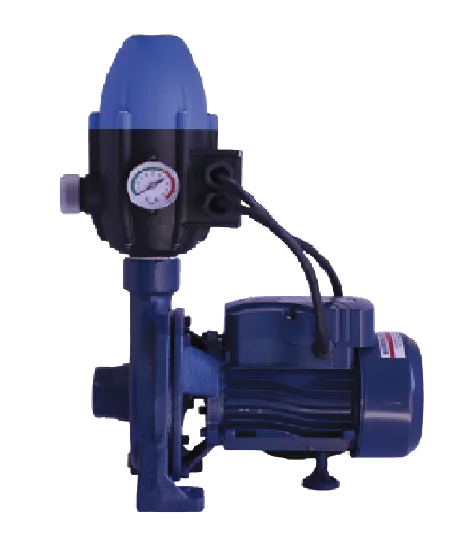

This CPM158 booster kit is a household pressure booster built on a 0.75 kW centrifugal pump and supplied with an automatic flow controller, wiring and a moulded plug. It gives up to 30 m head and is best for boosting water from a tank to a home. Connect the pipes, plug it in, and the pump starts when a tap opens and stops when the flow stops.

The listed performance is 29.1 m at 10 L/min, 27.1 m at 30 L/min, 24.5 m at 50 L/min and 22.8 m at 60 L/min, falling to 16.2 m at 80 L/min. Every 10 m of head is about 1 bar, so a 30 m rating gives roughly 3 bar at low flow. Choose a pump whose head at your flow is comfortably above what you need. The body is cast iron with a brass impeller. For a bigger motor, look at the 1.1 kW CPM170 combo. For a version with tank-side hose, see the CPM158 kit with suction hose. The wider booster pump range lists every size.

Key features

• Plug-in kit, no separate controller to source
• Automatic start and stop
• Up to 30 m head for houses and gardens
• Clean water use, liquid up to 40 °C, suction lift up to 7 m
• Cast iron body and brass impeller
• Single-phase 220 to 240 V supply

Where it works

Typical installs are a family home in Pietermaritzburg with a rainwater tank, a guest lodge near Mbombela that needs good pressure in the showers, and a farm house in the Free State where municipal supply is weak. It stays under a vented cover away from rain, and it should see clean water only, with no sand or grit.

What’s in the box

• CPM158 pump, 0.75 kW, assembled
• Automatic flow controller
• Wiring and moulded plug

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, including Pietermaritzburg, Mbombela, Johannesburg, Bloemfontein, East London and eMalahleni. Shipping weight is about 12 kg, in the up to 30 kg band at R550, and orders of R20,000 or more (VAT incl.) ship free. Ask us for the warranty terms on this model.
