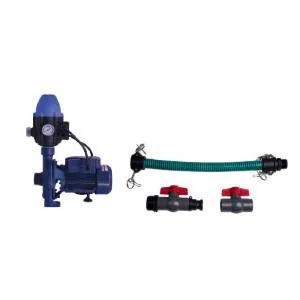

CPM146 Booster Pump Combo, 0.55 kW, with 25 mm Suction Hose Kit
SKU KMN-WATR-0350
A complete tank-to-house kit: 0.55 kW booster combo plus a 25 mm suction hose kit, delivered anywhere in South Africa from Polokwane.
R3 184,00
- Complete kit: CPM146 combo plus 25 mm suction hose kit
- Flow controller, wiring and plug already fitted
- 0.55 kW, 220 to 240 V, up to 25 m head
- Draws from a tank and boosts pressure to the house
Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details
Specifications
| Model | CPM146 booster pump combo with 25 mm suction hose kit |
|---|---|
| Flow rate | Up to 80 L/min listed (4.8 m³/h) |
| Max head | 25 m |
| Duty point | 40 L/min at 21 m |
| Voltage / phase | 220 to 240 V, 50 Hz, single-phase |
| Power | 0.55 kW |
| Inlet / outlet | 1″ ports, 25 mm suction hose |
| Suction lift | Max 7 m |
| Self-priming | No, prime the pump before first start |
| Duty cycle | On request |
| Fluid compatibility | Clean water without abrasives, max 40 °C |
| Pump body / impeller | Cast iron / brass |
| Control | Automatic flow controller with plug |
| Net weight | 11.5 kg |
| Shipping weight | 13 kg |
| Dimensions | 420 × 230 × 320 mm |
Description
Overview
This kit is a CPM146 booster pump combo bundled with a 25 mm suction hose kit, so you can draw water straight from a tank and push it into the house at up to 25 m head. The 0.55 kW pump comes pre-assembled with an automatic flow controller, wiring and a moulded plug. Connect the hose to the tank, run the pipe to the house, plug in, and the pump starts when a tap opens and stops when the flow stops.
The pump is a single-stage end-suction centrifugal unit with a cast iron body and a brass impeller. At 20 L/min it gives about 24 m head, and at 60 L/min about 16 m, so it suits a single-storey home with a few taps running together. A rough rule is 10 m of head per 1 bar. If the tank sits well above the pump you will gain pressure on top of that. For pressure only, take the CPM146 combo without hose, or step up in head with the CPM158 combo and hose kit. The full booster pump range is on our category page.
Key features
- Kit supplied for the tank side, so nothing to hunt down separately
- Pre-wired automatic flow controller
- Maximum head 25 m, tested points listed in the spec table
- Cast iron body and brass impeller
- Suction lift up to 7 m
- Suitable for clean water up to 40 °C
Where it works
This kit fits homes in Pretoria and Mbombela that store rainwater or municipal water in a tank and have weak pressure at the taps. It also works for a farm homestead near Tzaneen where a ground tank feeds a kitchen and bathroom. Keep the pump under a vented cover, away from rain, and use it for clean water only.
What’s in the box
- CPM146 booster pump with flow controller, wiring and plug
- 25 mm suction hose kit
Delivery and warranty
Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, including Johannesburg, Pretoria, Mbombela, Tzaneen, Mahikeng and Richards Bay. The kit ships at about 13 kg, in the up to 30 kg band at R550. Orders of R20,000 or more (VAT incl.) ship free. Ask us for the warranty terms on this model.
Questions about this product
What is in the suction hose kit?
It is a 25 mm suction hose kit meant to draw water from a tank into the pump. Ask us for the exact fittings and hose length before you order if your tank sits far from the pump, so you can plan the layout properly.
How much pressure will I get at the taps?
Maximum head is 25 m, about 2.5 bar, falling to roughly 21 m at 40 L/min and 16 m at 60 L/min. That suits a single-storey house with a few taps open. Tell us your tank position and number of bathrooms and we will check the size.
Can I get this to Mahikeng?
Yes. Our own trucks deliver to Mahikeng and all nine provinces in 1 to 3 days from Polokwane. The kit is about 13 kg, in the up to 30 kg band at R550, and orders of R20,000 or more (VAT incl.) are delivered free.
Nationwide delivery from Polokwane
Delivered to all nine provinces in 1 to 3 days
We deliver the CPM146 Booster Pump Combo, 0.55 kW, with 25 mm Suction Hose Kit with our own trucks to Johannesburg, Pretoria, Cape Town, Durban, Gqeberha, Bloemfontein, Polokwane, Mbombela, Pietermaritzburg, East London, Mahikeng, Upington, Thohoyandou and Tzaneen, and to farms, mines and sites in between. This item ships in the R550 delivery band (up to 30 kg). Orders of R20,000 or more deliver free with code KH027.
Pairs well with
-
KMN-WATR-0156
Diesel Water Transfer Pump, 2″ Ports, 500 L/min, 25 m Head
- 2" ports
- 500 L/min
- 25 m head
-
KMN-WATR-0194
1.1 kW Monoblock Pump Kit with Flow Switch, 125 L/min, 37 m
- 1.1 kW kit
- 125 L/min
- 37 m head
-
KMN-WATR-0205
1.5 kW Variable Speed Booster Pump System, i-Prez 15N, 60 m Head
- 1.5 kW VSD
- 16 m³/h
- 60 m head
-
KMN-WATR-0198
0.75 kW Peripheral Pump Kit with Flow Switch, 60 L/min, 60 m
- 0.75 kW kit
- 60 L/min
- 60 m head
-
KMN-WATR-0192
0.75 kW Monoblock Pump Kit with Flow Switch, 100 L/min, 32 m
- 0.75 kW kit
- 100 L/min
- 32 m head
-
KMN-WATR-0202
1.5 kW Constant-Pressure VSD Pump System, 108 L/min, 60 m, 220 V
- 1.5 kW VSD
- 108 L/min
- 60 m head
-
KMN-WATR-0208
0.75 kW Self-Priming VSD Multistage Pump, 5.5 m³/h, SSP-100
- 0.75 kW max
- 5.5 m³/h
- G1" ports
-
KMN-WATR-0203
0.75 kW Booster Pump System with VFD, Pressure Tank, 220 V
- 0.75 kW VFD
- Pressure tank
- 1-9 bar
Recently viewed
-
KMN-WATR-0353

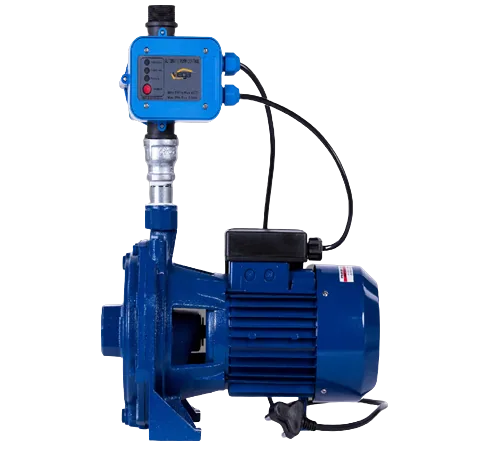

CPM190 Booster Combo 1.5 kW, 220 V, Digital Flow Controller, 40 m Head
