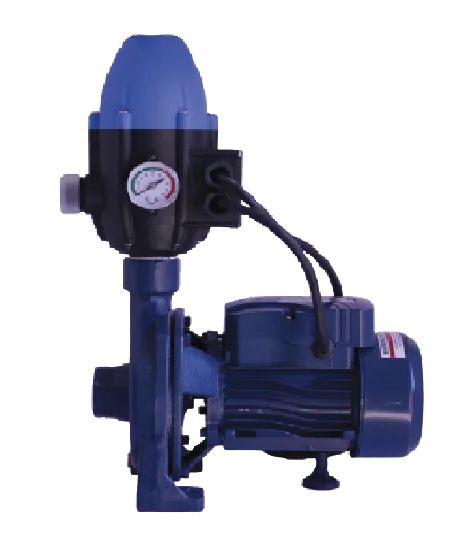

CPM146 Booster Pump Combo, 0.55 kW, 26 m Head, 100 L/min

Description

Overview

The CPM146 booster pump combo is a ready-wired 0.55 kW household pressure booster that pushes tank water to your taps, showers and geyser at up to 26 m head and 100 L/min. It arrives pre-assembled with an automatic flow controller, wiring and a moulded plug, so you connect the pipes, plug it in and it runs by itself.

Inside is a single-stage end-suction centrifugal pump with a cast iron body, a brass impeller and a stainless steel 304 motor shaft. When a tap opens the controller starts the pump, and when the flow stops the pump stops. Every 10 m of head gives about 1 bar, so this unit suits single-storey homes and garden taps. For a double-storey house step up to the 0.75 kW CPM158 combo, or browse all our water booster pumps. If you only need the pump head, see the CPM146 pump on its own.

Key features

• Ready to run: pump, flow controller, wiring and plug come assembled
• Automatic start and stop, no pressure tank needed
• Cast iron pump body with brass impeller
• Ceramic-graphite mechanical seal
• Motor with capacitor and thermal overload protector, insulation class B, IP44
• Suction lift up to 7 m, clean water up to 40 °C

Where it works

Use it to lift water from a JoJo-style ground tank to a house in Polokwane, to feed a bathroom on the far side of a Gauteng stand, or to run a small drip line on a Limpopo smallholding. It handles clean water only, with no abrasive particles, and it must sit under a vented cover away from rain and spray. Count the taps and showers that run at the same time and compare that flow with the head you need before you order. Send us your setup and we will help you size it.

What’s in the box

• CPM146 centrifugal pump, 0.55 kW
• Automatic flow controller, fitted
• Wiring and moulded plug, fitted

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, including Johannesburg, Pretoria, Bloemfontein, Mbombela, Rustenburg and Kimberley. Shipping weight is about 11 kg, which falls in our up to 30 kg delivery band at R550. Orders of R20,000 or more (VAT incl.) ship free. Ask us for the warranty terms on this model.
