CPM146 end-suction centrifugal booster pump, 0.55 kW 220 V

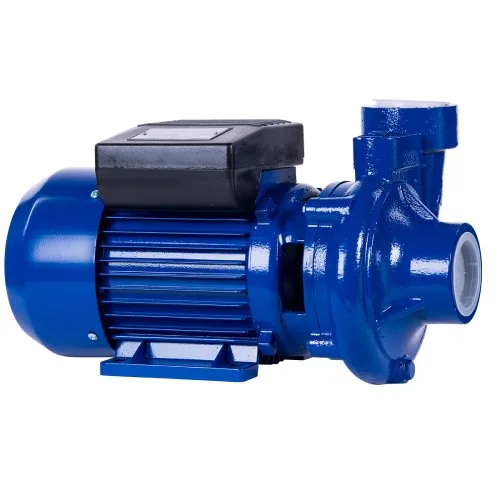

CPM146 Centrifugal Booster Pump, 0.55 kW, 220 V, 25 m Head

Name: CPM146 Centrifugal Booster Pump, 0.55 kW, 220 V, 25 m Head
SKU: KMN-WATR-0360
Price: 1848.00 ZAR
Availability: InStock

SKU KMN-WATR-0360

A 0.55 kW single-phase end-suction centrifugal pump, supplied as the pump only, delivered to homes and farms across South Africa from Polokwane.

R1 848,00

Pump only, add a controller or pressure tank for automatic running
0.55 kW, 220 V single-phase
Up to 25 m head
For house pressure, tank transfer and light irrigation

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Model	CPM146 centrifugal pump, pump only
Flow rate	Up to 80 L/min listed (4.8 m³/h)
Max head	25 m
Duty point	40 L/min at 21 m
Voltage / phase	220 V, 50 Hz, single-phase
Power	0.55 kW
Inlet / outlet	1″ / 1″ (series standard)
Suction lift	Max 7 m
Self-priming	No, prime the pump before first start
Duty cycle	On request
Fluid compatibility	Clean water without abrasives, max 40 °C
Pump body / impeller	Cast iron / brass
Control	None, pump only
Net weight	8 kg
Shipping weight	9 kg
Dimensions	340 × 190 × 250 mm

Description

Overview

The CPM146 is a single-stage end-suction centrifugal pump that gives up to 25 m head from a 0.55 kW, 220 V single-phase motor. It boosts household water pressure, moves water between tanks and runs light garden irrigation. This listing is the pump only, so it has no flow controller or pressure switch. Add a controller or a pressure tank kit if you want it to start and stop on its own.

The body is cast iron, the impeller is brass. Measured points show 24.7 m at 10 L/min, 23.9 m at 20 L/min, 21 m at 40 L/min and 8.9 m at 80 L/min. To size it, count the taps and showers that run together and check that the head at that flow is above what your house needs. Prefer a ready-wired unit? See the CPM146 flow control combo or the 0.75 kW CPM158 pump. More choices sit in our booster pump range.

Key features

Pump only, so you choose your own controls and pipework
Cast iron body and brass impeller
Single-phase 220 V, 50 Hz supply
Listed to 80 L/min, 8.9 m head at 80 L/min
Suction lift up to 7 m
Clean water duty, liquid up to 40 °C

Where it works

Typical jobs are lifting water from a ground tank to a house in Bloemfontein, topping up a header tank, shifting rainwater between JoJo-type tanks on a farm near George, or running a garden sprinkler line. It needs clean water without abrasive particles, and it must sit under a vented cover away from rain and spray.

What’s in the box

CPM146 centrifugal pump, 0.55 kW

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, including Bloemfontein, George, Upington, Cape Town, Pietermaritzburg and Johannesburg. At about 9 kg shipping weight this pump is in the up to 30 kg band at R550, and orders of R20,000 or more (VAT incl.) ship free. Ask us for the warranty terms on this model.

Questions about this product

Does this pump switch on and off by itself?

No. This listing is the pump only, with no flow controller or pressure switch. You need to add a controller or a pressure tank kit to get automatic starting and stopping. If you want that already done, choose the CPM146 flow control combo.

How high can it push water?

Up to 25 m of head, which is about 2.5 bar, at low flow. The head falls as the flow rises, to 21 m at 40 L/min and 8.9 m at 80 L/min. Choose a pump whose head at your flow is above your total lift plus pipe friction.

Do you deliver to Upington?

Yes. Our own trucks deliver to Upington and every other province in 1 to 3 days from Polokwane. At about 9 kg this pump is in the up to 30 kg band at R550, and orders of R20,000 or more (VAT incl.) ship free.
