1.1 kW Cast Iron Self-Priming Jet Pump, 50 L/min, 70 m Head

Description

Overview

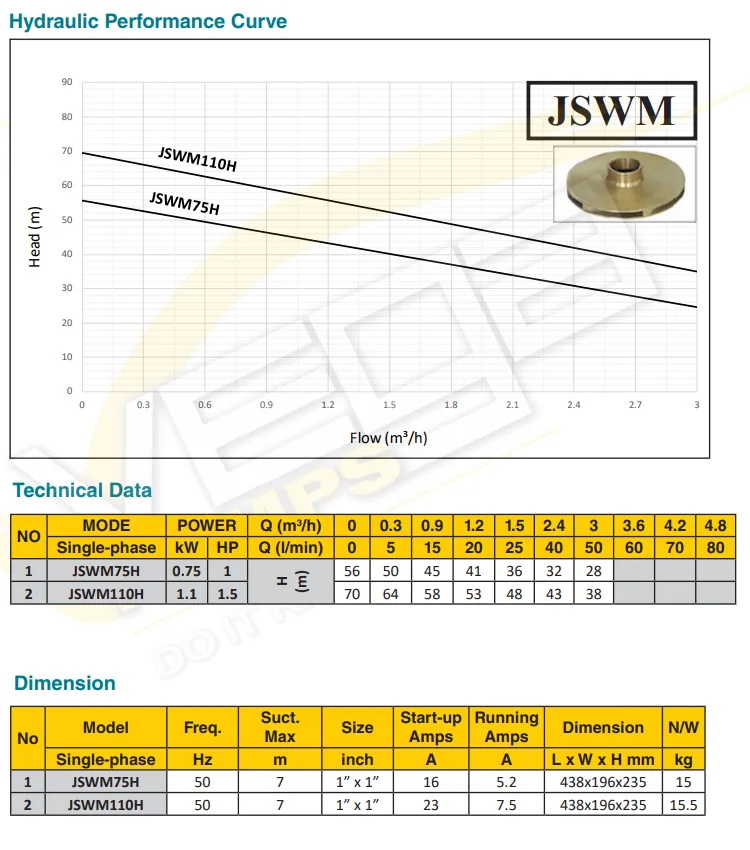

This 1.1 kW cast iron jet pump is a self-priming water pump built for pressure, with up to 70 m of head and a flow of up to 50 L/min (3 m3/h). It draws water from up to 6 m below the pump, depending on altitude. The body is cast iron, the impeller is brass, and the venturi and recirculation chamber are PPO (polyphenylene oxide). The shaft is stainless steel 304 and the mechanical seal is NBR, graphite and ceramic.

Key features

• Self-priming jet design for suction lift up to 6 m
• Up to 70 m of head for high-pressure supply
• Cast iron body and brass impeller
• PPO venturi and recirculation chamber
• Stainless steel 304 shaft with NBR, graphite and ceramic seal
• Liquid up to 60 degrees C, ambient up to 40 degrees C, 8 bar maximum operating pressure

Where it works

Use it to lift water from a shallow well or a surface or submerged storage tank, for domestic supply, garden irrigation and longer pipe runs where pressure matters. On KZN homesteads, Limpopo smallholdings and Western Cape plots it feeds taps and sprinklers uphill from a tank. It is for clean water only. Compare the 0.75 kW cast iron jet pump and the 63 L/min polypropylene pump, or browse all water booster pumps.

What’s in the box

• 1.1 kW cast iron self-priming jet pump with motor

Sizing tip

Add the height you must lift to the friction in the pipe run, and pick a pump whose head at your required flow is above that total. If you are unsure, send us the layout and we will check it with you.

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, including Polokwane, Johannesburg, Durban, Pietermaritzburg, Pretoria and Cape Town. The shipping weight is 13 kg, so it sits in the up to 30 kg delivery band at R550. Orders of R20,000 or more (VAT incl.) qualify for free delivery. Ask us for the warranty terms on this model.
