1.5 kW CPM70 Booster Pump with Pressure Switch, 24 m³/h, 28 m

Description

Overview

This is the CPM70 1.5 kW booster pump supplied as a combo with automatic pressure control, so it starts when you open a tap and stops when you close it. It moves up to 400 L/min (24 m³/h) at a maximum head of 28 m. That makes it a practical way to lift water from a storage tank to a house, a garden or a set of sprinklers without anyone standing at a switch. If you already have your own controller, the CPM70 pump on its own costs less.

The pump body is cast iron with a brass impeller, a 304 stainless steel shaft and a ceramic-graphite seal. The single-phase 230 V, 50 Hz motor has a capacitor and thermal overload protector, Class B insulation and IP44 protection.

Key features

• Automatic start and stop through the fitted pressure switch

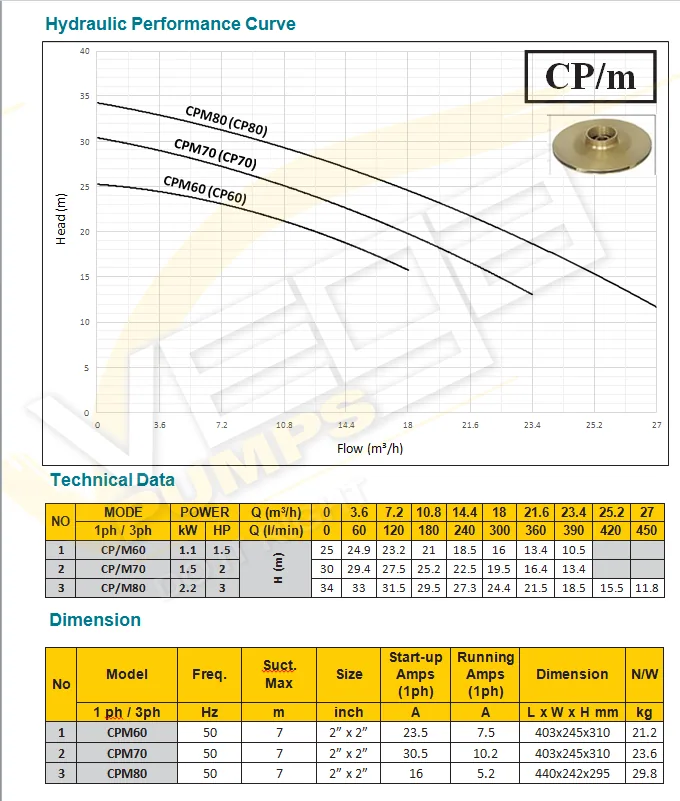

• Maximum flow 400 L/min, maximum head 28 m
• 25 m head at 100 L/min, 21 m at 200 L/min
• Suction lift up to 7 m
• For clean, non-aggressive water up to 40 °C
• 2 inch inlet and outlet

Where it works

Use it to give a house steady tap and shower pressure from a rainwater or municipal storage tank, or to run a drip or sprinkler block on a farm in Limpopo or Mpumalanga. It is also a sound choice for a guest lodge or small school where several taps run together. For heavier demand, the 2.2 kW CPM80 combo adds a little more head. See all water booster pumps for other sizes. Install it under a vented cover, out of rain and spray, and keep the suction pipe short and airtight.

What’s in the box

• 1 x CPM70 1.5 kW booster pump with pressure switch fitted

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, including Pretoria, Cape Town, Gqeberha, Kimberley, Polokwane and Pietermaritzburg. Shipping weight is 20 kg, which falls in our up to 30 kg delivery band of R550. Orders of R20,000 or more are delivered free. Ask us for the warranty terms on this model.
