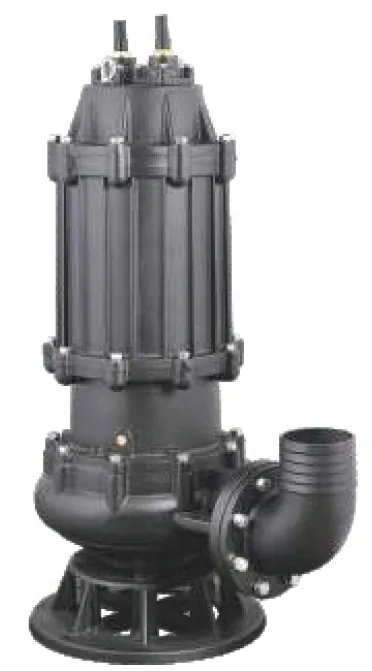

15 kW 380 V heavy-duty submersible sewage pump, 200 mm outlet, cast iron

15 kW 380 V heavy-duty submersible sewage pump, 200 mm outlet, cast iron, side view

15 kW 380 V heavy-duty submersible sewage pump, 200 mm outlet, cast iron, close-up of the casing

15 kW 380 V heavy-duty submersible sewage pump, 200 mm outlet, cast iron, with power cable

15 kW Heavy-Duty Raw Sewage Pump, 380 V, 200 mm Outlet, 490 m3/h

Name: 15 kW Heavy-Duty Raw Sewage Pump, 380 V, 200 mm Outlet, 490 m3/h
SKU: KMN-SUBM-0022
Price: 49912.00 ZAR
Availability: InStock

SKU KMN-SUBM-0022

A 15 kW high-flow submersible sewage pump with 200 mm outlet and 70 mm solids passage, delivered by Kamano to mines and municipalities.

R49 912,00

Up to 490 m3/h, 21 m maximum head
200 mm outlet, 70 mm solids passage
Cutter plate and single channel impeller
IP68 Class F motor, 30.1 A on 380 V

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Flow rate	Up to 490 m3/h
Max head / pressure	21 m
Voltage / phase	380 V, three-phase
Power	15 kW (20 HP), 4-pole
Rated current	30.1 A
Inlet / outlet	Cutter plate inlet / 200 mm outlet
Self-priming	N/A (submersible)
Duty cycle	On request
Fluid compatibility	Raw sewage and sludge up to 40 °C, density 1.3 g/cm3, pH 6 to 10
Impeller	Cast iron, open single channel, 70 mm passage
Seal	Double mechanical, silicon carbide/silicon carbide and carbon graphite/ceramic
Protection class	IP68, Class F
Max immersion depth	20 m
Power cable	8 m
Net weight	250 kg
Shipping weight	280 kg
Dimensions	800 x 600 x 880 mm

Description

Overview

This 15 kW (20 HP) heavy-duty submersible sewage pump is built for volume: up to 490 m3/h through a 200 mm outlet, at a maximum head of 21 m. The inlet cutter plate and single channel impeller handle stringy solids and the passage is 70 mm, so it suits raw sewage and sludge at municipal and industrial stations. It draws 30.1 A on 380 V three-phase and its IP68 Class F motor is rated for immersion to 20 m.

Key features

High flow of up to 490 m3/h
Inlet cutter plate for stringy solids
Cast iron body and single channel impeller, 70 mm passage
Double mechanical seal, silicon carbide/silicon carbide and carbon graphite/ceramic
IP68, Class F, 4-pole motor
Free-standing, guide rail or duck foot installation, 8 m cable

Where it works

Specify it for stormwater and sewage lift stations in Johannesburg, Tshwane and Ethekwini, for mine dewatering in Mpumalanga coal and Limpopo platinum areas, and for abattoir and large-feedlot effluent. Its high flow also helps empty flooded pits quickly. The 11 kW raw sewage pump is the lower-power option and the 18.5 kW raw sewage pump adds more lift. See all our submersible pumps.

What’s in the box

15 kW submersible sewage pump
8 m power cable

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, with regular runs to Johannesburg, Richards Bay, Durban, Mbombela, Polokwane, eMalahleni and Pretoria. Fees are set by total order weight: up to 30 kg R550, 30 to 60 kg R950, 60 to 100 kg R1,450, and over 100 kg on quotation. At 280 kg shipping weight, delivery of this pump is on quotation. Orders of R20,000 or more (VAT incl.) ship free. Ask us for the warranty terms on this model.

Questions about this product

Is 490 m3/h available at full head?

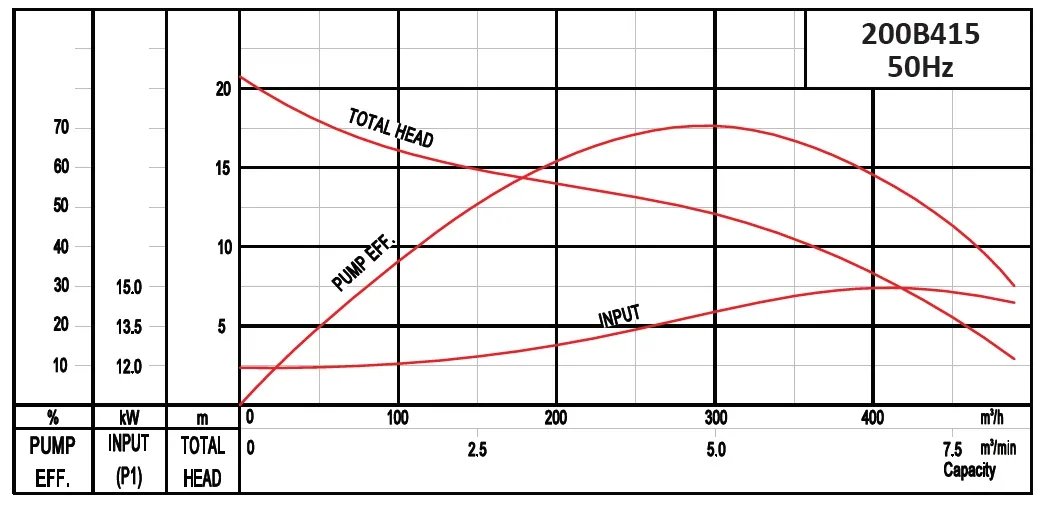

No. 490 m3/h is the maximum flow and 21 m is the maximum head, and they occur at different points on the curve. Tell us your flow and total head and we will check the duty point before you order.

How do I lift or service this pump?

At this size use a chain and a hoist or tripod, never the power cable. A guide rail system makes service easier because the pump can be lifted out without entering the wet well. Ask us about the accessories.

Do you deliver this pump to Richards Bay?

Yes. Kamano delivers with its own trucks from Polokwane to Richards Bay and the rest of South Africa in 1 to 3 days. This pump ships at 280 kg, so delivery is on quotation. Orders of R20,000 or more (VAT incl.) ship free.

Nationwide delivery from Polokwane

Delivered to all nine provinces in 1 to 3 days

We deliver the 15 kW Heavy-Duty Raw Sewage Pump, 380 V, 200 mm Outlet, 490 m3/h with our own trucks to Johannesburg, Pretoria, Cape Town, Durban, Gqeberha, Bloemfontein, Polokwane, Mbombela, Secunda, Rustenburg, Klerksdorp, Mokopane, George and Tzaneen, and to farms, mines and sites in between. This item ships in the delivery on quotation (over 100 kg). Orders of R20,000 or more deliver free with code KH027.
