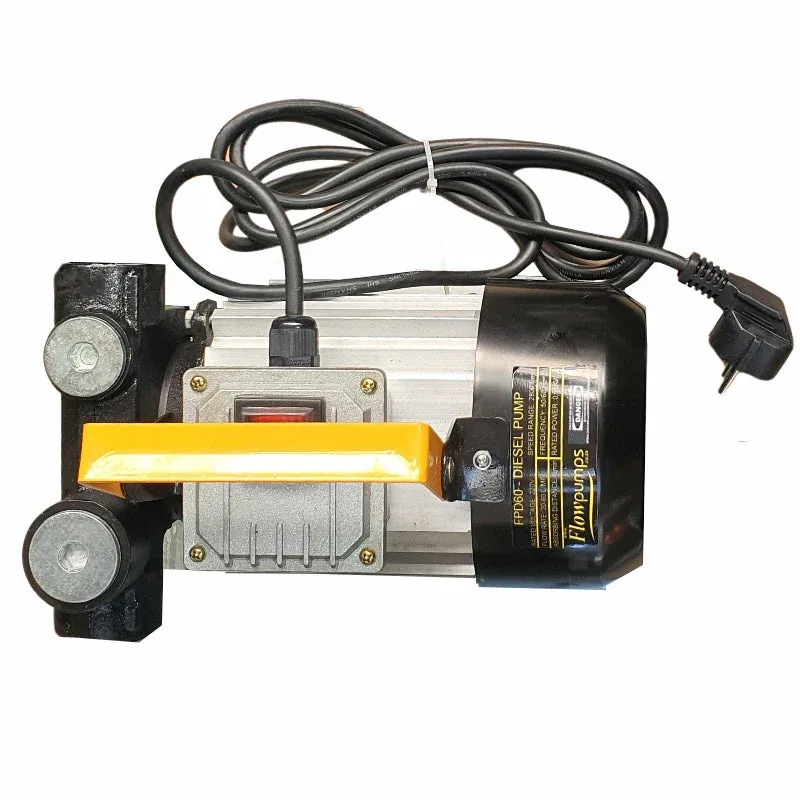

220V cast-iron diesel transfer pump, 60 L/min, with 1 inch BSP inlet and outlet

220V Diesel Transfer Pump, 60 L/min, 0.6 kW, 1″ BSP Ports

Name: 220V Diesel Transfer Pump, 60 L/min, 0.6 kW, 1" BSP Ports
SKU: KMN-FUEL-0020
Price: 2690.10 ZAR
Availability: InStock

SKU KMN-FUEL-0020

A 220V cast-iron rotary-vane diesel pump moving up to 60 L/min, for depots and farm tanks with mains power, delivered from Polokwane in 1 to 3 days.

R2 690,10

Plugs into ordinary single-phase power, no battery to flatten
Cast-iron body that handles daily yard use
20 to 60 L/min, 0.6 kW, 3 bar
1″ BSP inlet and outlet

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Flow rate	20 to 60 L/min
Max head / pressure	3 bar
Voltage / phase	220V AC, single phase
Power	0.60 kW
Inlet / outlet	1" BSP
Self-priming	Yes (rotary vane)
Duty cycle	On request
Fluid compatibility	Diesel and paraffin only, not petrol
Body	Cast iron
Net weight	9 kg
Shipping weight	9.7 kg
Dimensions	On request

Description

Overview

This 220v diesel pump is a cast-iron rotary-vane transfer pump that delivers between 20 and 60 L/min from a tank or IBC on single-phase mains power. It is the bare pump with 1 inch BSP ports, ready for you to plumb into a fixed fuel point or a bowser of your own design.

Running off mains means no flat batteries and a steady flow all day, which is why most workshop and depot fuel points use an AC pump rather than a 12V one. At 0.6 kW it draws less power than a kettle, so an ordinary plug circuit or a mid-sized generator can carry it. The cast-iron body also shrugs off the knocks a pump takes in a busy yard.

Key features

Single-phase 220V motor rated at 0.60 kW
Delivery from 20 up to 60 L/min, depending on hose and lift
Up to 3 bar pressure for longer hose runs
Cast-iron pump body with 1 inch BSP connections
Rotary-vane design that draws fuel up from the tank

Where it works

Transport depots in Gauteng, municipal workshops and mines in the Mpumalanga coalfields fit a 220v diesel pump to an overhead or ground tank to fuel trucks and plant from a fixed point. Farms with Eskom power at the shed use it to fill tractors faster than a 12V pump can. Add a 30 m roll of 20 mm diesel hose for long reach, and mount the hose on a small galvanised hose reel to keep it off the ground. See all diesel pumps and accessories.

What’s in the box

220V AC 60 L/min diesel transfer pump

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces, normally in 1 to 3 days. This item ships at 9.7 kg, which puts it in the up to 30 kg band at R550. Orders of R20,000 or more (VAT incl.) travel free. Ask us for the warranty terms on this model.

Questions about this product

Can I run this pump on a generator during load-shedding?

Yes. The motor is rated at 0.6 kW on single-phase 220V, so a decent 2.5 kVA or larger generator will start and run it comfortably. Electric motors pull extra current at start-up, so avoid tiny inverter generators. Keep the generator well away from the fuel point while you pump.

Will this pump handle petrol?

No. It is built for diesel and paraffin only. The motor is not rated for petrol vapour and the seals are not made for it, so using it on petrol is a fire risk. For petrol you need a pump that is specifically certified for flammable fuels.

How much is delivery to Durban?

The pump ships at 9.7 kg, which falls in the up to 30 kg band at R550 to Durban or anywhere else in South Africa. Our own trucks leave Polokwane and usually arrive in 1 to 3 days. Orders that total R20,000 or more including VAT are delivered free.
