11 kW Heavy-Duty Raw Sewage Pump, 380 V, 150 mm Outlet, 260 m3/h

Name: 11 kW Heavy-Duty Raw Sewage Pump, 380 V, 150 mm Outlet, 260 m3/h
SKU: KMN-SUBM-0023
Price: 42848.00 ZAR
Availability: InStock

SKU KMN-SUBM-0023

An 11 kW heavy-duty submersible sewage pump with 150 mm outlet and 65 mm solids passage, delivered by Kamano to mines and municipalities.

R42 848,00

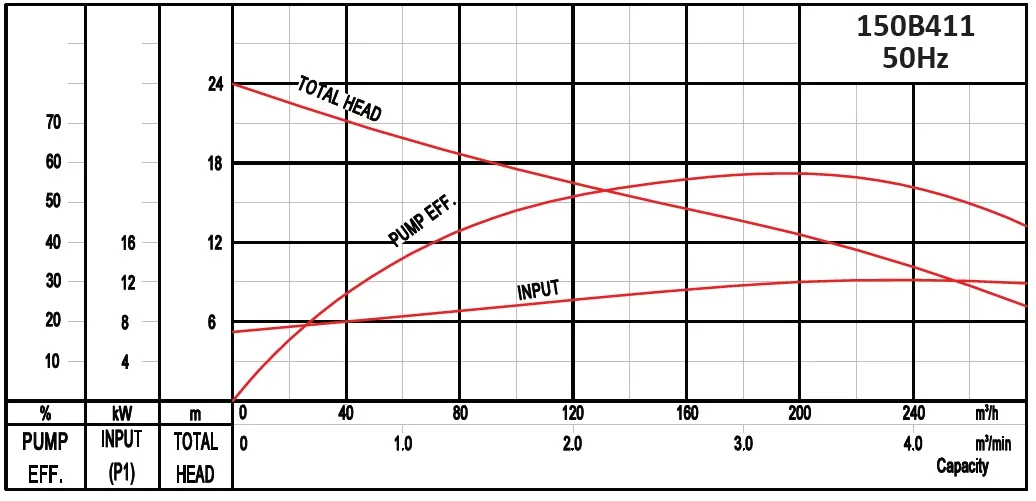

Up to 260 m3/h, 24 m maximum head
150 mm outlet, 65 mm solids passage
Cutter plate and single channel impeller handle stringy solids
Free-standing, guide rail or duck foot installation

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Flow rate	Up to 260 m3/h
Max head / pressure	24 m
Voltage / phase	380 V, three-phase
Power	11 kW (15 HP), 4-pole
Rated current	22 A
Inlet / outlet	Cutter plate inlet / 150 mm outlet
Self-priming	N/A (submersible)
Duty cycle	On request
Fluid compatibility	Raw sewage and sludge up to 40 °C, density 1.3 g/cm3, pH 6 to 10
Impeller	Cast iron, open single channel, 65 mm passage
Seal	Double mechanical, silicon carbide/silicon carbide and carbon graphite/ceramic
Protection class	IP68, Class F
Max immersion depth	20 m
Power cable	8 m
Net weight	190 kg
Shipping weight	215 kg

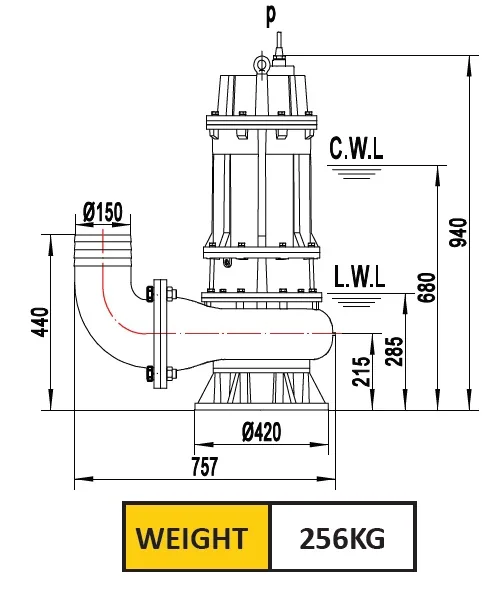

Dimensions	700 x 520 x 780 mm

Description

Overview

This 11 kW (15 HP) heavy-duty submersible sewage pump moves up to 260 m3/h and lifts to 24 m through a 150 mm outlet, which makes it a main-duty pump for municipal stations, abattoirs and mine sumps. An inlet cutter plate and a single channel impeller let it pump stringy solids, and the 65 mm passage deals with the rest. It runs on 380 V three-phase at 22 A, and the IP68 Class F motor is rated for a maximum immersion depth of 20 m.

Key features

Inlet cutter plate for stringy solids
Single channel cast iron impeller, 65 mm passage
Cast iron pump construction
Double mechanical seal, silicon carbide/silicon carbide and carbon graphite/ceramic
IP68, Class F motor, 4-pole
8 m cable, suits free-standing, guide rail and duck foot installations

Where it works

Use it as the duty pump in municipal lift stations across Gauteng and KZN, in abattoir and food-processing effluent pits, in mine dewatering and compound sewage sumps in Mpumalanga and Limpopo, and on large farms moving feedlot slurry. Step down to the 2.2 kW 380 V raw sewage pump for smaller flows or up to the 15 kW raw sewage pump. Browse our submersible pumps.

What’s in the box

11 kW submersible sewage pump
8 m power cable

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, with regular runs to Johannesburg, Durban, Pretoria, eMalahleni, Richards Bay, Polokwane and Cape Town. Fees are set by total order weight: up to 30 kg R550, 30 to 60 kg R950, 60 to 100 kg R1,450, and over 100 kg on quotation. At 215 kg shipping weight, delivery of this pump is on quotation. Orders of R20,000 or more (VAT incl.) ship free. Ask us for the warranty terms on this model.

Questions about this product

Can this pump go on a guide rail?

Yes. It is designed for free-standing, guide rail and duck foot installations. The rail, base elbow and lifting chain are not part of this listing, so ask us for the right accessories for your wet well depth and discharge pipe.

What starter does an 11 kW pump need?

It draws 22 A on 380 V three-phase, so it needs a correctly sized starter with overload protection, and a star-delta or soft starter is common at this size. Ask us to recommend one when you order.

Do you deliver this pump to Durban?

Yes. Kamano delivers with its own trucks from Polokwane to Durban and the rest of South Africa in 1 to 3 days. This pump ships at 215 kg, so delivery is on quotation. Orders of R20,000 or more (VAT incl.) ship free.
