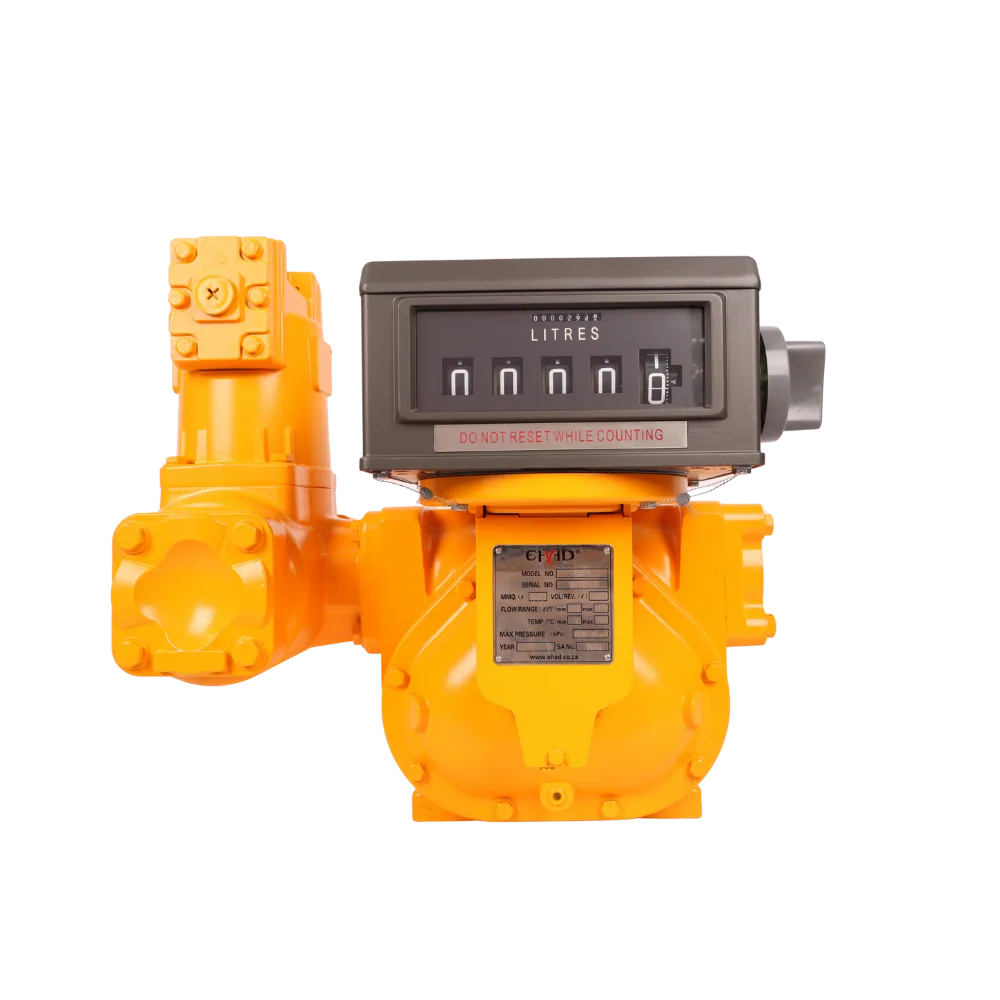

M-80 3 inch positive displacement bulk flowmeter with mechanical register for diesel

M-80 Bulk Flowmeter, 3″ (DN80), 75-1150 L/min

Name: M-80 Bulk Flowmeter, 3" (DN80), 75-1150 L/min
SKU: KMN-FUEL-0079
Price: 34492.50 ZAR
Availability: InStock

SKU KMN-FUEL-0079

The M-80, a 3" positive displacement bulk flowmeter reading up to 1150 L/min for tanker bays and mine fuel receipt, delivered free from Polokwane nationwide.

R34 492,50

Up to 1150 L/min through a 3″ line
Positive displacement, about ±0.5% after calibration
3″ (DN80), rated to 10.5 bar
Mechanical register, ticket printer and pulser ready

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Meter type	Positive displacement, mechanical register
Model	M-80 (BT-M80)
Flow range	75-1150 L/min
Accuracy	±0.5% (typical, after calibration)
Connection size	3" (DN80)
Max pressure	10.5 bar
Material	Cast aluminium alloy
Display type	Mechanical totalising register, ticket printer and pulser optional
Suitable fluids	Diesel, biodiesel, paraffin, fuel oils
Net weight	53 kg
Shipping weight	78 kg
Dimensions	On request (crate 850 × 550 × 680 mm)

Description

Overview

The M-80 (BT-M80) is a 3 inch bulk flowmeter with a positive displacement element and mechanical totalising register, measuring from 75 up to 1150 L/min. It is the workhorse of the M-series for full road tanker loading and offloading.

Calibrated on site it holds about ±0.5%, and the cast aluminium body is rated to 10.5 bar. It weighs about 53 kg and ships crated at around 78 kg, so plan a lifting method. The register takes the M-series ticket printer and pulser.

Because the gear plate, register and strainer housing are common M-series parts, a damaged head or a worn drive can be replaced on site without sending the whole meter away. Keep a spare register on the shelf if the bay runs every day, and recheck calibration after any repair.

Key features

3″ (DN80) connections, 75-1150 L/min
Positive displacement element in cast aluminium
Rated to 10.5 bar
Mechanical totalising register with reset
Accepts ticket printer and pulser add-ons

Where it works

Put a 3 inch bulk flowmeter wherever full tankers load or offload: coal mines around Emalahleni receiving bulk diesel, fuel depots on the N1 and N4, and large transport yards with their own tank farms. It also suits municipal depots that check every delivery against the invoice. For a dial-in batch stop on the same body, choose the M-80 preset bulk flowmeter, or go up a size with the M-100 4″ bulk flowmeter. Fit a strainer and air eliminator upstream. Browse all bulk flowmeters.

What’s in the box

M-80 3″ bulk flowmeter with mechanical register
Shipped crated

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days. The M-80 meter ships at about 78 kg, which puts it in the 60 to 100 kg band (R1,450). At this price it already qualifies for free delivery, which applies to every order of R20,000 or more. Ask us for the warranty terms on this model.

Questions about this product

Should I choose the M-80 or the FMC-80 for my tanker bay?

Both are 3" positive displacement meters. The M-80 covers a wider flow band, up to 1150 L/min, and is set up for diesel and fuel oils. The FMC-80 rotary vane meter reads to ±0.2% and is rated for petrol too. For diesel-only bays the M-80 is the practical choice; for petrol or custody transfer, choose the FMC-80.

What do I need to install with the M-80?

Fit the M-80 strainer housing and air eliminator directly upstream, isolation valves on both sides and solid pipe supports for the 53 kg meter. Add flanges to suit your 3" pipework. Calibrate it on site before first use. A ticket printer or pulser can be added to the register at any time.

Do you deliver to Emalahleni, and what does it cost?

Yes. Our own trucks run from Polokwane to all nine provinces, normally in 1 to 3 days, and Emalahleni is on the route. The M-80 meter weighs about 78 kg packed, so on its own it falls in the 60 to 100 kg band (R1,450). Because the price is above R20,000, delivery on this order is free.
