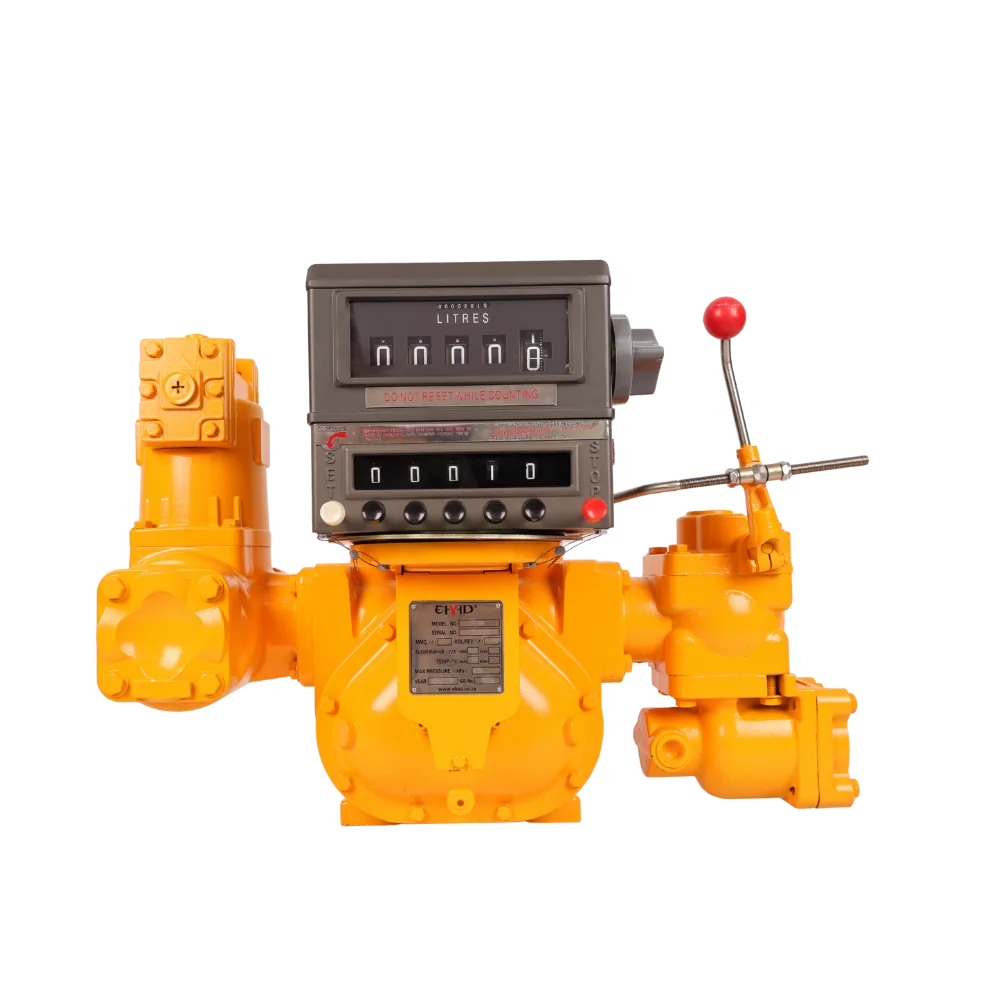

M-80 3 inch preset bulk flowmeter with batch control valve and mechanical register

M-80 Preset Bulk Flowmeter, 3″, Dial-a-Volume Batch Control

Name: M-80 Preset Bulk Flowmeter, 3", Dial-a-Volume Batch Control
SKU: KMN-FUEL-0081
Price: 56227.50 ZAR
Availability: InStock

SKU KMN-FUEL-0081

A 3" positive displacement bulk flowmeter with a preset head that stops the flow at a dialled volume, for tanker loading bays, delivered free from Polokwane.

R56 227,50

Dial in the litres and the preset valve closes at target
Stops overfills on tanker compartments and day tanks
3″ (DN80), 75-1150 L/min, 10.5 bar
Mechanical register, no power needed

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Meter type	Positive displacement, preset batch control
Model	M-80 preset
Flow range	75-1150 L/min
Accuracy	±0.5% (typical, after calibration)
Connection size	3" (DN80)
Max pressure	10.5 bar
Material	Cast aluminium alloy
Display type	Mechanical totalising register with preset dial
Power	None required
Suitable fluids	Diesel, biodiesel, paraffin, fuel oils
Net weight	53 kg
Shipping weight	78 kg
Dimensions	On request (crate 850 × 550 × 680 mm)

Description

Overview

The M-80 preset is a preset flowmeter on the 3″ M-80 positive displacement body: the operator dials in the volume needed, opens the line, and the preset valve closes when that volume has passed. It measures 75 to 1150 L/min on a mechanical totalising register.

Batch control takes the guesswork out of loading. Instead of a driver watching the counter and shutting a valve by hand, the meter does it, which cuts overfills on tanker compartments and generator day tanks.

The body is cast aluminium rated to 10.5 bar, and the register runs without power. It weighs about 53 kg before crating, so plan lifting gear, pipe supports and a strainer with air eliminator upstream.

Key features

Preset head with valve that shuts at the dialled volume
Mechanical totalising register, no power required
3″ (DN80), 75-1150 L/min
Cast aluminium body rated to 10.5 bar
Shares spares with the standard M-80

Where it works

A preset flowmeter earns its keep on tanker loading gantries at depots, on mine fuel bays near Thabazimbi where haul trucks get a fixed allocation, and at fuel distributors filling multi-compartment tankers. It also suits power and water sites that top up standby generator tanks to a set level. If your bay is dispatching petrol or needs custody accuracy, consider the FMC-80 3″ rotary vane flowmeter, and for an electronic readout look at the M-80 digital bulk flowmeter. Browse more bulk flowmeters.

What’s in the box

M-80 3″ bulk flowmeter with preset head and mechanical register
Shipped crated

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days. The M-80 preset meter ships at about 78 kg, which puts it in the 60 to 100 kg band (R1,450). At this price it already qualifies for free delivery, which applies to every order of R20,000 or more. Ask us for the warranty terms on this model.

Questions about this product

How does the preset function work?

You set the required volume on the preset dial and open the delivery. As the meter counts down to the target, the preset valve closes and stops the flow. The driver no longer has to watch the register and shut the valve by hand, which saves fuel lost to overfills and spills.

Is the M-80 preset heavier than the standard M-80?

No. It is based on the same 53 kg body and the listed weights match the standard M-80. It ships crated at around 78 kg, which is still in the 60 to 100 kg delivery band. Plan a forklift or lifting tackle on site to install it.

Do you deliver to Thabazimbi, and what does it cost?

Yes. Our own trucks run from Polokwane to all nine provinces, normally in 1 to 3 days, and Thabazimbi is on the route. The M-80 preset meter weighs about 78 kg packed, so on its own it falls in the 60 to 100 kg band (R1,450). Because the price is above R20,000, delivery on this order is free.
