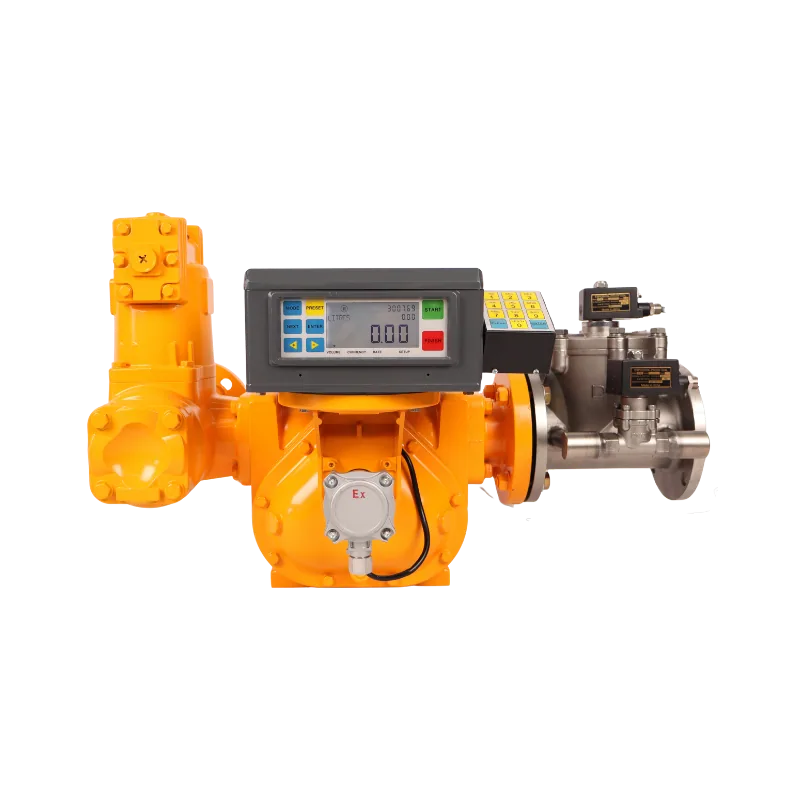

M-80 Digital Bulk Flowmeter, 3″, Electronic Register, 220V

Description

Overview

The M-80 digital (BT-M80E) is an electronic fuel flowmeter built on the 3″ M-80 positive displacement body, measuring 75 to 1150 L/min. Instead of number wheels, the volume shows on an electronic register powered from 220V AC, which accepts supply swings of ±20%.

The measuring element, the 10.5 bar rating and the cast aluminium body are the same as the mechanical M-80, so accuracy after on-site calibration is in the same ±0.5% class. The electronics only change how the reading is shown.

At about 57 kg net and 82 kg packed, it needs a forklift or lifting tackle on site, solid pipe supports either side, and a strainer and air eliminator directly upstream to keep air and grit out of the element.

Key features

• Electronic register on the 3″ M-80 body
• 75-1150 L/min measuring range
• 220V AC supply with ±20% tolerance
• Cast aluminium body rated to 10.5 bar
• Same positive displacement element as the mechanical M-80

Where it works

Choose an electronic fuel flowmeter for fixed, powered sites: chrome and platinum mine fuel bays near Steelpoort, large municipal fleet depots, bus and transport depots in Gauteng, and fuel distributors loading tankers from their own tank farms. Back up the supply with a UPS or inverter so load-shedding does not cut a delivery short. The 2″ M-50 digital bulk flowmeter suits smaller lines, and a flange set for bulk flowmeters makes the pipe connection neat. See all bulk flowmeters.

What’s in the box

• M-80 3″ bulk flowmeter with electronic register

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days. The M-80 digital meter ships at about 82 kg, which puts it in the 60 to 100 kg band (R1,450). At this price it already qualifies for free delivery, which applies to every order of R20,000 or more. Ask us for the warranty terms on this model.
