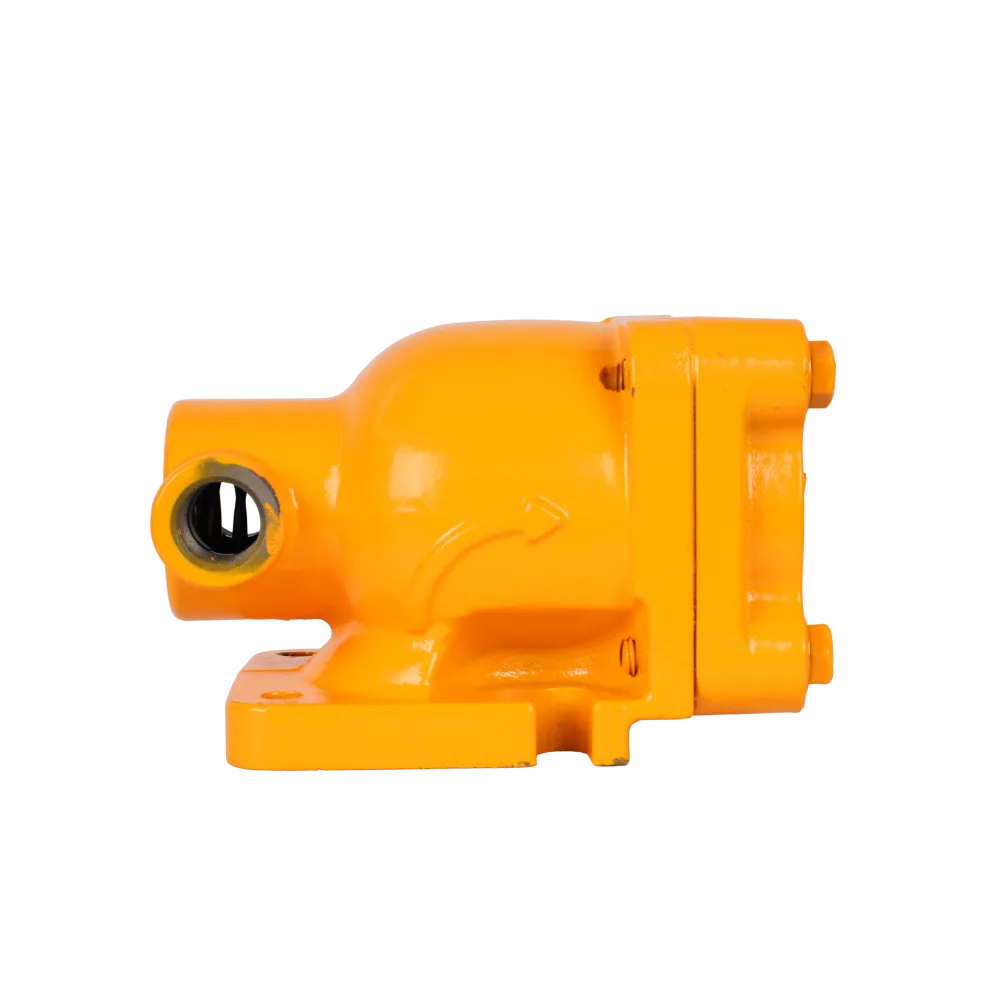

3 inch cast-aluminium check valve for M80 and M100 bulk flowmeter outlet

3″ Check Valve for M80 and M100 Bulk Flowmeters, Cast Aluminium

Name: 3" Check Valve for M80 and M100 Bulk Flowmeters, Cast Aluminium
SKU: KMN-FUEL-0050
Price: 6142.50 ZAR
Availability: InStock

SKU KMN-FUEL-0050

A 3" cast-aluminium check valve for M80 and M100 bulk flowmeters on tankers and depot lines, delivered from Polokwane to all nine provinces.

R6 142,50

Keeps high-flow tanker and depot lines primed between loads
Prevents reverse flow that makes bulk meters over-read
3″ connection for M80 and M100 meters
Cast aluminium, 10.5 bar working pressure

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Part type	Non-return (check) valve, part code CH004
Flow range	N/A (line valve; suits M80 75 to 1150 L/min and M100 meters)
Accuracy	N/A (no measuring element)
Connection size	3"
Max pressure	10.5 bar
Material	Cast aluminium
Display type	N/A (no register)
Net weight	4.5 kg
Shipping weight	5 kg
Dimensions	210 × 130 × 150 mm

Description

Overview

This 3 inch check valve is a cast-aluminium non-return valve for the outlet of M80 and M100 bulk flowmeters. It opens under pump pressure and snaps shut when flow stops, holding fuel in the line so nothing drains back through the meter. It has no register; it is a line component that protects your measurement.

On big lines the cost of a drained pipe adds up fast. An M80 meter runs from 75 to 1150 L/min, so a line full of air at the start of each delivery throws the count off on every load. Fit a sound valve and each delivery starts with a full, primed line. Part code CH004.

Key features

3″ size for M80 and M100 bulk meter outlets
Suits high-flow meters such as the M80 at 75 to 1150 L/min
Cast-aluminium body
10.5 bar working pressure
Holds the line full between tanker drops

Where it works

This 3 inch check valve belongs on road tankers that deliver to farms, mines and forecourts, on depot loading points in Gauteng, and on bulk diesel installations at Mpumalanga coal mines where meter accuracy is checked against stock levels. Complete the outlet side with an M-100 decalitre mechanical register or service the inlet with the M-80 strainer housing and air eliminator. More spares are listed under fuel flowmeters.

What’s in the box

1 × 3″ cast-aluminium check valve

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces, normally in 1 to 3 days. This item ships at 5 kg, which puts it in the up-to-30 kg band at R550. Orders of R20,000 or more (VAT incl.) travel free, so it pays to combine it with a bigger order. Ask us for the warranty terms on this model.

Questions about this product

Will it fit my M80 meter?

It is made for the outlet of M80 and M100 bulk flowmeters with a 3" connection. Meters vary between makers, so send us the meter model and a photo of the outlet flange before ordering, and we will confirm the fit. For M40 and M50 meters, order the 2" check valve instead.

How do I know my check valve has failed?

Typical signs are a meter that reads high on the first litres of each delivery, a pump that has to re-prime every time, or fuel draining back into the tank after the pump stops. Open the valve and check the flap and seat for wear, dirt or swelling. A sticking valve should be replaced.

Do you deliver to Secunda?

Yes. We deliver to Secunda and every other town in the nine provinces with our own trucks from Polokwane, normally in 1 to 3 days. The valve ships at 5 kg, which puts it in the up-to-30 kg band at R550. Orders of R20,000 or more including VAT travel free.
