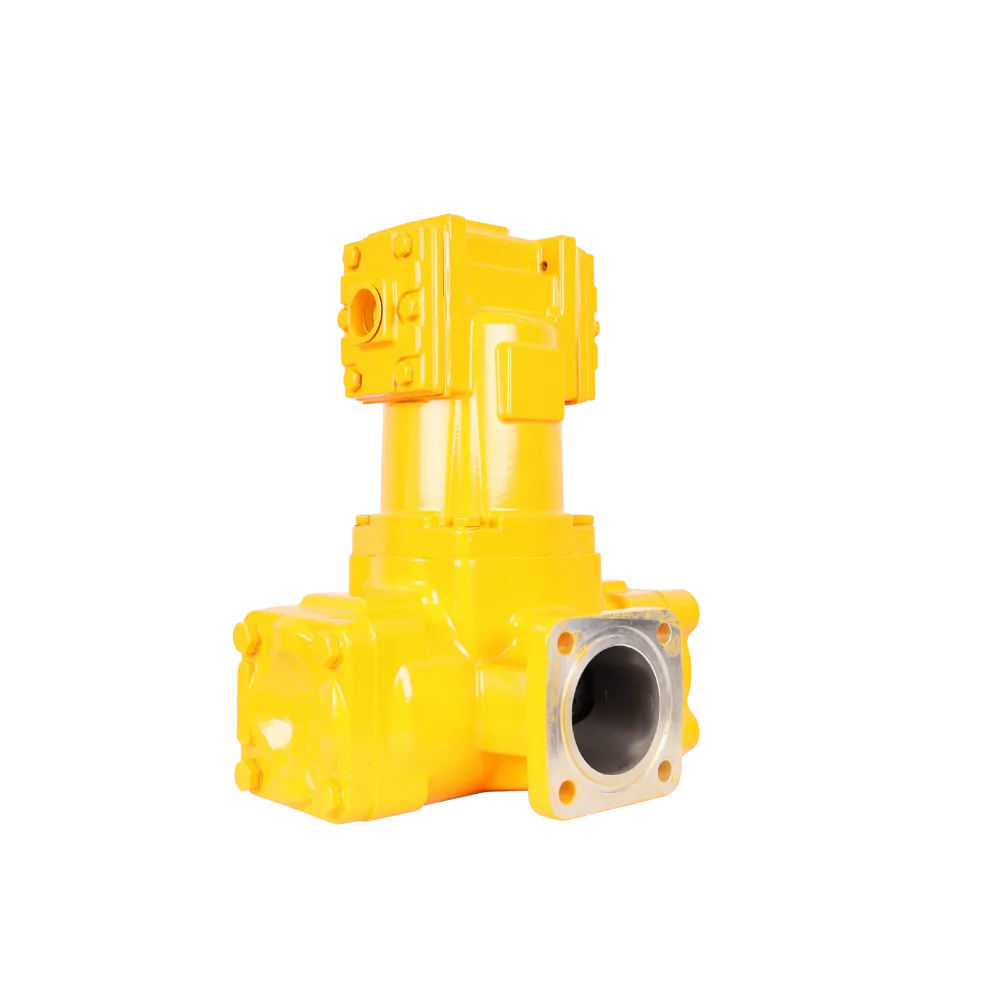

M-80 3 inch strainer housing and air eliminator for bulk diesel flowmeter

M-80 Strainer Housing and Air Eliminator, 3″ BSP

Name: M-80 Strainer Housing and Air Eliminator, 3" BSP
SKU: KMN-FUEL-0082
Price: 8032.50 ZAR
Availability: InStock

SKU KMN-FUEL-0082

A 3" strainer housing with air eliminator that protects the M-80 bulk flowmeter from grit and air, delivered from Polokwane to all nine provinces.

R8 032,50

Catches grit and vents air ahead of the M-80 meter
Keeps the meter from counting air as fuel
3″ BSP female ports, 10.5 bar (code S/A-A)
Sized for 75-1150 L/min

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Part type	Strainer housing and air eliminator
Code	S/A-A
Fits	M-80 3" bulk flowmeter
Flow range	75-1150 L/min (M-80 meter)
Connection size	3" BSP female
Max pressure	10.5 bar
Material	Cast aluminium alloy
Strainer mesh	On request
Display type	N/A (accessory)
Net weight	11 kg
Shipping weight	12 kg
Dimensions	350 × 230 × 380 mm

Description

Overview

This flowmeter strainer and air eliminator mounts ahead of the 3″ M-80 bulk meter and does two jobs in one cast aluminium housing. A strainer basket traps scale, rust and weld slag from tanks and pipes, and the air eliminator chamber lets entrained air separate and vent before the fuel reaches the measuring element.

Both protect your money: grit wears the displacement element, and every bubble that passes through an unprotected meter is billed as fuel. The housing has 3″ BSP female ports and is rated to 10.5 bar.

It weighs about 11 kg, so it bolts in without lifting gear. Leave clearance above the cover so the basket can be pulled and washed without breaking the pipework.

Key features

Strainer and air eliminator in one housing
3″ BSP female inlet and outlet
Rated to 10.5 bar
Matched to M-80 flows of 75-1150 L/min
Basket lifts out for cleaning

Where it works

Fit a flowmeter strainer on every M-80 line that offloads tankers or draws from a storage tank: iron ore and manganese mines around Kathu, fuel depots, transport yards with underground tanks, and farm co-ops receiving bulk diesel. New installations need it most, as fresh pipework sheds scale for months. Install it directly upstream of the M-80 3″ bulk flowmeter, and add a mechanical register with ticket printer if you need dockets. Find more flowmeter accessories.

What’s in the box

M-80 strainer housing and air eliminator unit

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days. The M-80 strainer unit ships at about 12 kg, which puts it in the up to 30 kg band (R550). Delivery is free on orders of R20,000 or more, so it is worth adding the rest of your fuel kit to the same order. Ask us for the warranty terms on this model.

Questions about this product

Will this strainer fit my M-50 or M-100 meter?

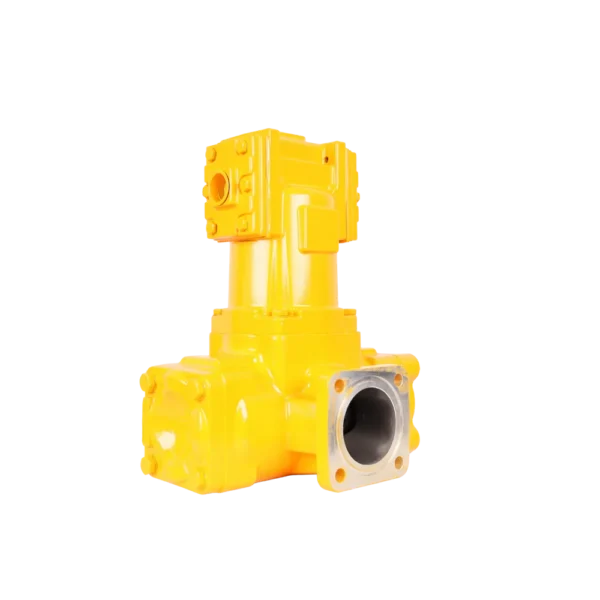

No. This unit has 3" BSP ports to match the M-80. The M-100 has its own 4" strainer and air eliminator, and smaller meters need a housing to suit their bore. Tell us your meter model and pipe size and we will match the right unit, so you do not end up with reducers choking the flow.

Where exactly should I install it?

Directly on the inlet side of the meter, as close as possible, with the vent at the top so air can escape. Put an isolation valve before it so you can clean the basket without draining the whole line. Pipe the vent outlet to a safe place or back to the tank, never to open ground.

Do you deliver to Kathu, and what does it cost?

Yes. Our own trucks run from Polokwane to all nine provinces, normally in 1 to 3 days, and Kathu is on the route. The M-80 strainer unit weighs about 12 kg packed, so on its own it falls in the up to 30 kg band (R550). Add enough to reach R20,000 including VAT and the whole order ships free.
