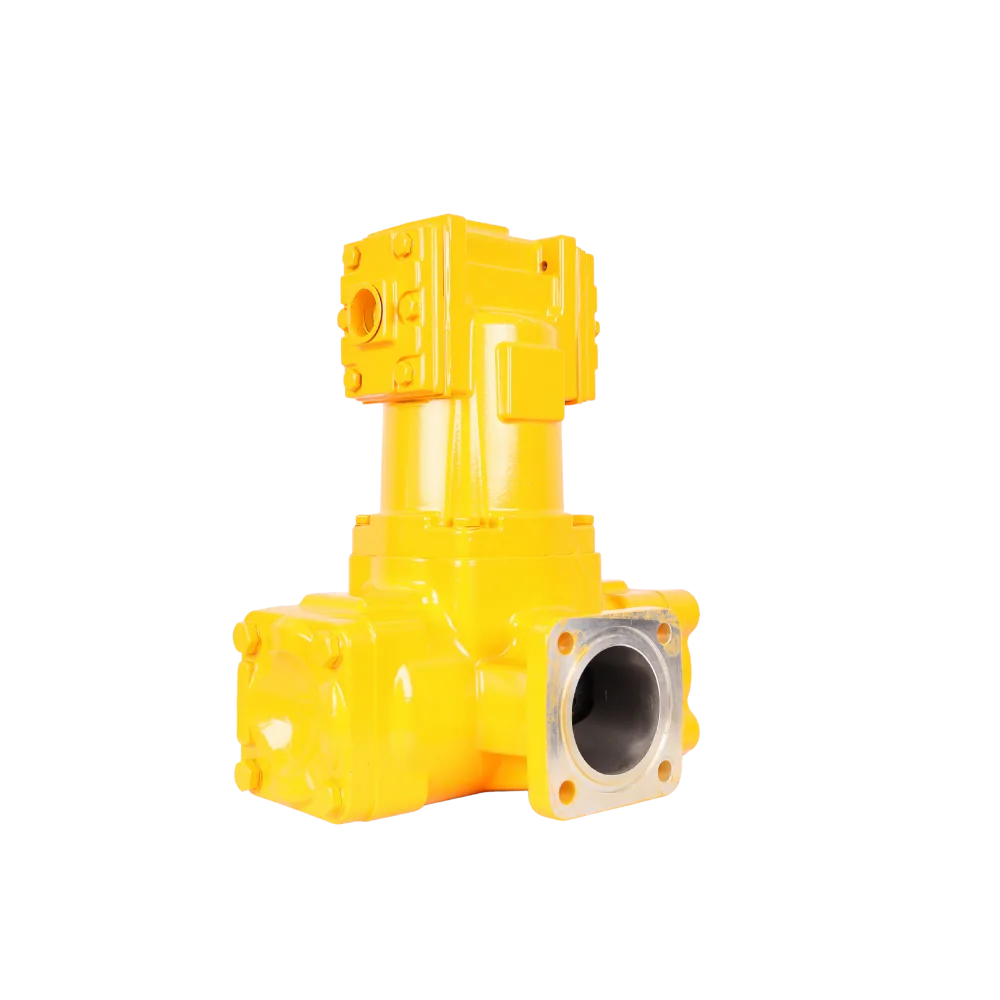

M-100 Strainer Housing and Air Eliminator, 4″ BSP

Name: M-100 Strainer Housing and Air Eliminator, 4" BSP
SKU: KMN-FUEL-0075
Price: 9922.50 ZAR
Availability: InStock

SKU KMN-FUEL-0075

A 4" strainer housing and air eliminator that cleans and de-aerates fuel ahead of the M-100 bulk meter, delivered from Polokwane to all nine provinces.

R9 922,50

Stops grit and vents trapped air before they reach the meter
Matched to the M-100 4″ bulk flowmeter (code S/A-S)
4″ BSP female ports, 10.5 bar working pressure
Handles the full 130-1700 L/min range

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Part type	Strainer housing and air eliminator
Code	S/A-S
Fits	M-100 4" bulk flowmeter
Flow range	130-1700 L/min (M-100 meter)
Connection size	4" BSP female
Max pressure	10.5 bar
Material	Cast aluminium alloy
Strainer mesh	On request
Display type	N/A (accessory)
Net weight	11 kg
Shipping weight	12 kg
Dimensions	350 × 230 × 380 mm

Description

Overview

This is a strainer housing combined with an air eliminator for flowmeter lines on the 4″ M-100 bulk meter. Fuel passes through a strainer basket that catches scale, rust and grit, then through a chamber where entrained air rises and is vented off before the product reaches the measuring element.

Both problems matter: grit scores the displacement element, and air passing through a meter is counted as fuel, so the customer pays for bubbles. The cast aluminium housing has 4″ BSP female ports and is rated to 10.5 bar across the M-100’s 130-1700 L/min range.

Key features

Strainer and air eliminator in one cast housing
4″ BSP female inlet and outlet
Rated to 10.5 bar
Sized for 130-1700 L/min M-100 flows
Removable strainer basket for cleaning

Where it works

An air eliminator for flowmeter installations is essential when offloading road tankers, where the last few hundred litres pull air into the line, and on suction lines from underground tanks at depots and mines. Coal mines around Middelburg and Witbank, bulk fuel depots and large fleet yards fit it as standard on 4″ lines. Mount it directly upstream of the M-100 4″ bulk flowmeter, and complete the set with the M-100 register with ticket printer for printed dockets. More parts are in our flowmeter range.

What’s in the box

M-100 strainer housing and air eliminator unit

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days. The M-100 strainer unit ships at about 12 kg, which puts it in the up to 30 kg band (R550). Delivery is free on orders of R20,000 or more, so it is worth adding the rest of your fuel kit to the same order. Ask us for the warranty terms on this model.

Questions about this product

Do I really need an air eliminator on a bulk meter?

On any tanker or suction line, yes. When a tanker runs low or a suction line draws a vortex, air goes through the meter and is counted as fuel. On a 4" meter that can add up to many litres per load. The air eliminator vents that air, and the strainer keeps grit out of the measuring element.

How often should I clean the strainer basket?

Check it weekly on a busy tanker bay and after any new tank or pipe work, when scale and weld slag come loose. A rising pressure drop or falling flow rate is the sign it is blocking. Close the valves, release pressure, open the cover and wash the basket in clean diesel before refitting.

Do you deliver to Middelburg, and what does it cost?

Yes. Our own trucks run from Polokwane to all nine provinces, normally in 1 to 3 days, and Middelburg is on the route. The M-100 strainer unit weighs about 12 kg packed, so on its own it falls in the up to 30 kg band (R550). Add enough to reach R20,000 including VAT and the whole order ships free.
