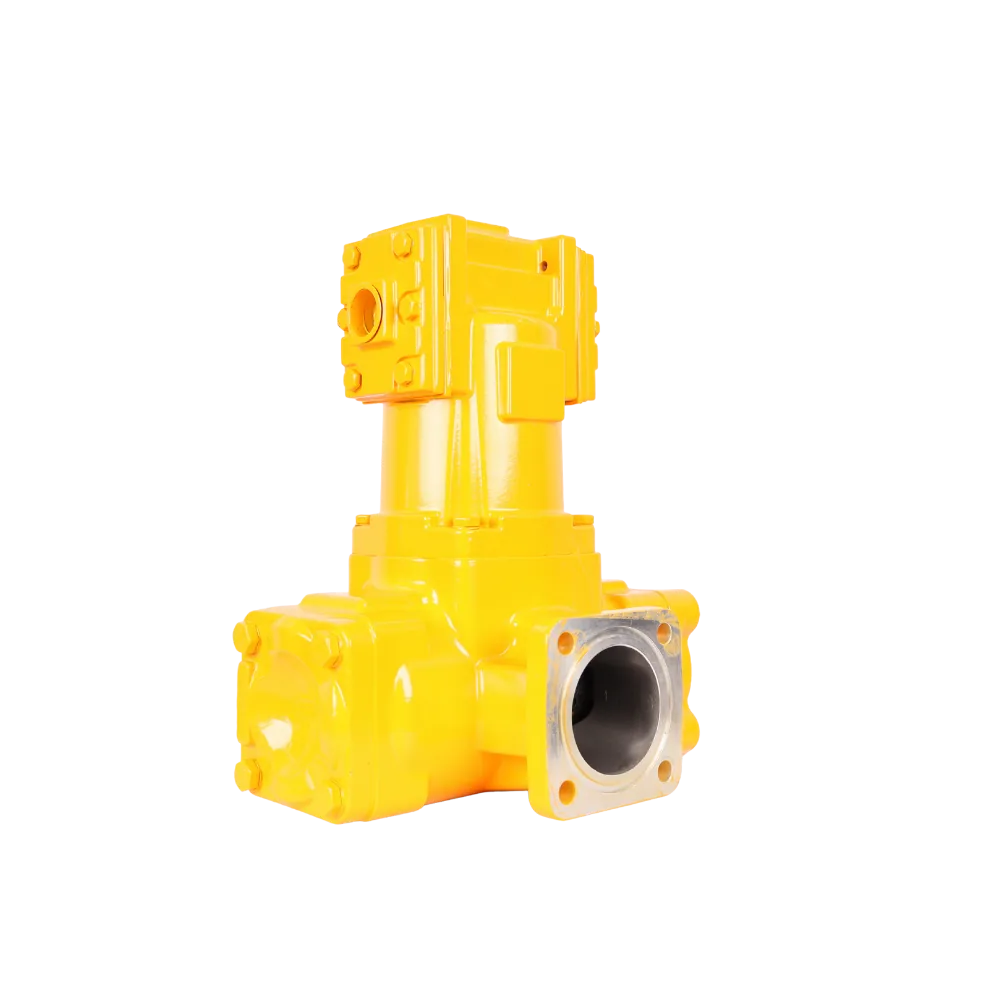

Cast aluminium strainer housing and air eliminator for M-40 and M-50 bulk fuel flowmeters

Strainer Housing and Air Eliminator for M-40 and M-50 Bulk Meters

Name: Strainer Housing and Air Eliminator for M-40 and M-50 Bulk Meters
SKU: KMN-FUEL-0117
Price: 8032.50 ZAR
Availability: InStock

SKU KMN-FUEL-0117

A cast aluminium strainer and air eliminator that bolts ahead of an M-40 or M-50 bulk meter, for depots and farms, delivered from Polokwane in 1 to 3 days.

R8 032,50

Stops air and grit being counted as fuel
One casting does both jobs, so the line stays short
Fits M-40 (1.5″) and M-50 (2″) meters, BSP female
Rated to 10.5 bar working pressure

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Part type	Strainer housing with float air eliminator
Flow range	N/A (accessory, follows the M-40/M-50 meter)
Accuracy	N/A (accessory)
Connection size	M-40 1.5" or M-50 2", BSP female
Max pressure	10.5 bar working pressure
Material	Cast aluminium
Display type	N/A (accessory)
Fluid compatibility	Diesel, paraffin and fuel oils
Net weight	5 kg
Shipping weight	6 kg
Dimensions	300 × 330 × 180 mm

Description

Overview

This unit is an air eliminator for bulk meter lines that also houses the inlet strainer, sized for M-40 and M-50 meters. Fuel enters the housing, passes through a mesh basket, and any air or vapour rises to the top where a float valve vents it before the liquid reaches the meter. The meter then counts only diesel, not bubbles.

Air gets in more often than people think: when a tanker compartment runs dry, when a suction hose has a tired seal, or when a pump starts on a half-empty line. Without an eliminator those litres of air are billed as fuel. It mounts directly to the M-50 2″ bulk flowmeter or the smaller M-40 1.5″ bulk flowmeter.

Key features

Combined strainer and float-type air eliminator
Cast aluminium body for diesel and fuel oils
1.5″ (M-40) or 2″ (M-50) BSP female ports
10.5 bar maximum working pressure
Basket lifts out for cleaning without removing the meter

Where it works

Road tanker offloading points, fleet yards and agricultural co-ops use this set-up wherever fuel is bought and sold by the litre. In Limpopo and KZN it is common on farm depots that receive diesel by tanker and dispense to bowsers. Installing an air eliminator for bulk meter accuracy is the simplest way to stop disputes over short deliveries. See other parts in our bulk flowmeter range.

What’s in the box

Cast aluminium strainer housing with air eliminator
Strainer basket

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces, normally within 1 to 3 days. The unit ships at 6 kg, which falls in the up-to-30 kg band at R550. Orders of R20,000 or more (VAT incl.) travel free. Ask us for the warranty terms on this model.

Questions about this product

Will this fit an M-80 or M-100 meter?

No. This housing is sized for M-40 and M-50 meters only, with 1.5" or 2" ports. The larger meters use their own bigger housings, such as the M-80 and M-100 units, because they move far more fuel per minute. Tell us your meter model and we will match the correct one.

Why do I need an air eliminator if my pump is good?

A good pump still pushes air when the supply tank runs low, a tanker compartment empties or a suction joint leaks. The meter counts that air as litres. On a busy depot the error adds up quickly, so the eliminator pays for itself in fuel you are no longer paying for twice.

How much is delivery to Mbombela?

The housing ships at 6 kg, which is in the up-to-30 kg band at R550 for anywhere in South Africa, Mbombela included. Our own trucks run from Polokwane and normally arrive in 1 to 3 days. Orders that total R20,000 or more including VAT are delivered free.
