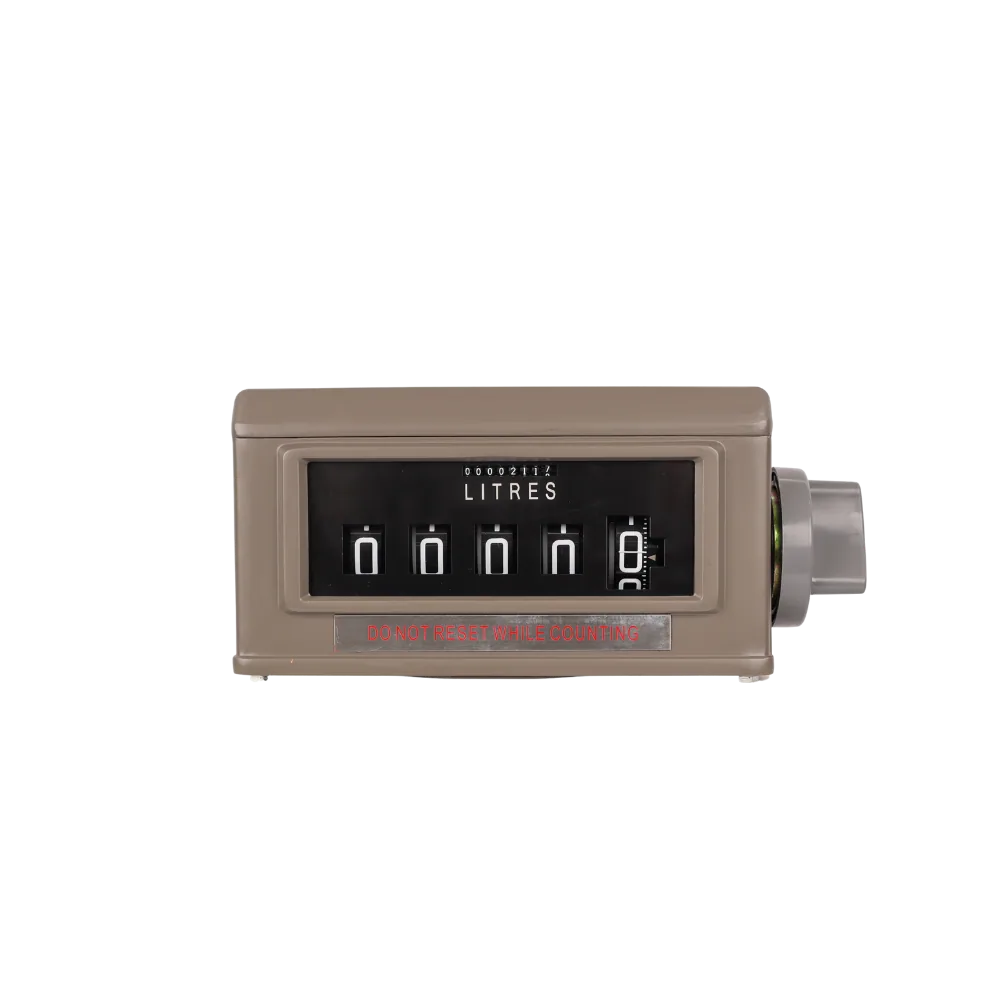

M-100 decalitre mechanical register head with 5 digit reset counter and totaliser

M-100 Decalitre Mechanical Register with Gear Plate

Name: M-100 Decalitre Mechanical Register with Gear Plate
SKU: KMN-FUEL-0073
Price: 6993.00 ZAR
Availability: InStock

SKU KMN-FUEL-0073

A replacement decalitre register head with gear plate for the 4" M-100 bulk flowmeter, for depots and mines, delivered nationwide from Polokwane.

R6 993,00

Puts a worn or broken M-100 meter back into service
Reads in decalitres, sized for 4″ bulk flows
5-digit resettable counter plus a totaliser
Gear plate included, ready to bolt on

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Part type	Mechanical register head
Code	M100M
Fits	M-100 4" bulk flowmeter
Display type	Mechanical 5-digit reset counter plus totaliser, decalitre units
Flow range	N/A (register)
Accuracy	N/A (set by the meter body)
Connection size	N/A (bolts to M-100 meter)
Max pressure	N/A (register)
Material	Aluminium alloy housing
Net weight	4 kg
Shipping weight	5.5 kg
Dimensions	290 × 220 × 150 mm

Description

Overview

This flowmeter mechanical register is the counter head for the M-100 4″ bulk meter (code M100M), supplied with its gear plate. It reads in decalitres, so each unit on the counter is 10 litres, which keeps the numbers readable at flows up to 1700 L/min.

The face carries a 5-digit counter you reset per delivery and a totaliser that keeps the running figure. When a register has been damaged, fogged or worn out, replacing the head is quicker and cheaper than buying a new meter.

Key features

Decalitre reading for high-flow 4″ lines
5-digit reset counter with a separate totaliser
Gear plate supplied with the register
Mechanical, no power or batteries needed
Direct fit on the M-100 meter body

Where it works

Swap in this flowmeter mechanical register on M-100 meters at fuel depots, mine diesel bays in the Northern Cape and Limpopo, and large fleet yards where the old counter has become unreliable. Keeping a spare head on site means a tanker bay is back in service the same day rather than waiting for a full meter. If you need printed dockets, the M-100 register with ticket printer is the alternative, and fit the M-100 strainer housing and air eliminator to protect the meter. Browse more flowmeter parts.

What’s in the box

M-100 decalitre mechanical register head
Gear plate

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days. The M-100 register ships at about 5.5 kg, which puts it in the up to 30 kg band (R550). Delivery is free on orders of R20,000 or more, so it is worth adding the rest of your fuel kit to the same order. Ask us for the warranty terms on this model.

Questions about this product

What does decalitre mean on this register?

Each step on the counter equals 10 litres. On a 4" meter moving well over 1000 litres a minute, a litre counter would spin too fast to read, so the M-100 register counts in tens. Multiply the reading by ten for litres, or read it straight off as decalitres on your dockets.

Will this register fit an M-80 or M-50 meter?

No. This head is matched to the M-100 4" meter. For M-40, M-50 and M-80 meters, use our mechanical register for bulk flowmeters, which comes with the correct gear plate. If you are not sure which meter you have, send us a photo of the nameplate.

Do you deliver to Kimberley, and what does it cost?

Yes. Our own trucks run from Polokwane to all nine provinces, normally in 1 to 3 days, and Kimberley is on the route. The M-100 register weighs about 5.5 kg packed, so on its own it falls in the up to 30 kg band (R550). Add enough to reach R20,000 including VAT and the whole order ships free.
