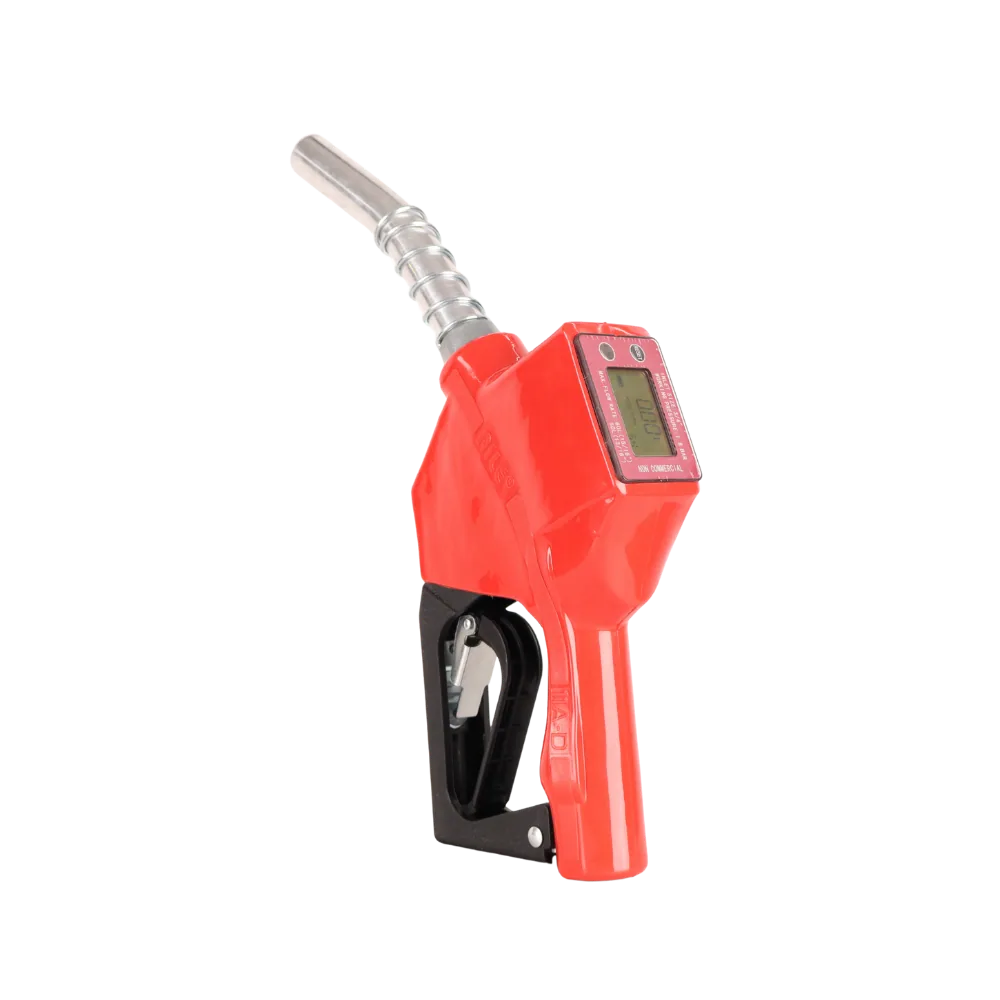

Compact automatic digital metering nozzle with 3/4 inch inlet and 19 mm outlet

Compact Digital Metering Nozzle with Auto Stop, 3/4″ Inlet, up to 60 L/min

Name: Compact Digital Metering Nozzle with Auto Stop, 3/4" Inlet, up to 60 L/min
SKU: KMN-FUEL-0056
Price: 2315.25 ZAR
Availability: InStock

SKU KMN-FUEL-0056

A compact automatic metering nozzle with digital readout and 3/4" inlet for smaller hoses and service vehicles, delivered from Polokwane in 1 to 3 days.

R2 315,25

Auto stop at full, with litres shown on a digital display
Slim 1.7 kg body for one-handed use on service vehicles
Up to 60 L/min, 3/4″ inlet, 19 mm outlet
Runs on 2 × AAA batteries (not included)

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Flow range	Up to 60 L/min (one supplier summary states 70 L/min)
Accuracy	On request
Connection size	3/4" inlet, 19 mm outlet (supplier figure; confirm before ordering)
Max pressure	3.5 bar max, 0.18 MPa working
Material	On request
Display type	Digital: batch plus total
Shut-off	Automatic when tank is full
Power	2 × AAA batteries (not included)
Fluid compatibility	Diesel, paraffin, light oils (not petrol)
Net weight	1.7 kg
Shipping weight	1.9 kg
Dimensions	410 × 50 × 170 mm

Description

Overview

This digital metering nozzle is an automatic fuel nozzle with an electronic flowmeter and display, built on a slim body with a 3/4″ inlet and 19 mm outlet. It measures up to 60 L/min, shows each fill and a running total, and shuts off by itself when the tank is full. It runs on two AAA batteries, which are not included.

The smaller inlet makes it a good match for 20 mm hose on bakkie bowsers, lube trucks and service vehicles, where a heavy 1″ nozzle feels clumsy. At 1.7 kg it is easy to hold steady. If your hose is 25 mm, the auto shut-off digital nozzle with 1″ inlet is the direct fit.

Key features

Automatic shut-off when fuel reaches the spout tip
Digital display with batch and cumulative totals
Flow up to 60 L/min
3/4″ inlet, 19 mm outlet
Rated to 3.5 bar, with a working pressure of 0.18 MPa

Where it works

Use this digital metering nozzle on a 20 mm hose fitted to a bakkie sakkie serving contractors in the Western Cape, on a mine service truck in the Northern Cape, or at a small municipal fuel point where each vehicle’s fill is logged. For dispensing a set volume from a mains pump, look at the OGM-25 220V preset flowmeter. Our full fuel flowmeters range covers inline meters and spares.

What’s in the box

1 × digital metering nozzle with auto stop
Batteries not included (2 × AAA needed)

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces, normally in 1 to 3 days. This item ships at 1.9 kg, which puts it in the up-to-30 kg band at R550. Orders of R20,000 or more (VAT incl.) travel free, so it pays to combine it with a bigger order. Ask us for the warranty terms on this model.

Questions about this product

What is the difference between this and the 1" auto stop nozzle?

Mainly the inlet and body size. This model has a 3/4" inlet and a slimmer 1.7 kg body, suited to 20 mm hose on service vehicles. The other auto shut-off nozzle takes a 1" inlet for 25 mm hose. Both shut off automatically and show litres on a digital display, so choose by hose size.

What batteries does it need?

It runs on two AAA batteries, which are not included in the box. Fit good-quality alkaline cells and keep a spare pair in the vehicle. Replace them when the display dims or flickers, because weak batteries can affect the reading before the screen goes completely blank.

Will it fit my 25 mm hose?

Not directly. The supplier lists a 3/4" inlet, which suits 20 mm hose. You can fit it to a larger hose with a reducer, but flow may be restricted. If your system already runs 25 mm hose, the 1" inlet auto stop nozzle is the simpler fit. Ask us to confirm before ordering.

How much is delivery to Cape Town?

The nozzle ships at 1.9 kg, so it falls in the up-to-30 kg band at R550, Cape Town included. Our own trucks run from Polokwane and normally arrive within 1 to 3 days. Orders of R20,000 or more including VAT ship free.

Nationwide delivery from Polokwane

Delivered to all nine provinces in 1 to 3 days

We deliver the Compact Digital Metering Nozzle with Auto Stop, 3/4" Inlet, up to 60 L/min with our own trucks to Johannesburg, Pretoria, Cape Town, Durban, Gqeberha, Bloemfontein, Polokwane, Mbombela, Thohoyandou, Secunda, Klerksdorp, East London, Upington and George, and to farms, mines and sites in between. This item ships in the R550 delivery band (up to 30 kg). Orders of R20,000 or more deliver free with code KH027.
