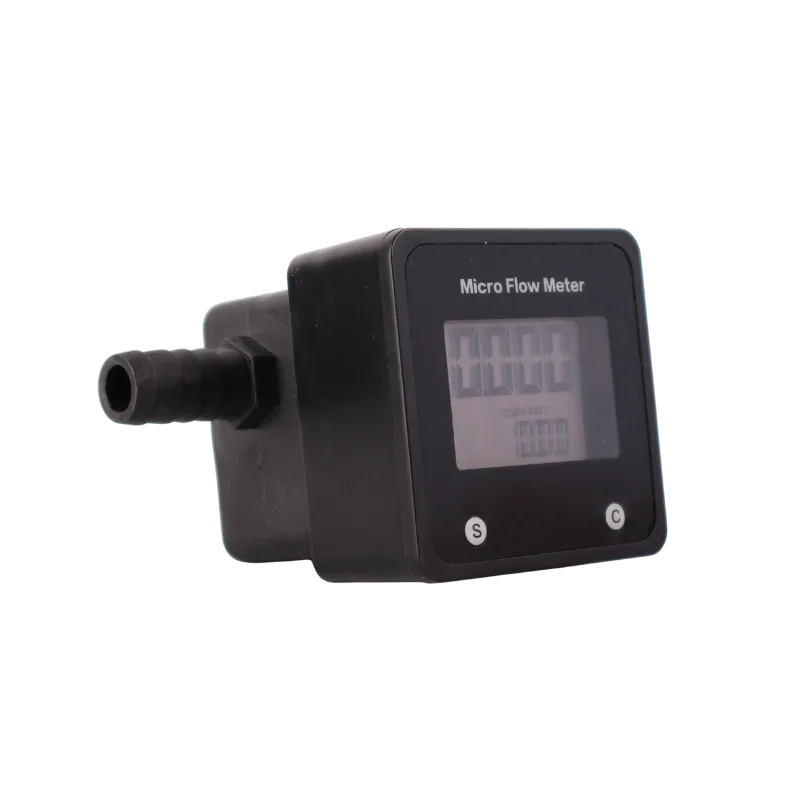

FS200DPF micro digital flowmeter with LCD and 12 mm tube ports, 0.1 to 10 L/min

Micro Digital Flowmeter, 0.1-10 L/min, 12 mm Tube Ports (FS200DPF)

Name: Micro Digital Flowmeter, 0.1-10 L/min, 12 mm Tube Ports (FS200DPF)
SKU: KMN-FUEL-0088
Price: 2315.25 ZAR
Availability: InStock

SKU KMN-FUEL-0088

A micro digital flowmeter with 12 mm tube ports, reading 0.1 to 10 L/min, for dosing lines, test rigs and small engines, delivered from Polokwane nationwide.

R2 315,25

12 mm tube ports for direct connection to small-bore lines
Reads from 0.1 L/min up to 10 L/min
PPS body and rotor, SS304 shaft, under 10 bar
LCD readout, 3V DC supply

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Meter type	Micro digital rotor flowmeter
Model	FS200DPF
Flow range	0.1-10 L/min
Accuracy	±1% (typical)
Connection size	12 mm tube (G1/2" also listed)
Max pressure	Under 10 bar
Material	PPS body and rotor, SS304 shaft, NBR O-ring
Display type	Digital LCD
Power	3V DC
Suitable fluids	Diesel, light oils, water-based fluids, AdBlue
Net weight	On request
Shipping weight	1 kg
Dimensions	On request

Description

Overview

The FS200DPF is a micro fuel flow meter for small-bore lines, with 12 mm tube ports instead of threads and a range from 0.1 to 10 L/min. A rotor in the stream drives the electronics, which show the volume on an LCD.

Tube ports let you join flexible or rigid 12 mm line without adaptors, which keeps the hydraulic path short and reduces leak points on test benches and dosing skids. The supplier table also lists a G1/2″ option, so confirm the port you need when ordering.

The body and rotor are PPS plastic with a 304 stainless shaft and NBR O-ring, working pressure is under 10 bar and it runs on 3V DC. Expect about ±1% in normal use.

Key features

12 mm tube connections, G1/2″ listed as an option
Flow range 0.1-10 L/min
PPS body and rotor, SS304 shaft, NBR O-ring
LCD display, 3V DC
Light enough to mount in-line on tubing

Where it works

This micro fuel flow meter fits engine test benches, fuel return monitoring on generators, chemical dosing on borehole and irrigation lines in the Limpopo Lowveld, and AdBlue dispensing on small fleets. It also suits workshops metering coolant and screen wash. If your fittings are threaded, the micro flowmeter with G1/2″ ports is the simpler choice, and for very low hourly flows use the micro flowmeter for 2-90 L/h. Compare every size in our flowmeter range.

What’s in the box

FS200DPF micro digital flowmeter, 12 mm tube ports

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days. The micro flowmeter ships at about 1 kg, which puts it in the up to 30 kg band (R550). Delivery is free on orders of R20,000 or more, so it is worth adding the rest of your fuel kit to the same order. Ask us for the warranty terms on this model.

Questions about this product

What is the difference between this and the G1/2" micro flowmeter?

Both are 10 L/min micro meters with PPS bodies and LCDs. This one has 12 mm tube ports for direct connection to small-bore tubing and reads from 0.1 L/min. The other model has G1/2" threads for screwed fittings. Pick the one that matches your pipework so you avoid extra adaptors and leak points.

Will it read diesel accurately at very low flow?

It is designed for low flows and reads from 0.1 L/min, with about ±1% accuracy in normal use. At the very bottom of the range, small air bubbles and pulsing pumps affect the reading most, so keep the line full and steady. Check it against a measuring cylinder at your working flow for critical tests.

Do you deliver to Hoedspruit, and what does it cost?

Yes. Our own trucks run from Polokwane to all nine provinces, normally in 1 to 3 days, and Hoedspruit is on the route. The micro flowmeter weighs about 1 kg packed, so on its own it falls in the up to 30 kg band (R550). Add enough to reach R20,000 including VAT and the whole order ships free.
