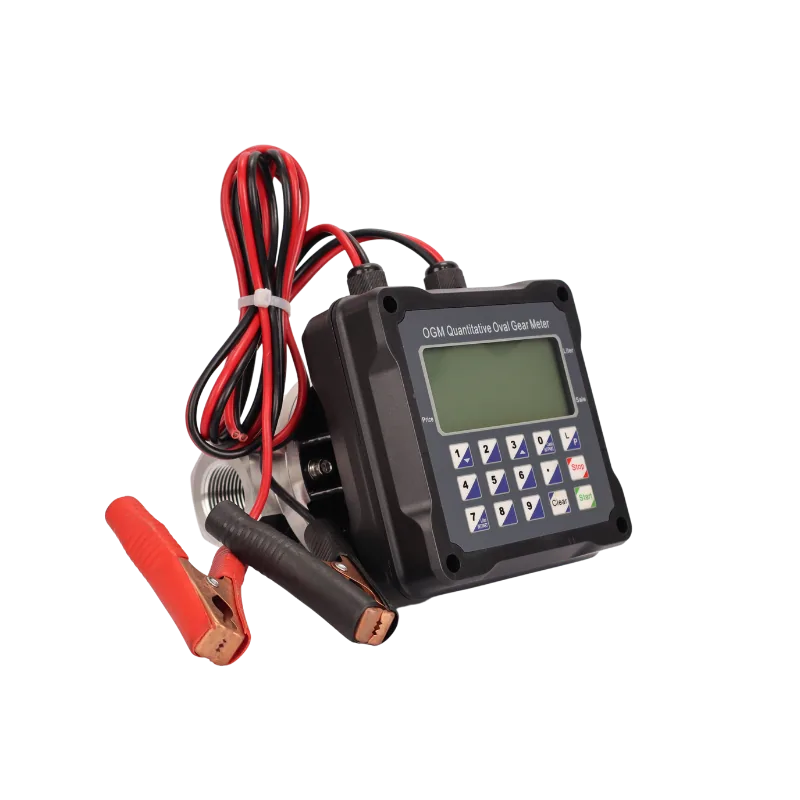

OGM-25 aluminium preset diesel flowmeter with 12V batch controller, 1 inch ports

OGM-25 Preset Diesel Flowmeter, 12V DC, 1″, Aluminium

Name: OGM-25 Preset Diesel Flowmeter, 12V DC, 1", Aluminium
SKU: KMN-FUEL-0100
Price: 2693.25 ZAR
Availability: InStock

SKU KMN-FUEL-0100

OGM-25 aluminium preset diesel flowmeter on 12V DC for 1" lines, for bowsers and service bakkies that fill set volumes, delivered nationwide.

R2 693,25

Set a volume, the meter signals at the target
Runs off a 12V vehicle battery
Flow range: 12-120 L/min
Connection: 1″ (DN25)
Accuracy: ±0.5%

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Meter type	Oval gear, positive displacement, preset
Flow range	12-120 L/min
Accuracy	±0.5%
Repeatability	0.03% or better
Connection size	1" (DN25)
Max pressure	3.4 MPa (34 bar) max
Max viscosity	1000 cP
Material	Aluminium base, plastic head
Display type	Preset batch controller with display
Power	12V DC
Fluid compatibility	Diesel, biodiesel, paraffin, light non-corrosive oils
Net weight	2.1 kg
Shipping weight	2.4 kg
Dimensions	160 × 140 × 150 mm

Description

Overview

The OGM-25 preset diesel flowmeter 12V is a 1″ aluminium oval-gear meter with a batch controller that runs from a vehicle battery. Enter the litres, start the pump, and it signals or cuts the pump at the target. It is the more affordable aluminium version of our stainless preset meter, meant for diesel and oils rather than AdBlue.

It forms part of our fuel dispensing equipment range. Pair it with the OGM-25 220V preset flowmeter or the OGM-40 mechanical flowmeter for a complete setup.

Key features

Preset batch controller on 12V DC
Aluminium oval-gear body for diesel and oils
12-120 L/min flow range
±0.5% accuracy, 0.03% repeatability
1″ (DN25) connections
Can switch a pump relay at the set volume

Where it works

Diesel bowsers servicing harvesters in the Free State use a preset diesel flowmeter 12V so each machine gets a fixed fill. Mobile refuellers on Rustenburg platinum mines and Mpumalanga coal sites fit it to service bakkies. Farmers running feed mill generators like it for predictable fills.

Fitting tip: put a strainer, and on bulk lines an air eliminator, in front of the meter so that debris and air do not upset the count. Have the controller output wired to the pump relay or a solenoid valve so it can actually stop the flow, then run a test batch into a calibrated measure and adjust the factor before the first real fill.

Oval-gear meters measure by displacement: every turn of the gears passes a fixed volume, so the reading holds steady whether the fluid is thin diesel or heavier oil, and the flow pattern in the pipe matters far less than it does with a turbine meter.

What’s in the box

OGM-25 preset flowmeter with 12V controller

Delivery and warranty

Our own trucks run from Polokwane to all nine provinces and most orders arrive in 1 to 3 days. The shipping weight is 2.4 kg, which falls in the up to 30 kg band at R550, and delivery is free once your order reaches R20,000. Ask us for the warranty terms on this model.

Questions about this product

Can I use it on AdBlue?

No. AdBlue corrodes aluminium, and this preset meter has an aluminium body. For AdBlue choose the stainless steel OGM-25 preset meter, which has the same controller and flow range. This aluminium model is meant for diesel, biodiesel, paraffin and light oils.

Will it stop my pump on its own?

It will if you wire the controller output to a relay that switches the pump, or to a solenoid valve in the line. Most auto electricians can do this in an hour. Without that wiring the meter still counts down and signals, and you switch the pump off yourself.

Can I run it off my bakkie?

Yes, that is what the 12V version is for. Take a fused feed from the battery, keep the cable run short, and earth it properly. If you need it on mains power in a fuel store, the 220V version has the same meter and preset functions.

Do you deliver to Lephalale, and what does it cost?

Yes. Kamano trucks leave Polokwane for all nine provinces and most orders land within 1 to 3 days. This item ships at 2.4 kg, which puts it in the up to 30 kg band at R550. If your total order is R20,000 or more (VAT incl.), delivery is free, so it pays to add fittings or a second meter to the same order.

Nationwide delivery from Polokwane

Delivered to all nine provinces in 1 to 3 days

We deliver the OGM-25 Preset Diesel Flowmeter, 12V DC, 1", Aluminium with our own trucks to Johannesburg, Pretoria, Cape Town, Durban, Gqeberha, Bloemfontein, Polokwane, Mbombela, Richards Bay, Tzaneen, Secunda, Thohoyandou, East London and George, and to farms, mines and sites in between. This item ships in the R550 delivery band (up to 30 kg). Orders of R20,000 or more deliver free with code KH027.
