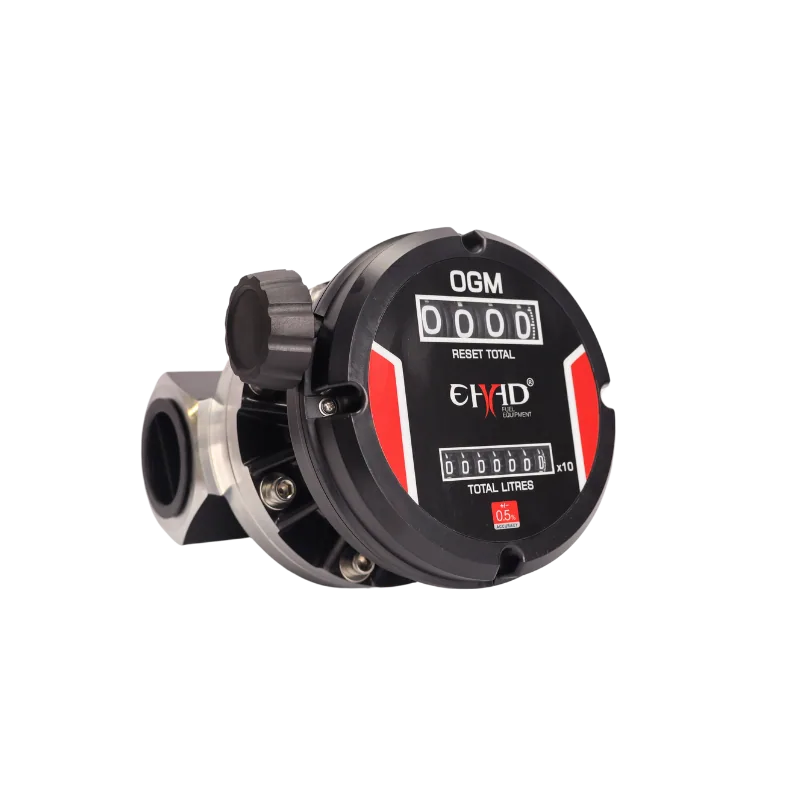

OGM-40 1.5 inch mechanical oval-gear flowmeter with roller register, 25-250 L/min

OGM-40 Mechanical Flowmeter, 1.5″, 25-250 L/min, Roller Register

Name: OGM-40 Mechanical Flowmeter, 1.5", 25-250 L/min, Roller Register
SKU: KMN-FUEL-0105
Price: 3071.25 ZAR
Availability: InStock

SKU KMN-FUEL-0105

A 1.5" oval-gear flowmeter with a mechanical roller register for diesel and light oils, needing no battery or power, delivered across South Africa.

R3 071,25

No battery and no power supply: the roller register works on flow alone
Resettable batch counter plus cumulative total for stock control
Flow range 25 to 250 L/min through 1.5″ (DN40) ports
Aluminium alloy body, rated to 1.8 MPa

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Flow range	25-250 L/min
Accuracy	±0.5%
Repeatability	≤0.03%
Connection size	1.5" (DN40)
Max pressure	1.8 MPa (18 bar)
Max viscosity	1000 cP
Material	Aluminium alloy body
Display type	Mechanical roller register (resettable batch + cumulative total)
Meter type	Oval gear, positive displacement
Power	None required (flow driven)
Fluid compatibility	Diesel, biodiesel, kerosene, paraffin and light non-corrosive oils
Net weight	3.5 kg
Shipping weight	3.8 kg
Dimensions	235 × 200 × 180 mm

Description

Overview

The OGM-40 mechanical flowmeter is a 1.5″ oval-gear meter that counts diesel, biodiesel, kerosene and paraffin through a roller register, with no battery and no electrics. If your bowser, tank stand or fuel bay is out in the veld and load-shedding is a fact of life, this is the meter that keeps counting.

Two rotating oval gears trap a fixed volume of fuel on every turn, and the register shows it on a resettable batch counter and a cumulative total. Accuracy is ±0.5% with repeatability of 0.03% or better, which is good enough for stock control and for checking drivers against the dip. For trade use, calibrate it on site against a proven measure.

Shopping for a mechanical diesel flowmeter 1.5 inch in South Africa? Browse the full range of flowmeters, or compare this model with the OGM-40 electronic diesel flowmeter and the OGM-50 mechanical flowmeter.

Key features

Mechanical roller register, no battery to replace
Resettable batch total and non-resettable cumulative total
Positive displacement oval gears, ±0.5% accuracy
25 to 250 L/min through 1.5″ (DN40) connections
Handles viscosities up to 1000 cP

Where it works

On Limpopo and Free State farms the OGM-40 sits on the delivery line from the main tank to the tractor and bakkie bay. Contractors use it on diesel trailers to account for fuel by machine, and mine workshops and transport depots in Mpumalanga and Gauteng fit it where a simple, tough counter beats electronics. It is for diesel, kerosene and light oils only, not petrol.

What’s in the box

OGM-40 mechanical flowmeter with roller register

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, and delivery is free on orders of R20,000 or more (VAT incl.). The shipping weight of this unit is 3.8 kg. Order your mechanical diesel flowmeter 1.5 inch online and we dispatch from Polokwane. Ask us for the warranty terms on this model.

Questions about this product

How accurate is the OGM-40 mechanical flowmeter?

Accuracy is ±0.5% with repeatability of 0.03% or better. That suits stock control and driver accountability. For trade or custody transfer, calibrate it on site against a proven measure, because installation and fluid viscosity shift the reading slightly.

Does this meter need a battery or power?

No. The mechanical roller register is driven by the fuel flowing through the oval gears, so there is nothing to charge or replace. That makes it a good fit for remote farm tanks and sites hit by load-shedding.

Can I use it for petrol?

No. This is a standard meter for diesel, biodiesel, kerosene, paraffin and light non-corrosive oils. For petrol you need an explosion-proof unit, so contact us and we will advise.

Do you deliver to a farm or mine outside the big centres?

Yes. We deliver with our own trucks from Polokwane to all nine provinces in 1 to 3 days, including farms and mine sites. At a shipping weight of 3.8 kg this meter falls in the up to 30 kg band, so delivery is R550, and free on orders of R20,000 or more (VAT incl.).
