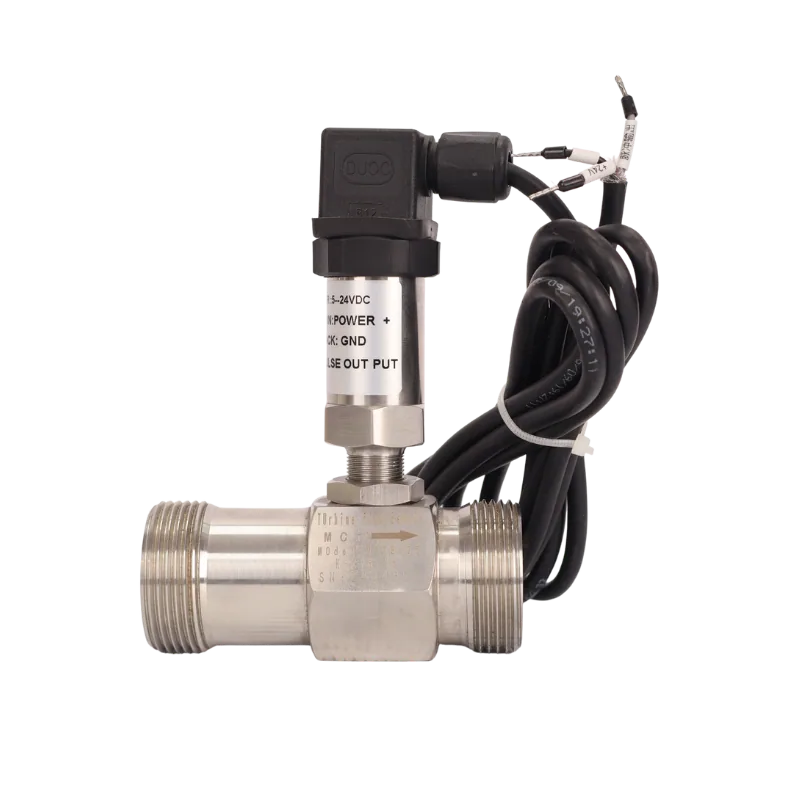

Explosion-proof turbine flowmeter sensor for fuel and oil, 1 to 10 m3/h, IP67 housing

Explosion-Proof Turbine Flowmeter, 1-10 m³/h, 5-24V DC, IP67

Name: Explosion-Proof Turbine Flowmeter, 1-10 m³/h, 5-24V DC, IP67
SKU: KMN-FUEL-0119
Price: 4205.25 ZAR
Availability: InStock

SKU KMN-FUEL-0119

A compact Ex-rated turbine flowmeter that feeds fuel flow data to a controller in hazardous areas, for plants, depots and mines, delivered from Polokwane.

R4 205,25

Reports flow to a PLC or display in a flammable zone
Sealed to IP67 against dust and washdown
Range 1 to 10 m³/h (about 17 to 167 L/min)
5 to 24V DC supply, Ex d IIB T4 as stated by the maker

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Meter type	Turbine flow sensor / transmitter
Flow range	1 to 10 m³/h (about 17 to 167 L/min)
Accuracy	±0.5% (manufacturer figure)
Connection size	On request (versions for 15 to 200 mm pipe listed)
Max pressure	On request
Material	On request
Display type	On request (signal output; confirm 4-20 mA/RS485 or pulse)
Power supply	5 to 24V DC
Ex rating	Ex d IIB T4 (as stated by the manufacturer)
Ingress protection	IP67
Net weight	0.9 kg
Shipping weight	1 kg
Dimensions	100 × 40 × 140 mm

Description

Overview

This explosion proof turbine flowmeter measures the flow of light fuels and oils between 1 and 10 m³/h and sends the reading to a controller, display or data logger. A free-spinning rotor turns at a speed in proportion to flow, and the sealed electronics convert that into a signal. The housing is flameproof, so the meter can sit inside a zone where fuel vapour may be present.

It is a sensor rather than a dispensing meter, so it suits automation and monitoring more than handing out fuel to vehicles. For a mechanical dispensing meter look at the OGM-50 mechanical flowmeter, or the OGM-50 electronic flowmeter if you want a local LCD.

Key features

Turbine rotor for fast response on light fluids
Ex d IIB T4 flameproof housing (manufacturer’s stated rating)
IP67 sealing for outdoor and washdown sites
Runs on a 5 to 24V DC supply
Small and light at about 0.9 kg

Where it works

Typical uses are additive dosing at fuel depots, burner fuel monitoring on boilers and dryers, and generator day-tank feeds on mines. Plants in Secunda and Sasolburg, and processing sites in KZN, fit this kind of explosion proof turbine flowmeter where vapour zones rule out ordinary electronics. Ask for the Ex certificate and match it to your zone classification before installing. See our other flowmeters for dispensing meters.

What’s in the box

Ex-rated turbine flowmeter

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces, normally within 1 to 3 days. The meter ships at 1 kg, which falls in the up-to-30 kg band at R550. Tell us your pipe size and the signal your controller needs when you order. Orders of R20,000 or more (VAT incl.) travel free. Ask us for the warranty terms on this model.

Questions about this product

What output signal does it give?

The manufacturer lists both a 4-20 mA / RS485 version and a pulse version, so we confirm the output before dispatch. Tell us what your PLC, display or logger accepts and we will make sure the meter matches. Getting this right first saves rewiring on site.

Can I use it to dispense diesel into vehicles?

It is better suited to monitoring than dispensing. It has no built-in totaliser for a driver to read, so it needs a controller or display. For filling vehicles or bowsers, an oval-gear meter with its own register is simpler and easier to check by eye.

Is it safe for a petrol pump room?

The manufacturer states an Ex d IIB T4 flameproof rating, which covers many fuel vapour zones. Ask us for the certificate and have your electrician confirm it matches the zone classification and gas group on your site before installing. Cable glands and wiring must also be Ex-rated to keep the protection intact.

How much is delivery?

The meter ships at 1 kg, in the up-to-30 kg band at R550 to any town in South Africa. Our own trucks run from Polokwane and usually arrive in 1 to 3 days. If you add it to an order worth R20,000 or more including VAT, delivery is free.
