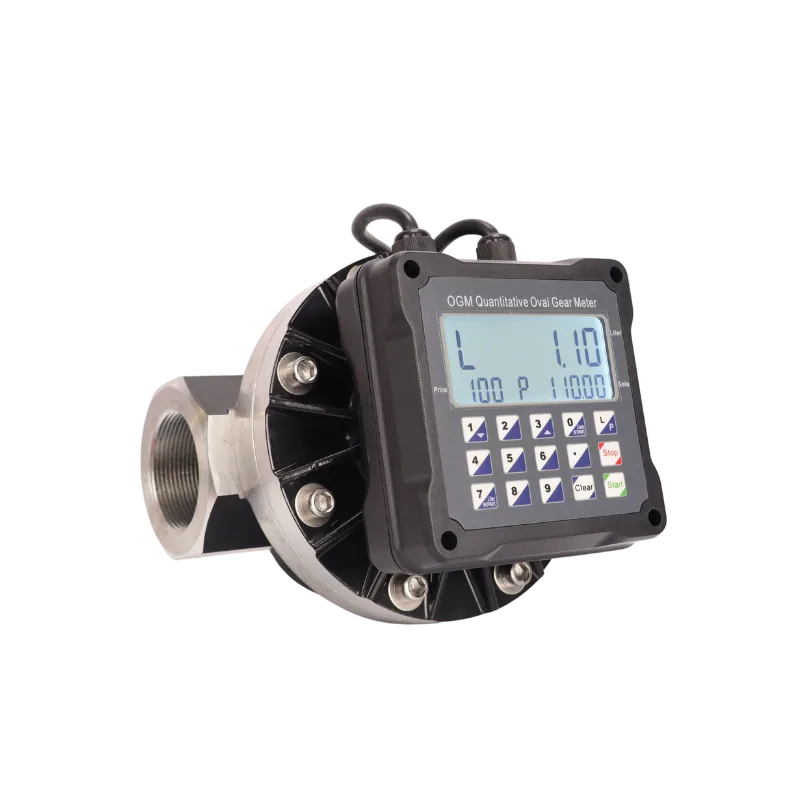

OGM-50 2 inch preset oval-gear flowmeter with 220V AC batch controller

OGM-50 Preset Flowmeter, 220V AC, 2″, 30-300 L/min

Name: OGM-50 Preset Flowmeter, 220V AC, 2", 30-300 L/min
SKU: KMN-FUEL-0112
Price: 4621.05 ZAR
Availability: InStock

SKU KMN-FUEL-0112

A 2" oval-gear preset flowmeter on 220V AC mains for high-flow batch fuelling at up to 300 L/min, delivered across South Africa.

R4 621,05

Mains powered at 220V AC for fixed fuel bays and loading lines
Dial in a target volume and the meter signals at the set quantity
Flow range 30 to 300 L/min through 2″ (DN50) ports
Aluminium alloy body, ±0.5% accuracy

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Flow range	30-300 L/min
Accuracy	±0.5%
Repeatability	≤0.03%
Connection size	2" (DN50)
Max pressure	1.8 MPa (18 bar)
Max viscosity	1000 cP
Material	Aluminium alloy body
Display type	Preset batch controller (dial a target volume; meter signals at set quantity)
Meter type	Oval gear, positive displacement
Power	220V AC
Fluid compatibility	Diesel, biodiesel, kerosene, paraffin and light non-corrosive oils
Net weight	6.1 kg
Shipping weight	6.5 kg
Dimensions	210 × 180 × 220 mm

Description

Overview

The OGM-50 220V preset flowmeter is a 2″ oval-gear meter with a batch controller powered from 220V AC mains. You dial in the litres and it signals when that quantity has been dispensed. It is built for fixed installations such as depot loading lines and bulk fuel stores, where throughput matters.

Positive displacement gears measure to ±0.5% with repeatability of 0.03% or better, across 30 to 300 L/min. The controller counts down against the preset and gives a signal at the set quantity, which you wire to your pump contactor or a solenoid valve. Calibrate on site if you need trade-grade accuracy.

Shopping for a 2 inch preset flowmeter 220v in South Africa? Browse the full range of flowmeters, or compare this model with the OGM-50 12V preset flowmeter and the air eliminator for bulk meters.

Key features

Preset batch controller on 220V AC
Signals when the set volume is reached
30 to 300 L/min through 2″ (DN50) connections
Oval-gear metering, ±0.5% accuracy
Aluminium alloy body rated to 1.8 MPa

Where it works

Fuel distributors in Gauteng and KZN use presets on tanker loading lines, and transport depots in Limpopo and Mpumalanga use them to issue a set diesel fill per truck. Large grain farms in the Free State and municipal depots with a mains-fed tank use them to keep issue repeatable and recorded. Diesel and light oils only, not petrol.

What’s in the box

OGM-50 preset flowmeter with 220V controller

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, and delivery is free on orders of R20,000 or more (VAT incl.). The shipping weight of this unit is 6.5 kg. Order your 2 inch preset flowmeter 220v online and we dispatch from Polokwane. Ask us for the warranty terms on this model.

Questions about this product

Is this the mains or the 12V preset flowmeter?

This is the 220V AC mains version of the OGM-50 preset. If your pump runs off a vehicle or solar battery, choose the 12V DC version. Tell us your supply and we will confirm which suits you.

Can it control a pump automatically?

It signals when the preset quantity is reached, and you use that signal in your own switching circuit to stop the pump or close a valve. It does not switch the pump directly, so budget for a contactor or valve.

Can I use it for petrol?

No. This is a standard meter for diesel, biodiesel, kerosene, paraffin and light non-corrosive oils. For petrol you need an explosion-proof unit, so contact us and we will advise.

Do you deliver to a farm or mine outside the big centres?

Yes. We deliver with our own trucks from Polokwane to all nine provinces in 1 to 3 days, including farms and mine sites. At a shipping weight of 6.5 kg this meter falls in the up to 30 kg band, so delivery is R550, and free on orders of R20,000 or more (VAT incl.).

Nationwide delivery from Polokwane

Delivered to all nine provinces in 1 to 3 days

We deliver the OGM-50 Preset Flowmeter, 220V AC, 2", 30-300 L/min with our own trucks to Johannesburg, Pretoria, Cape Town, Durban, Gqeberha, Bloemfontein, Polokwane, Mbombela, Pietermaritzburg, Klerksdorp, Kimberley, Rustenburg, East London and Secunda, and to farms, mines and sites in between. This item ships in the R550 delivery band (up to 30 kg). Orders of R20,000 or more deliver free with code KH027.
