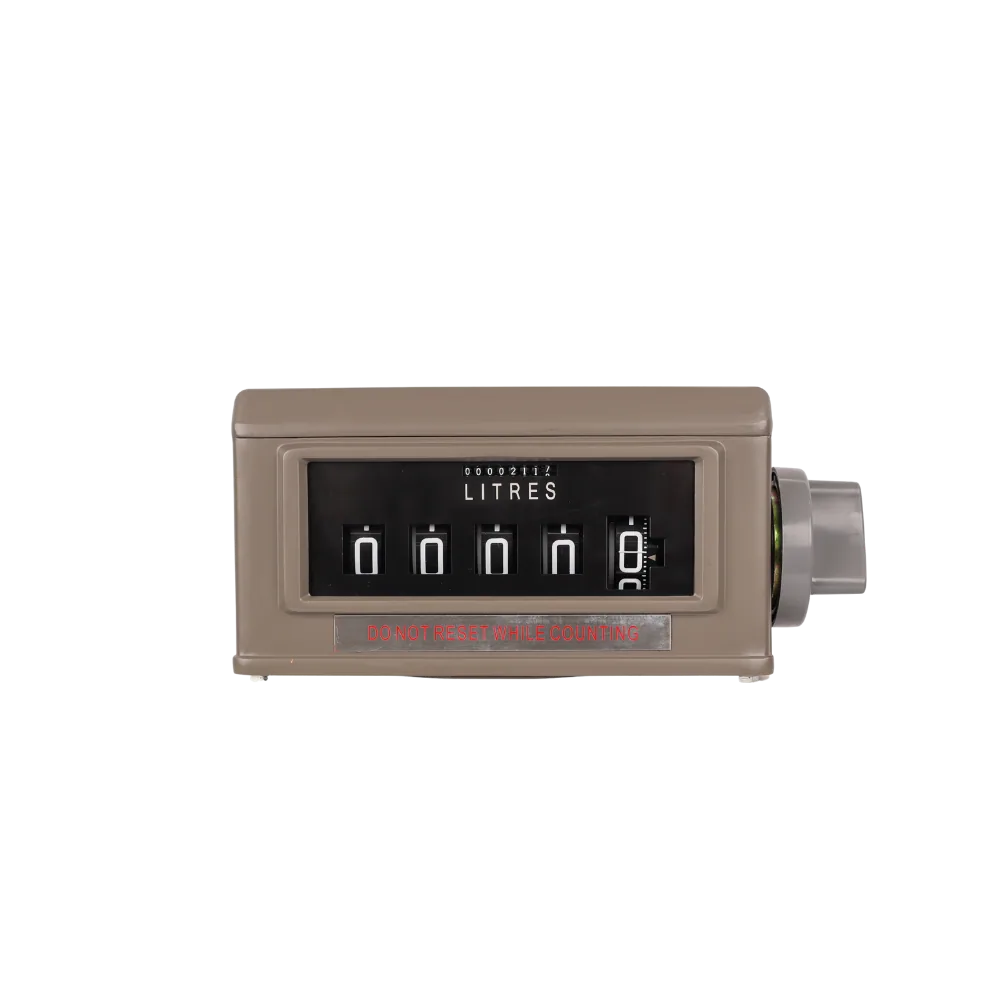

Mechanical register head with gear plate for M-40, M-50 and M-80 bulk flowmeters

Mechanical Register with Gear Plate for M-40, M-50 and M-80 Meters

Name: Mechanical Register with Gear Plate for M-40, M-50 and M-80 Meters
SKU: KMN-FUEL-0085
Price: 5339.25 ZAR
Availability: InStock

SKU KMN-FUEL-0085

A replacement litre-reading register head with gear plate for M-40, M-50 and M-80 bulk flowmeters, delivered from Polokwane to all nine provinces.

R5 339,25

Brings a damaged or worn M-series meter back into service
Fits M-40, M-50 and M-80 meters (BT-M40R, M50R, M80R)
5-digit reset counter plus a non-resettable totaliser
Gear plate included, no power needed

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Part type	Mechanical register head
Codes	BT-M40R, BT-M50R, BT-M80R
Fits	M-40, M-50 and M-80 bulk flowmeters
Display type	Mechanical 5-digit reset counter plus totaliser
Flow range	N/A (register)
Accuracy	N/A (set by the meter body)
Connection size	N/A (bolts to meter body)
Max pressure	N/A (register)
Material	Aluminium alloy housing
Net weight	4 kg
Shipping weight	5.5 kg
Dimensions	290 × 220 × 150 mm

Description

Overview

This bulk flowmeter register is the mechanical counter head for the M-40, M-50 and M-80 meters, supplied with its gear plate. It sits on top of the meter body and shows each delivery on a 5-digit reset counter, with a totaliser alongside that keeps the running figure for stock control.

Registers take the knocks on a working site: a dropped hose nozzle, a cracked window, water in the works or a worn drive. Replacing the head brings the meter back into service without buying a whole new meter body.

It runs purely mechanically, so it suits tankers, bowsers and remote tanks where there is no power. At 4 kg it is a simple bench or on-site swap.

Key features

Mechanical 5-digit reset counter
Separate totaliser that cannot be zeroed
Gear plate supplied with the head
Fits M-40, M-50 and M-80 meter bodies
No power or batteries required

Where it works

Keep a bulk flowmeter register in stock if you run M-series meters on road tankers, farm co-op depots in Limpopo and the Free State, mine diesel bays or municipal fleet yards. A spare head on the shelf turns a broken counter into a quick swap instead of a week out of service. For the M-100 meter, use the M-100 decalitre mechanical register, and if you want printed dockets, choose the mechanical register with ticket printer. More spares are in our flowmeter range.

What’s in the box

Mechanical register head
Gear plate

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days. The register ships at about 5.5 kg, which puts it in the up to 30 kg band (R550). Delivery is free on orders of R20,000 or more, so it is worth adding the rest of your fuel kit to the same order. Ask us for the warranty terms on this model.

Questions about this product

Do I need to recalibrate after fitting a new register?

Yes, check it. The register only counts what the meter body tells it, but any change in the drive can shift the reading slightly. After fitting, run a known volume into a proving can or use a calibrator, and adjust the meter if needed. Record the result if you use the meter for sales.

Which code do I order for my meter?

Tell us whether your meter is an M-40, M-50 or M-80 and we will send the matching register: BT-M40R, BT-M50R or BT-M80R. The nameplate on the meter body shows the model. If the plate is missing, measure the pipe connection size, 1.5", 2" or 3", and we will work it out.

Do you deliver to Modimolle, and what does it cost?

Yes. Our own trucks run from Polokwane to all nine provinces, normally in 1 to 3 days, and Modimolle is on the route. The register weighs about 5.5 kg packed, so on its own it falls in the up to 30 kg band (R550). Add enough to reach R20,000 including VAT and the whole order ships free.
